Chapter 3
3-21

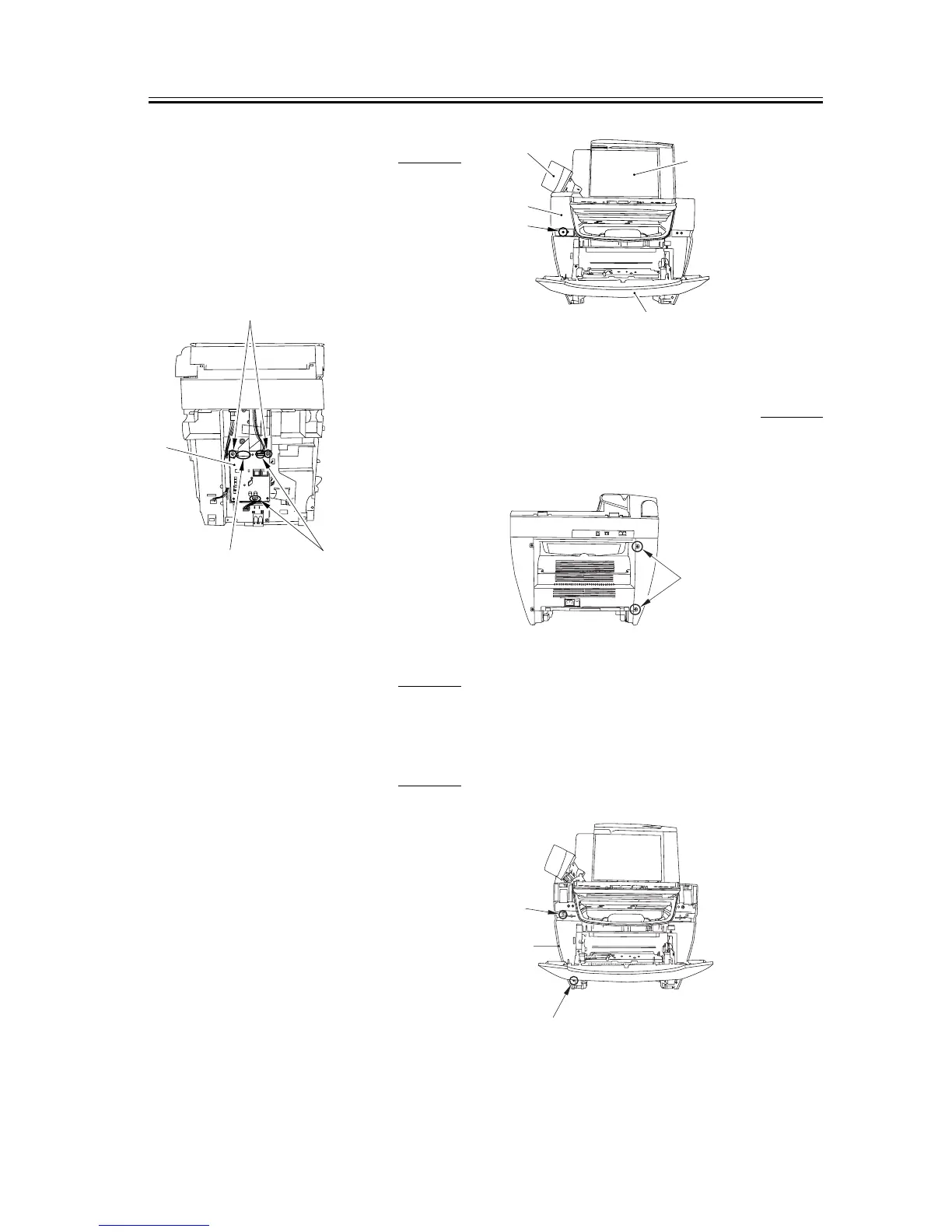

3.1.12.4 Removing the NCU
Board
0005-9796
1) Remove the two connectors [1] and the flat cable
[2].
2) Remove the two screws [3] and remove the NCU
board [4].
F-3-86
3.1.13 Modular Board
3.1.13.1 Removing the Cassette 0006-2973
1) Remove the cassette by holding the cassette handle.
3.1.13.2 Removing the Reader
Left Front Cover
0006-2974
1) Open the platen glass cover [1].
2) Open the front cover [2] and the ADF part [3],
remove one screw [4], and remove the reader left
front cover [5].
F-3-87
3.1.13.3 Removing the Left
Cover
0006-2976
1) Remove the two screws [1] on the back side.
F-3-88
2) Remove the front screw [1] and then remove the
claw [2].
3) Slightly lift up the left side of the unit and remove
the cover as if you were opening the bottom side of
the left cover [3].
F-3-89
[1][2]
[4]
[3]
[1]
[5]
[4]
[3]
[2]
[1]
[1]
[3]
[2]
To Next Page
