Canon LaserBase MF5600 - Removing the NCU Board and Modular Board; Removing the NCU Case; Removing the Rear Cover

Chapter 3
3-27

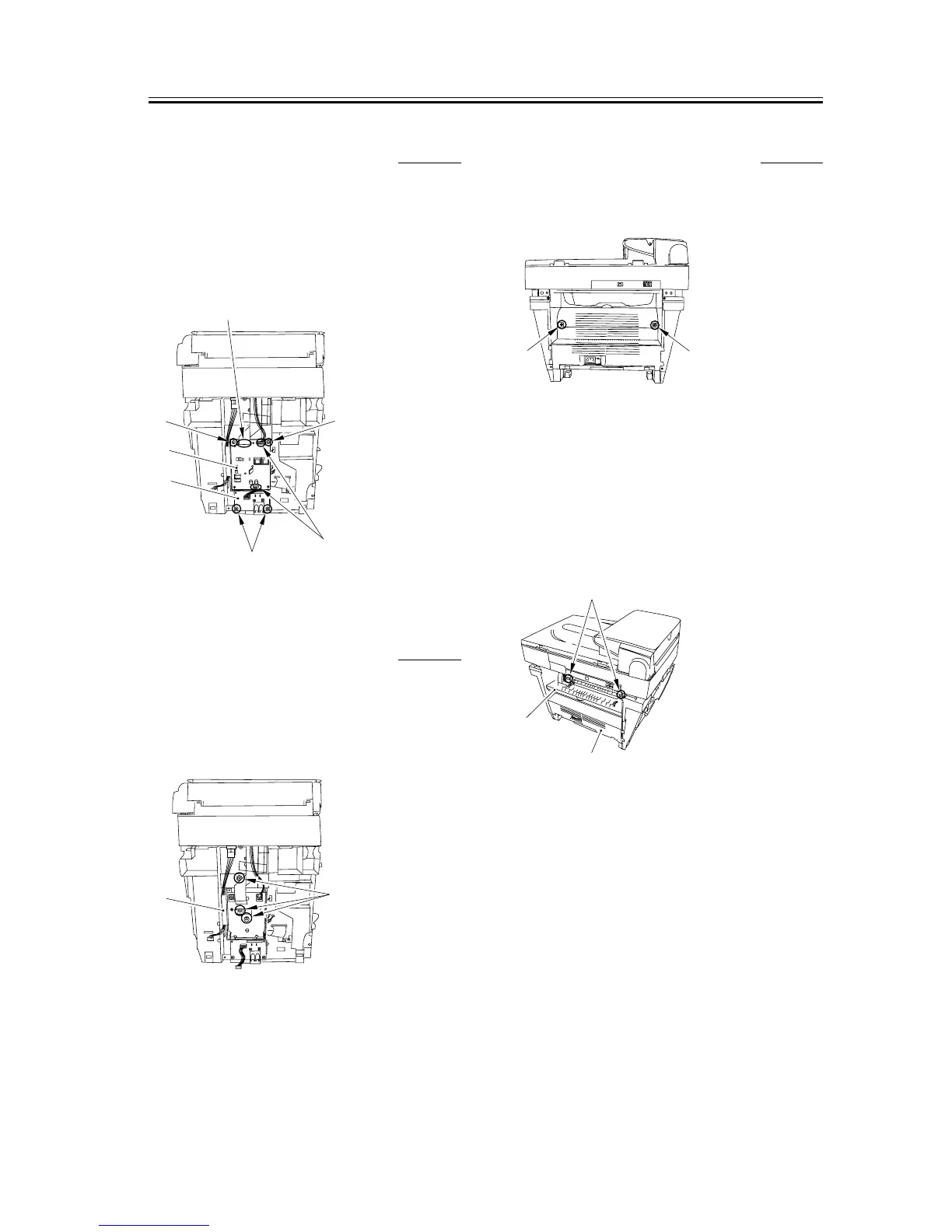

3.1.15.6 Removing the NCU
Board and Modular Board
0005-9924
1) Remove the two connectors [1] and the flat cable
[2].
2) Remove the four screws [3] and remove the NCU
board [4] and modular board [5].
F-3-112
3.1.15.7 Removing the NCU
Case
0005-9925
1) Remove the three screws [1]; then, pull the upper
portion of the NCU case [2] toward you, and lifting
it upward, remove the NUC case.
F-3-113
3.1.15.8 Removing the Rear
Cover
0002-7506
1) Remove two screws [1].
F-3-114
2) Opening the face-up cover [1], and then lower the
fixing pressure release levers [2] on both sides and
release the pressure.
3) Remove the rear cover [3] as you slide it toward the
rear.
F-3-115
[1]
[4]
[3]
[3]
[2]
[5]
[3]
[1]
[2]
[1]
[1]
[1]
[3]
[2]
