1.2.3 Scanning Range (Transmission)
0007-2708
F-1-1
T-1-3
T-1-4

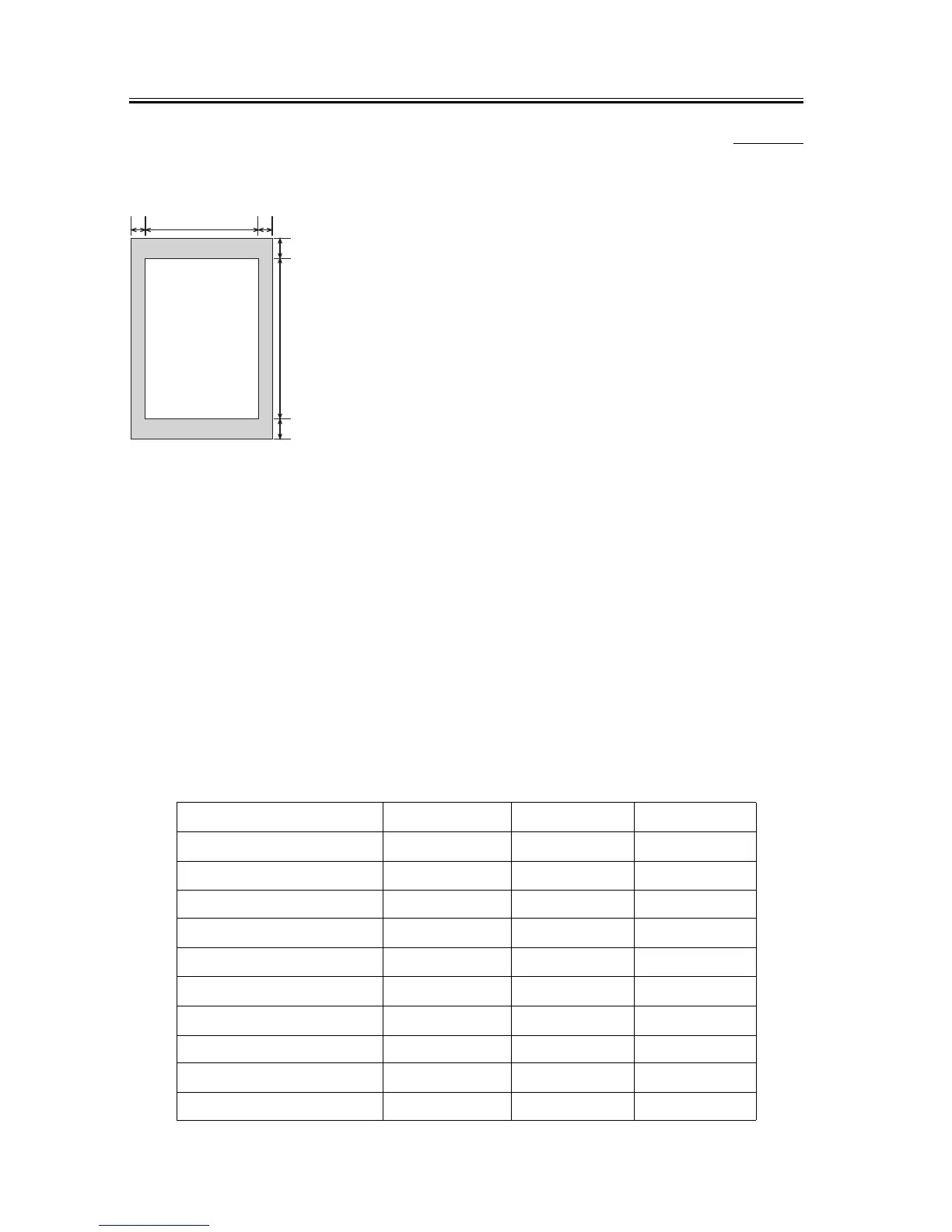

[1] Document leading edge [6] Effective scanning length
[2] Left margin [7] Bottom margin
[3] Effective scanning width [8] Scanning drop out range
[4] Right margin [9] Scanning range
[5] Top margin [10] Document trailing edge
Item A4
Letter Legal
Effective scanning width
208 +3.1/-3.1 mm 214 +3.2/-3.2 mm 214 +3.2/-3.2 mm
Effective scanning length (Book)
291 +6.0/-6.0 mm 273.4 +6.0/-6.0 mm -
Effective scanning length (ADF)
291 +6.0/-6.0 mm 273.4 +6.0/-6.0 mm 349 +6.0/-6.0 mm
Left margin
1.0 +2.0/-2.0 mm 1.0 +2.1/-2.1 mm 1.0 +2.1/-2.1 mm
Left margin (ADF)
1.0 +3.5/-3.5 mm 1.0 +3.6/-3.6 mm 1.0 +3.6/-3.6 mm
Right margin
1.0 mm 1.0 mm 1.0 mm
Top margin (Book)
3.0 +3.0/-3.0 mm 3.0 +3.0/-3.0 mm -
Top margin (ADF)
3.0 +3.0/-3.0 mm 3.0 +3.0/-3.0 mm 3.0 +3.0/-3.0 mm
Bottom margin (Book)
3.0 +3.0/-3.0 mm 3.0 +3.0/-3.0 mm -
Bottom margin (ADF)
3.0 +3.0/-3.0 mm 3.0 +3.0/-3.0 mm 3.0 +3.0/-3.0 mm
[9]
[8]
[4][2]
[5]
[7]
[3]
[6]
[1]
[10]
