Chapter 3
3-34
2) Remove the front screw [1] and then remove the
claw [2].
3) Slightly lift up the left side of the unit and remove
the cover as if you were opening the bottom side of
the left cover [3].

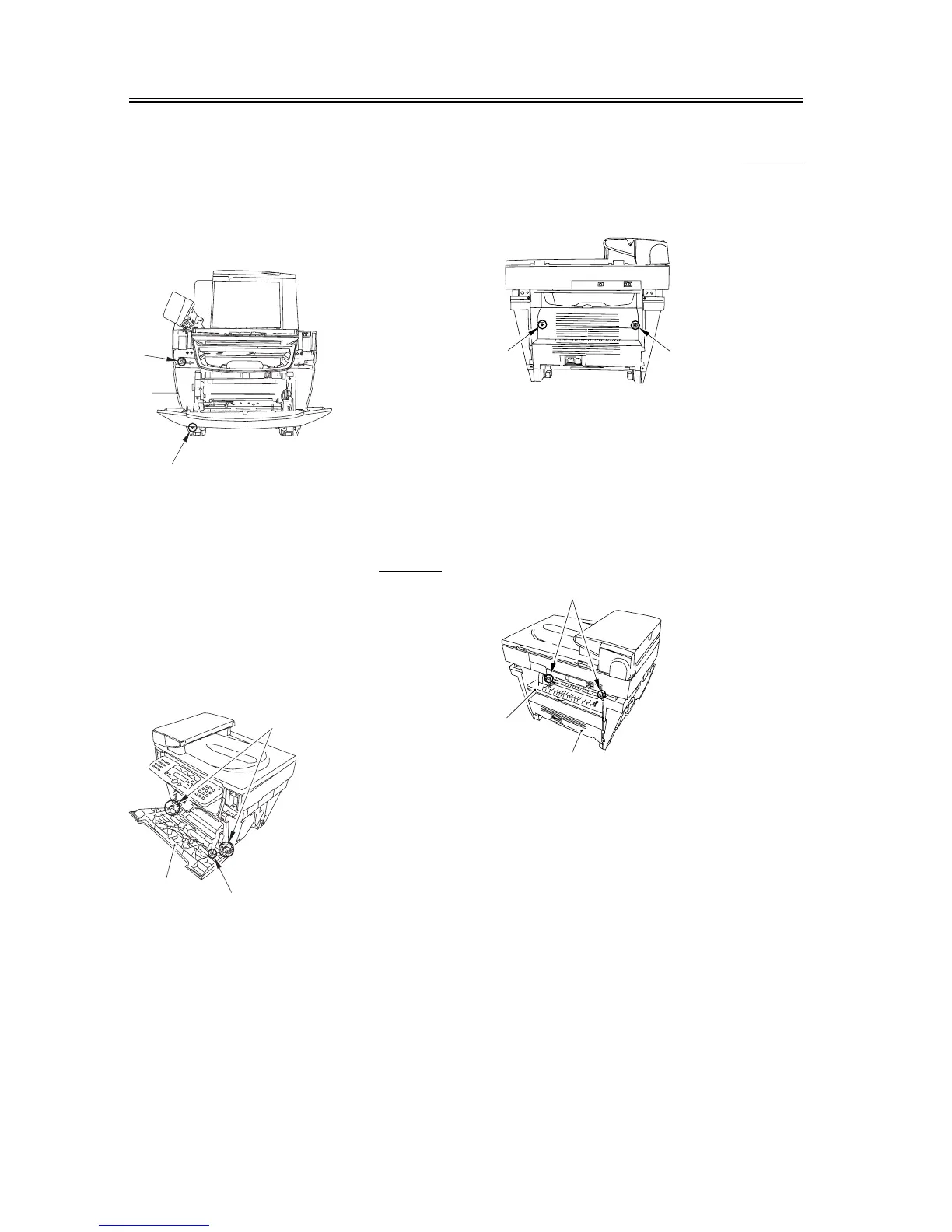

F-3-145
3.1.17.6 Removing the Front
Cover
0002-7621
1) Remove the arm claws [1] to disengage the
connection.
2) Remove the shafts on both sides [2] and remove the
front cover [3].
F-3-146
3.1.17.7 Removing the Rear
Cover
0002-7623
1) Remove two screws [1].
F-3-147
2) Opening the face-up cover [1], and then lower the
fixing pressure release levers [2] on both sides and
release the pressure.
3) Remove the rear cover [3] as you slide it toward the
rear.
F-3-148
[1]
[3]
[2]
[1]
[2]
[3]
[1]
[1]
[1]
[3]
[2]
