Canon LaserBase MF5600 - Page 151

Chapter 3
3-95
3.5.7.8 Removing the Gear Unit 0002-7601
1) Remove the 2 screws [1], and detach the drive plate
(small) [2].

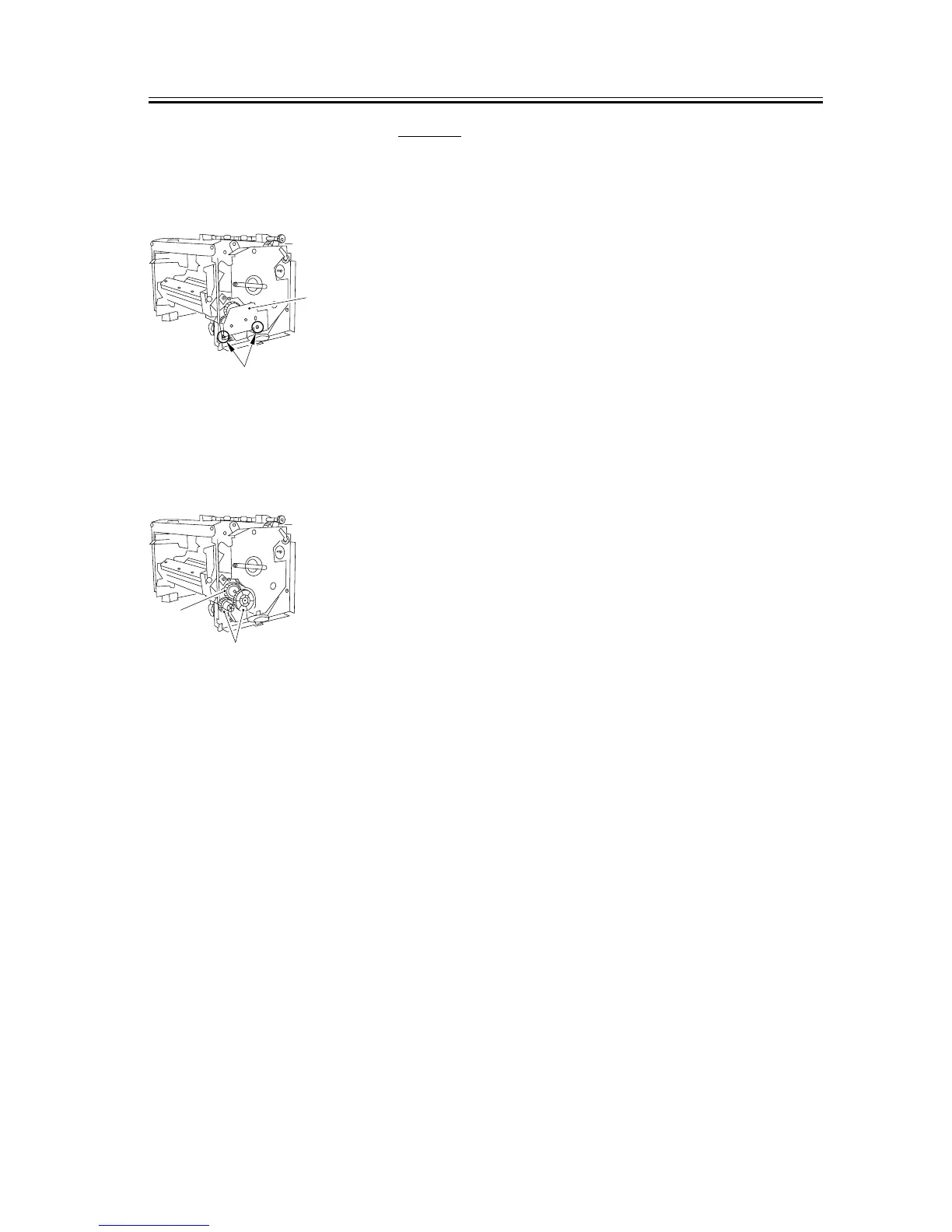

F-3-410
2) Remove the 2 gears [1].
3) While freeing the claw, detach the gear unit [2].
F-3-411
[2]
[1]
[2]
[1]
