Wiring sensors to the TV-VAVB3-E2's inputs

Wiring a remote occupancy sensor

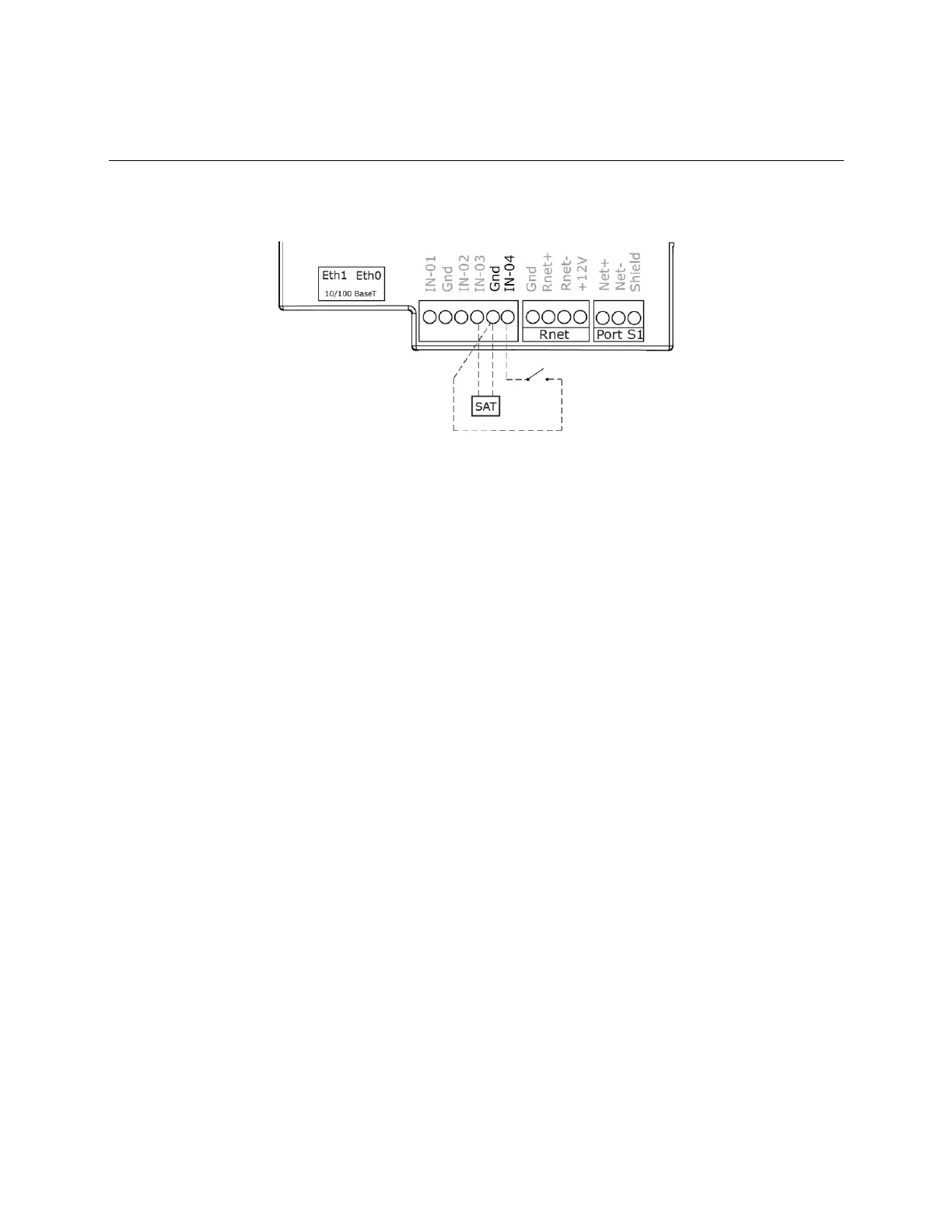

You can wire a normally open or normally closed dry-contact occupancy sensor to the TV-VAVB3-E2's IN-04 input

and Gnd terminals as shown below. The controller supplies the voltage needed for the input.
