Carrier TruVu VAVB3-E2 - Wiring a Field-Supplied High-Torque Actuator to the Analog Output

Wiring equipment to the TV-VAVB3-E2's outputs
TruVu™ VAVB3-E2 CARRIER CORPORATION ©2022
Installation and Start-up Guide All rights reserved
54
Wiring a field-supplied high-torque actuator to the analog output
You can wire one of the following Belimo actuators to the TV-VAVB3-E2's analog output instead of using the
controller's built-in, 45 in.-lb (4 Nm) actuator.
NMX24-MFT P-10028
90 in.-lb (10 Nm) actuator with 0–10 Vdc control and 0–10 Vdc feedback
AMX24-MFT P-10028
180 in.-lb (20 Nm) actuator with 0–10 Vdc control and 0–10 Vdc feedback
1 Install the actuator according to the manufacturer's instructions.

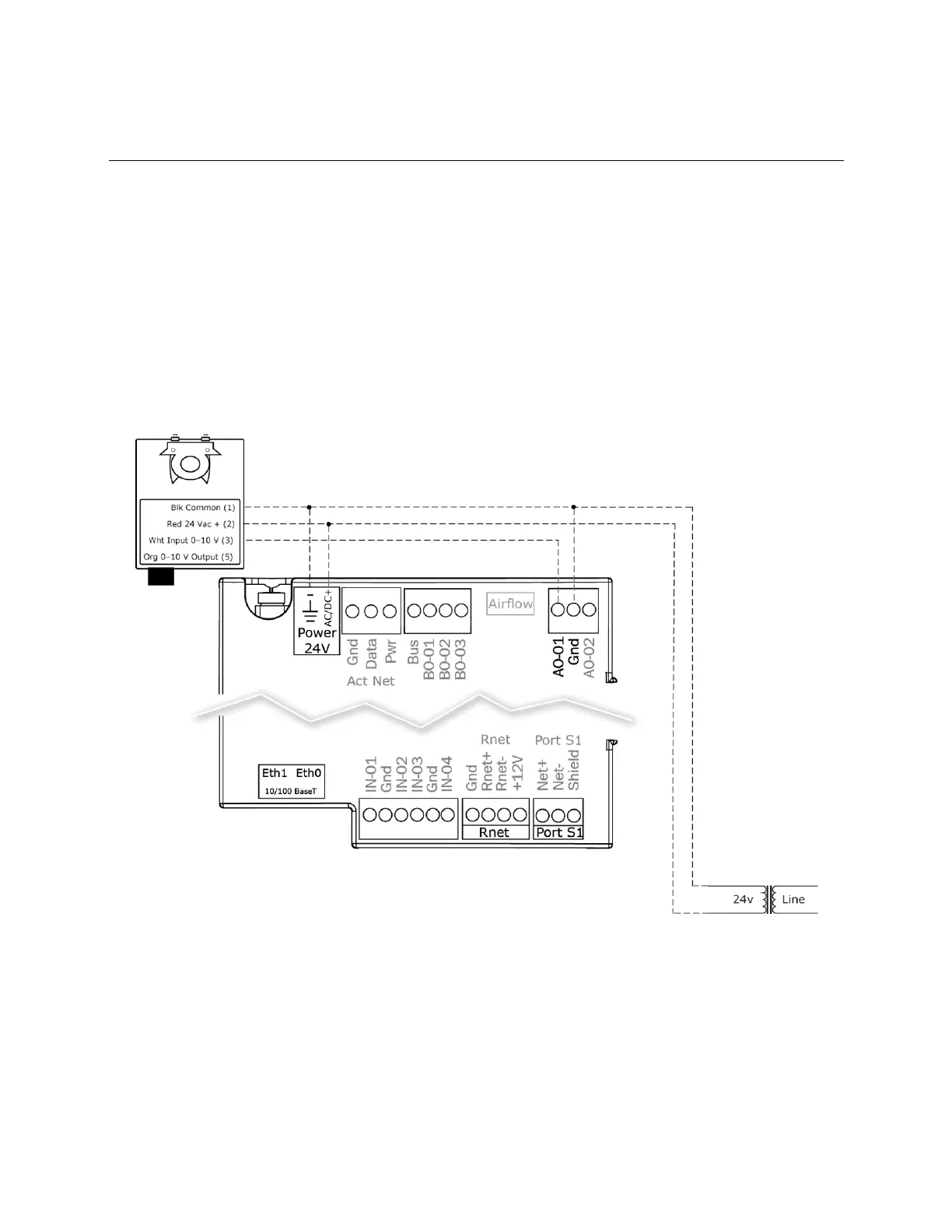

2 Wire the actuator to the controller using the diagram below.
NOTE For proper operation and to prevent damage to the devices, use the same polarity for the actuator's power
and the TV-VAVB3-E2's power.
