Paragraph 114
CASE/iNTERNATiONAL
tor Ib aid in accurate instaUation of the pinion main-
shaft, a single figure is stamped on the top face of
the upper pto shaft boss as shown in Fig. 123. The
single figure indicates (in inches) the variation from
distance (A—Fig. 122) in steps of 0.001 inch (0.025
mm).
When distance (A) is smaller, a minus sign wUl
be shown in front of single figure. Add or subtract
the single figure to the approximate distance 6.600
inches (167.64 mm). The pinion cone mounting dis-
tance (B) is marked (in inches) on the rear face of the
pinion as shown in Fig. 127 and shows the distance
this face must be from center Une of differential. The
distance will be approximately 4.410 inches (112.01
mm).
Stand pinion shaft on a flat surface. See Fig.
128.
Measure distance from pinion face to the bear-
ing housing mounting face. This is distance (C—Fig.
122).
Add distance (C) to the marked figure on pin-
ion face (distance B) and subtract from the resulting
(distance
A).
The final figure is the correct thickness
of shims (10—Fig. 126) to be instaUed for correct pin-
ion mainshaft position.
The balance of reassembly is the reverse of disas-
sembly procedures.
TRANSFER LUBE PUMP
Aii Models
114.
REMOVE AND REINSTALL. The transfer
lube pump is located below the reverse idler gear in
range gearbox. The pump furnishes oil for lubricat-
ing the speed transmission mainshaft and syrichroniz-
ers and the ring gear and pinion.
Ib remove the transfer pump, first remove all oth-
er range transmission components as outlined in
paragraphs HI, 112 and 113. Then, disconnect and

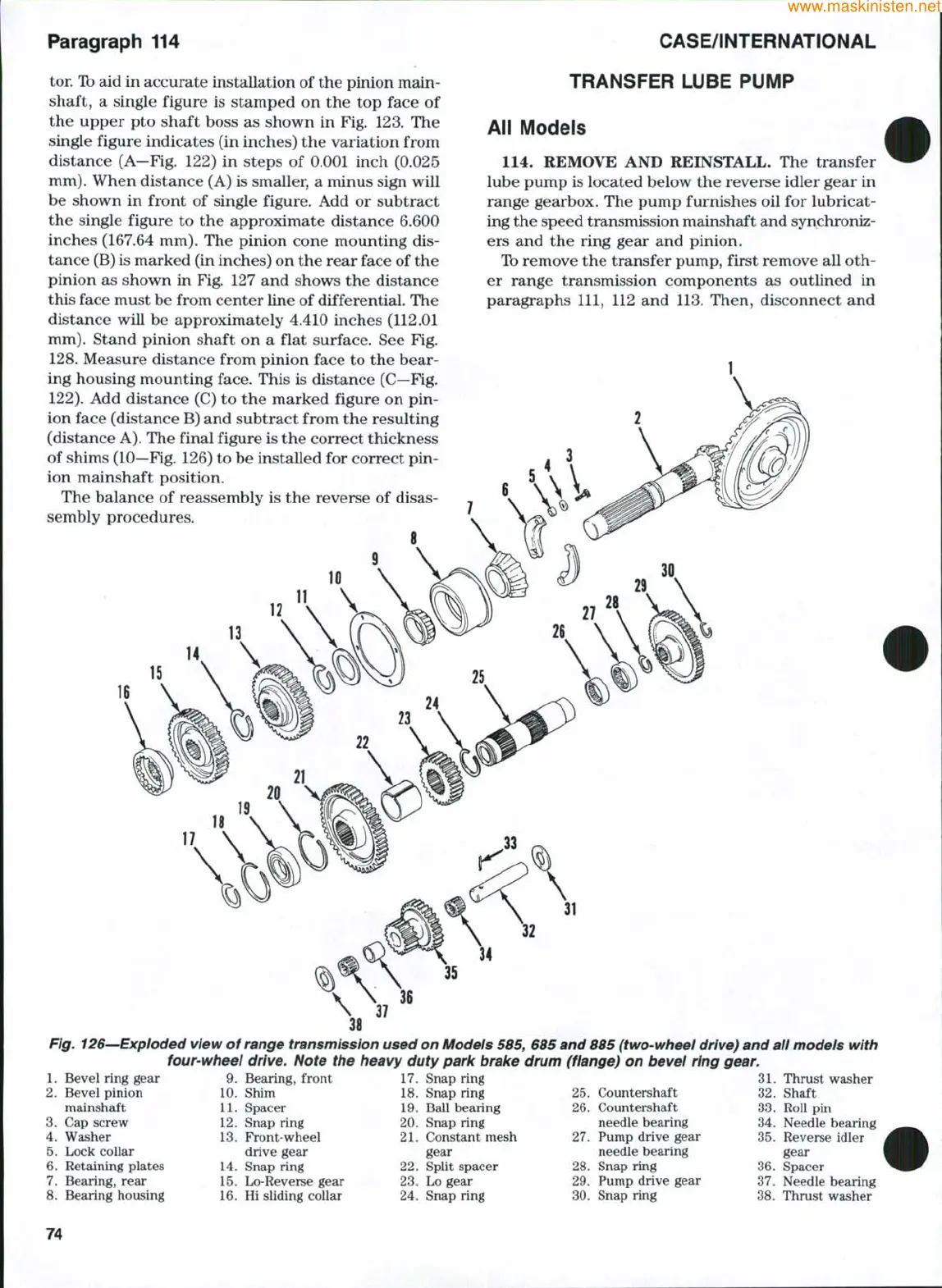

Fig. 126—Expioded view of range transmission used on Modeis 585, 685 and 885 (two-wheei drive) and ail models with
four-wheei drive. Note the heavy duty park brake drum (fiange) on bevei ring
gear.
1.
Bevel ring gear
2.
Bevel pinion
mainshaft
3.
Cap screw
4.
Washer
5.
Lock collar
6. Retaining plates
7.
Bearing, rear
8. Bearing housing
9. Bearing, front
10.
Shim
11.
Spacer
12.
Snap ring
13.
Front-wheel
drive gear
14.
Snap ring
15.
Lo-Reverse gear
16.
Hi sliding collar
17.
Snap ring
18.
Snap ring
19.
Ball bearing
20.
Snap ring
21.
Constant mesh
gear
22.
Split spacer
23.
Lo gear
24.
Snap ring
25.
Countershaft
26.
Countershaft
needle bearing
27.
Pump drive gear
needle bearing
28.
Snap ring
29.
Pump drive gear
30.
Snap ring
31.
Thrust washer
32.
Shaft
33.
Roll pin
34.
Needle bearing
35.
Reverse idler
gear
36.
Spacer
37.
Needle bearing
38.
Thrust washer
74
