SECTION 55 - ELECTRICAL SYSTEM 173

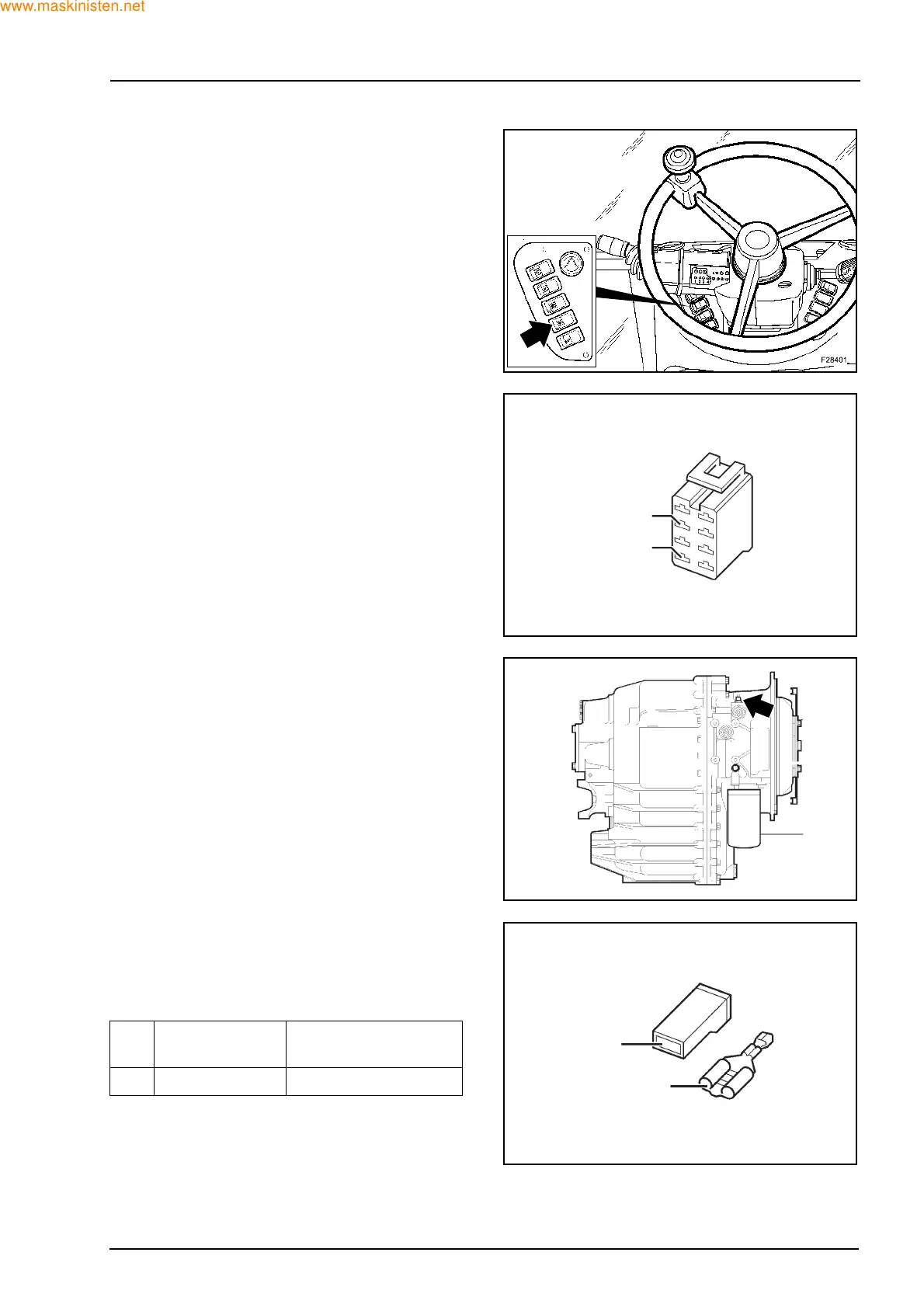

POWERSHIFT EGS OVERRIDE
In situations where a “MANUAL” gearshift (up or
downshift) is required, the powershift transmission
auto change can be overridden by selection of this
console-mounted switch.
Test procedure
Continuity should be found between pin 1 and pin 2
when switch is operated.
OIL PRESSURE SWITCH - POWERSHIFT
Energized at 12 V if the transmission pressure is to
low, the warning lamp will flash.
Test procedure
The voltage measured between pin 1 and pin 2
should be 12 V.
With Transmission oil pressure continuity should be
found.
Pin
No.
Sender Resistance
1 12 V with low pressure 0.3 Ω
F28400
7: Z/N1
5: N1
F28402
F28403
Z-B:1
N:1
