176 SECTION 55 - ELECTRICAL SYSTEM

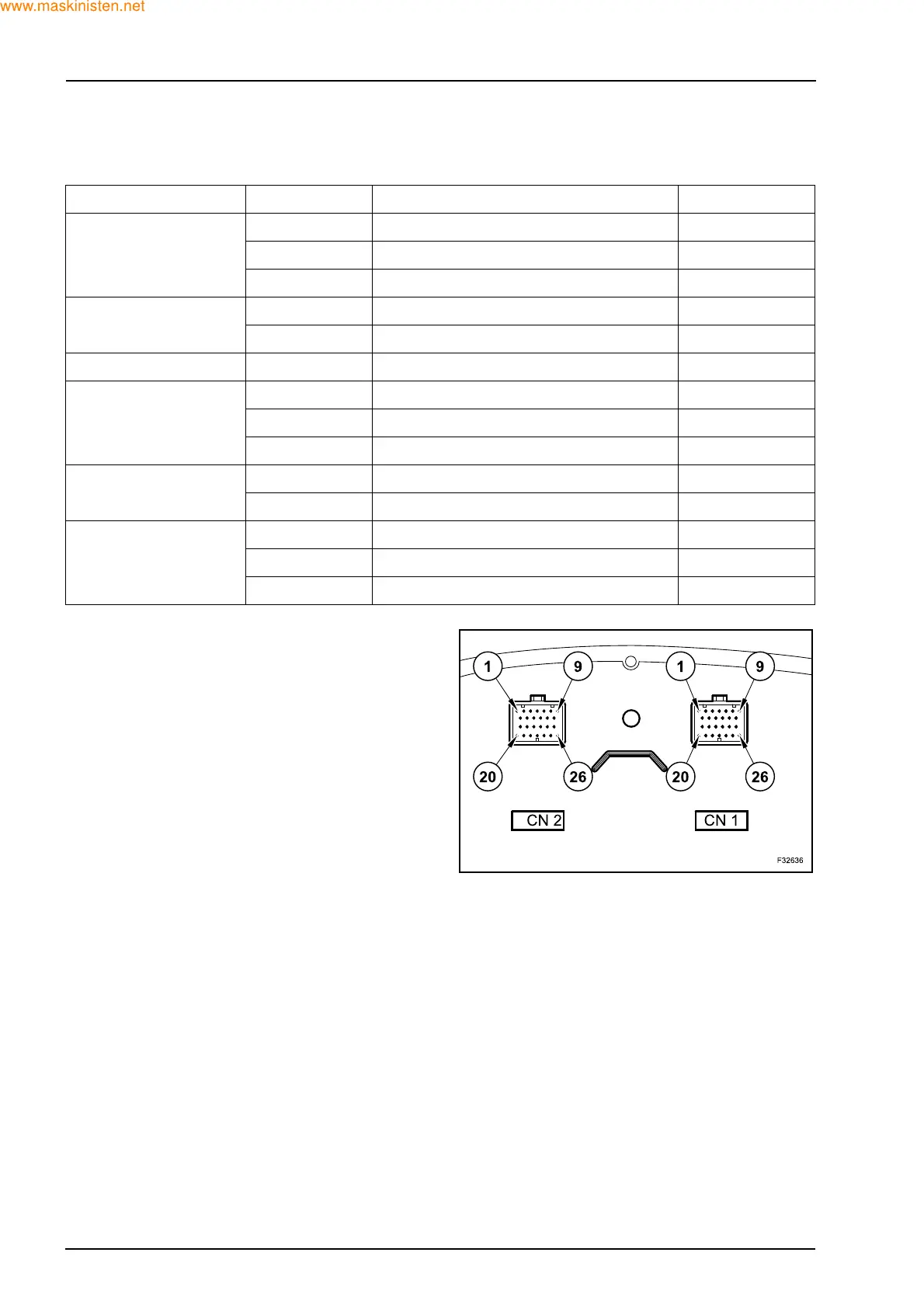

SIDE INSTRUMENT CLUSTER
Calibrations
Connectors
GAGE TYPE INPUT READING TOLERANCE
FUEL LEVEL 320 OHMS Empty - minimum reading +0/-2°
185 OHMS Right - edge of red band ± 3° (Ref)
6.5 OHMS Full - maximum reading +4/-0°
LOW FUEL LAMP 208 OHMS ON ± 5 OHMS
200 OHMS OFF ± 5 OHMS
TACHOMETER Can message 0-3000 RPM ± 50 RPM
COOLANT
TEMPERATURE
Can message Minimum reading (65 °C) ± 3 °C
Can message Left edge of red band (106 °C) ± 2 °C
Can message Maximum reading (112 °C) ± 3 °C
VOLT 11 V Right edge of lower red band ± 3 °C
16 V Left edge of upper red band ± 3 °C
TRANSMISSION
TEMPERATURE
358 OHMS Minimum reading (75 °C) ± 3 °C
149 OHMS Left edge of red band (105 °C) ± 2 °C
112 OHMS Maximum reading (115 °C) ± 3 °C
