184 SECTION 55 - ELECTRICAL SYSTEM

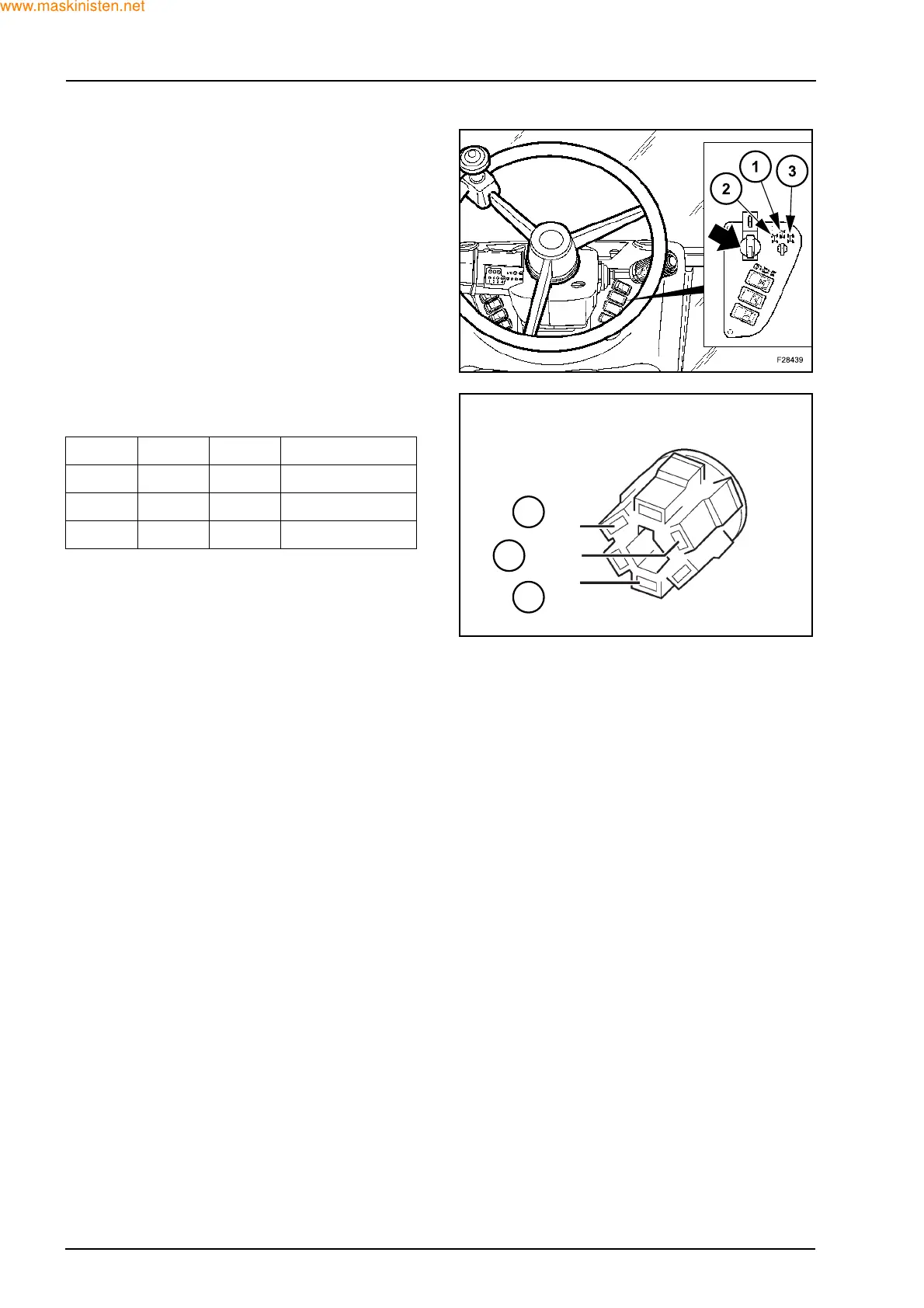

8.17 4WS - STEERING SELECTOR SWITCH
At key start 12 V should be found at the switch and
is directed to the steering sensors when a switch se-
lection is made.
Test procedure
With ignition ON
Pin 2WS 4WS CRAB
A 12 V 12 V 12 V
B - - 12 V
C-12 V -
F28438
C
B
A
V/N
L-R
C-G
