SECTION 55 - ELECTRICAL SYSTEM 193
8.24 BACKHOE

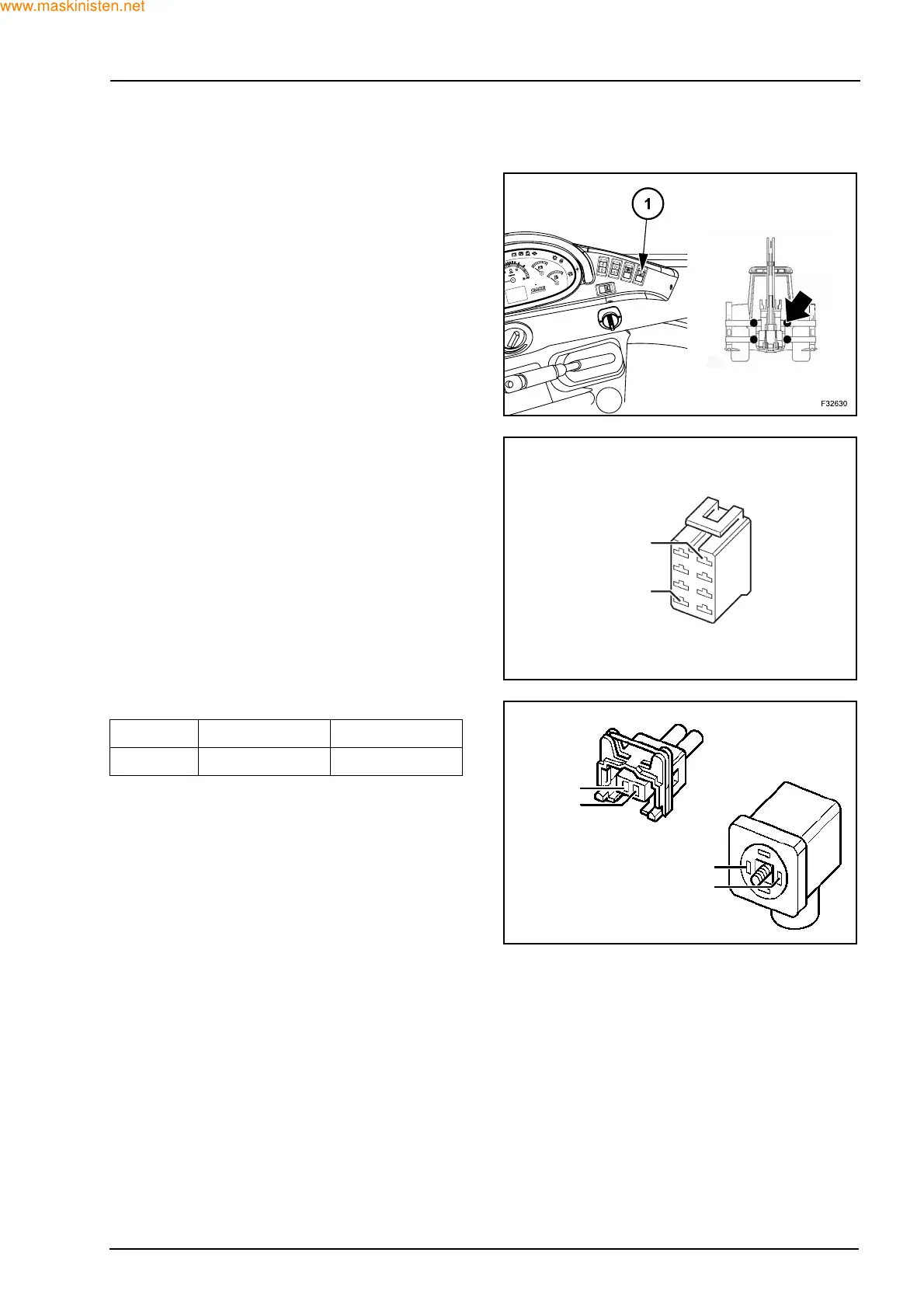

BACKHOE ATTACHMENT TRAVEL LOCK
SWITCH
At start-up, the switch must have 12 V to disengage
/ engage the backhoe attachment travel lock cylin-
ders.
Test procedure
(Switch Off)
Continuity should not be found between any pins
(Switch On).
Continuity shoud be found between pins 1 and 5.
Pin No. Solenoid Resistance
112 V 9.7 Ω
F28468
1: C/B1
5: B-N1
F28469
1: RM:N:1
2: RM:C-L:1
1: RM:A-N:1
2: RM:N:1
