SECTION 82 - LOADER 9
4.1 LOADER BUCKET WITH FORKS
(Optional)

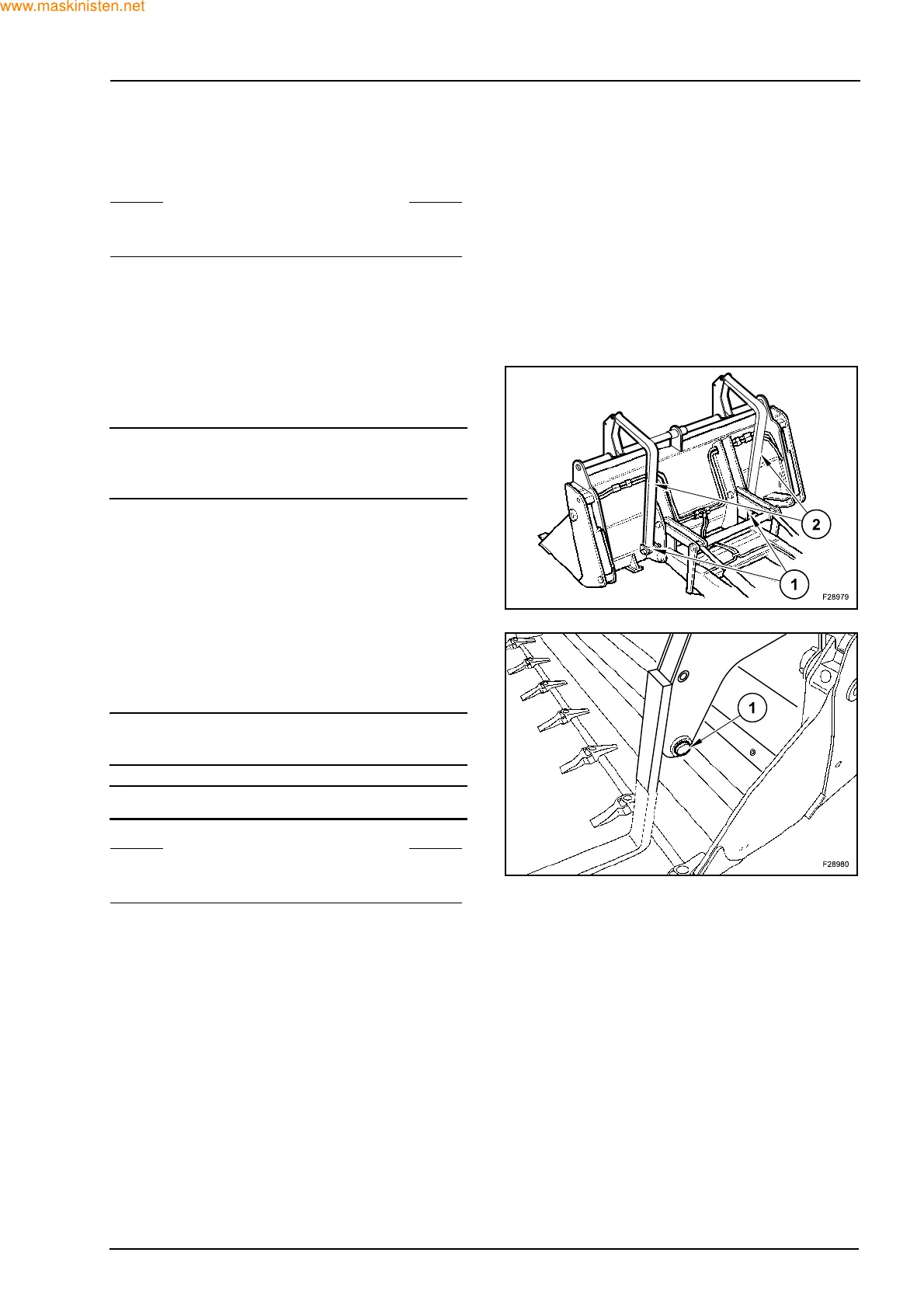

INSTALL FORKS IN WORKING POSITION
Move the bucket to a level and firm ground. Stop the
engine and remove the starter switch key. Raise the
parking brake lever.
Remove the retained pin and the pin (1).
Lower the fork (2) manually and carefully until it is
laying in position against the bucket cutting edge.
IMPORTANT: the forks must be laying against the
cutting edge of the bucket, and never against bucket
teeth.
Install the pin (1) and the safety pin.
Repeat the same operations for the other fork.
Slide the forks until they are suitably spaced for the
intended job.
IMPORTANT: the two forks must be positioned at
the same distance from the centre of the bucket.
IMPORTANT: never use the forks to lift the machine.
S WARNING S
The forks are heavy, so use great care when swing-
ing them into their working and stowage position.
S WARNING S
When using the forks with a 4x1 bucket, never at-
tempt to use the bucket jaw opening function.
12
13
