10 SECTION 82 - LOADER

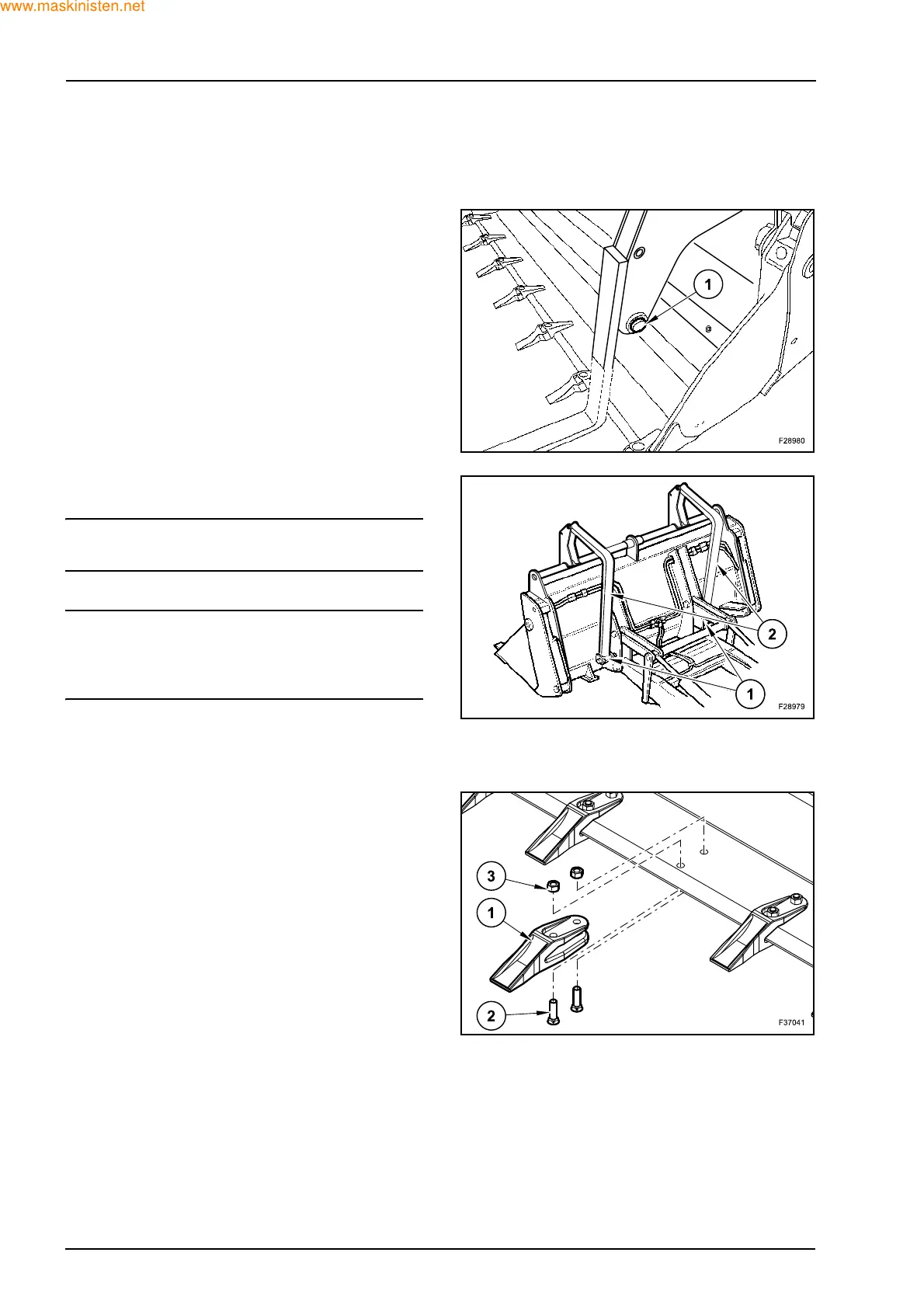

INSTALL THE FORKS IN REST POSITION
Rest the loader bucket on a level and firm ground.
Stop the engine and remove the starter switch key.
Disengage the parking brake lever.
Remove the retained pin and the pin (1).
Tilt the fork (2) manually and carefully until it is rear-
wards into transport position.
Reinstall the pin (1) and the safety pin into their hous-
ing.
NOTE: if necessary, slide the fork to the side to bring
it into its housing.
Repeat the same operations for the other fork.
IMPORTANT: the forks must be securely retained in
their proper storage position using the pins and split
pins provided for this purpose. If forks are not cor-
rectly secured, they can cause serious injury.
4.2 REPLACING LOADER BUCKET TEETH
Move the machine to a level and firm ground.
Position the loader bucket so that the bucket teeth
can be replaced.
Place the direction-of-travel lever and gearshift lever
in neutral position.
Immobilize the machine by means of the parking
brake.
Stop the engine and remove the starter switch key.
Loosen and remove the screws (2) with the nuts (3).
Extract the tooth (1).
Clean the area around the tooth.
Assemble the new tooth (1).
Screw in and tighten the screws (2) with the nuts (3).
14
15
16
