4 SECTION 84 - BACKHOE

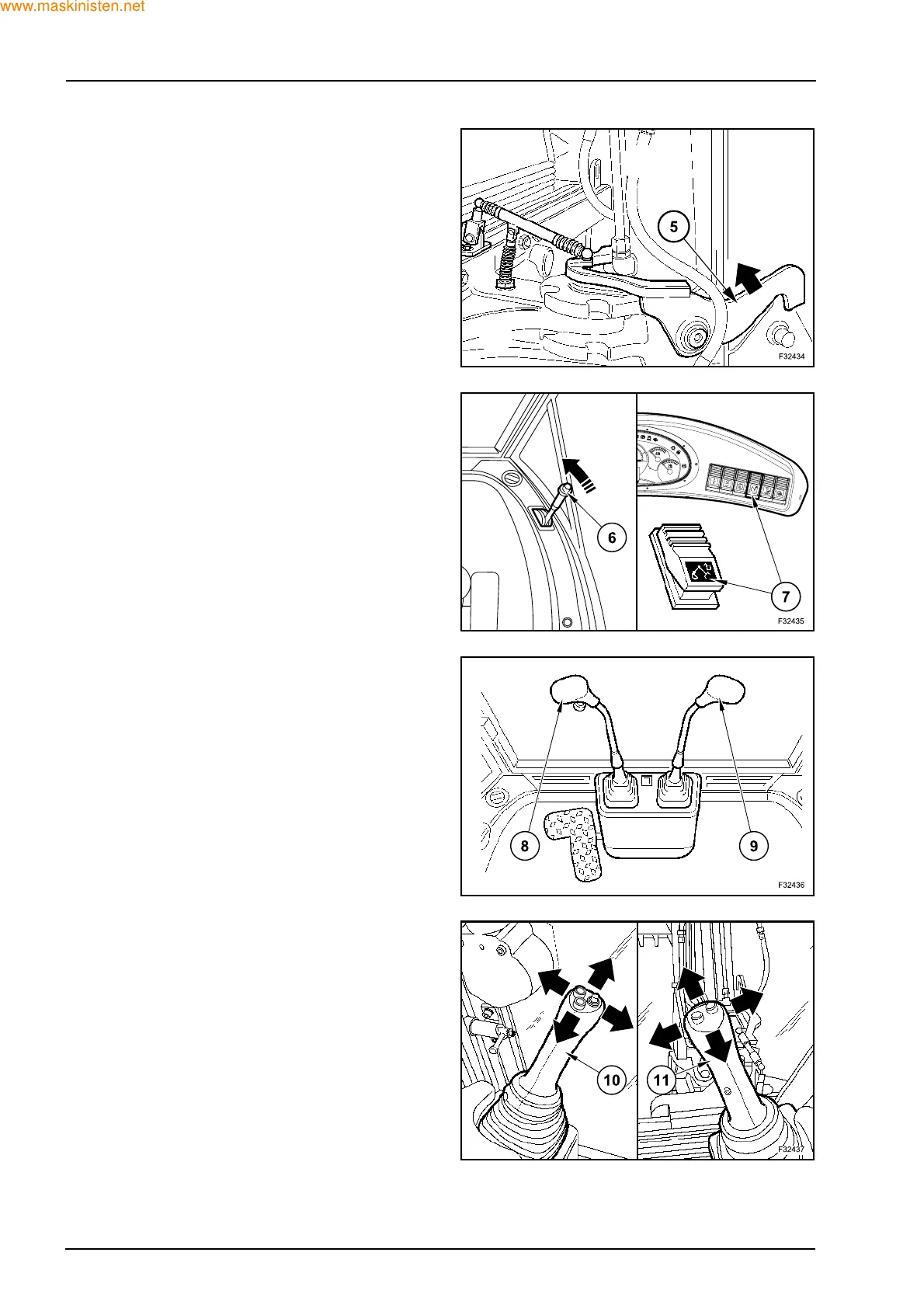

The backhoe attachment is locked in position during
transport using a hydraulically and mechanically op-
erated lock (5).
The lock is operated by the lever (6) or the switch (7).
The backhoe on the mechanical control models is
controlled using two main control levers.
Three types of control pattern for two levers (8) and
(9) systems are available as shown on the following
pages. A four levers dealer installed system is also
available as a Dealer installed accessory.
The backhoe on the hydraulic control models is con-
trolled using two rear hydraulic control levers (10)
and (11).
