SECTION 84 - BACKHOE 5
Machines may be fitted with an optional telescopic
dipper which can be operated simultaneously with
other boom, dipper and bucket movements.

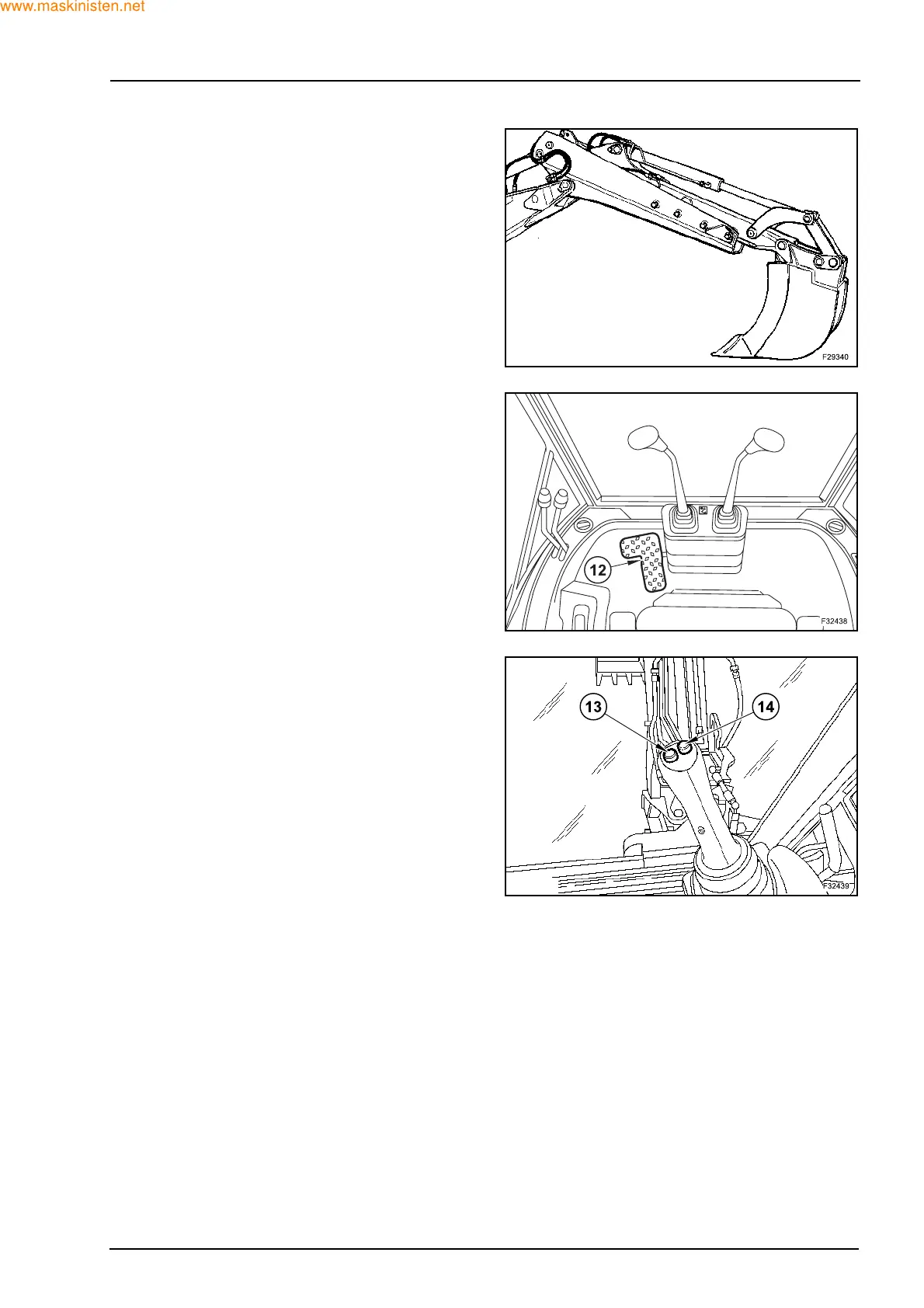

The telescopic dipper on the manually controlled
models is controlled by a pedal (12) located in the
rear part of the cab.
The telescopic dipper on pilot control modes, is con-
trolled using the two buttons (13) and (14) on the left
hydraulic control lever.
