SECTION 21 - TRANSMISSION
237

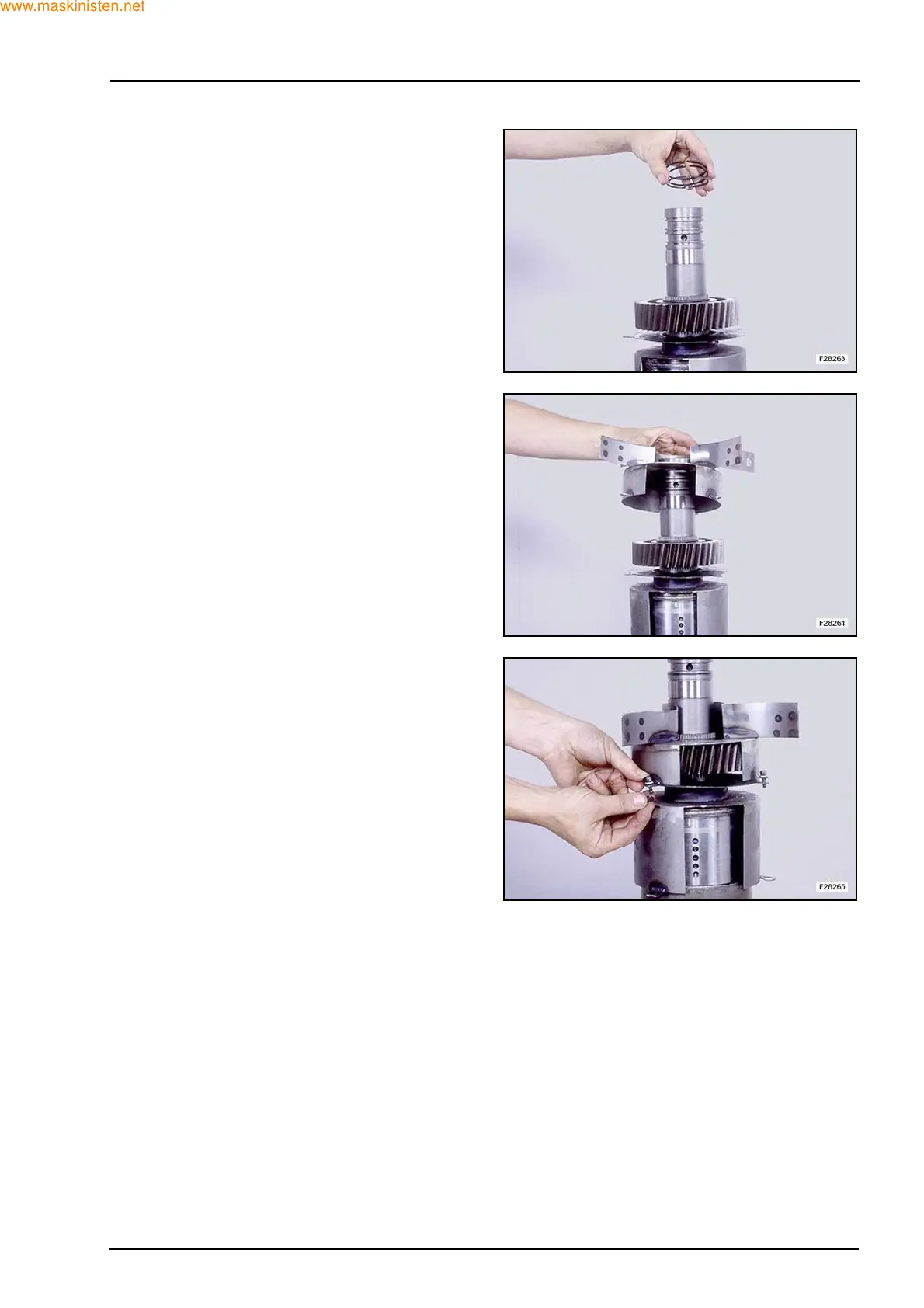

Install the output shaft sealing rings.
Install the rear oil baffle on the output shaft.
Install the oil baffle mounting screws, the washe
r
and the nuts and
tighten the nuts to the sp
ecified
torque (Use Loctite 243).
www
.maskinisten.net
