256 SECTION 21 - TRANSMISSION

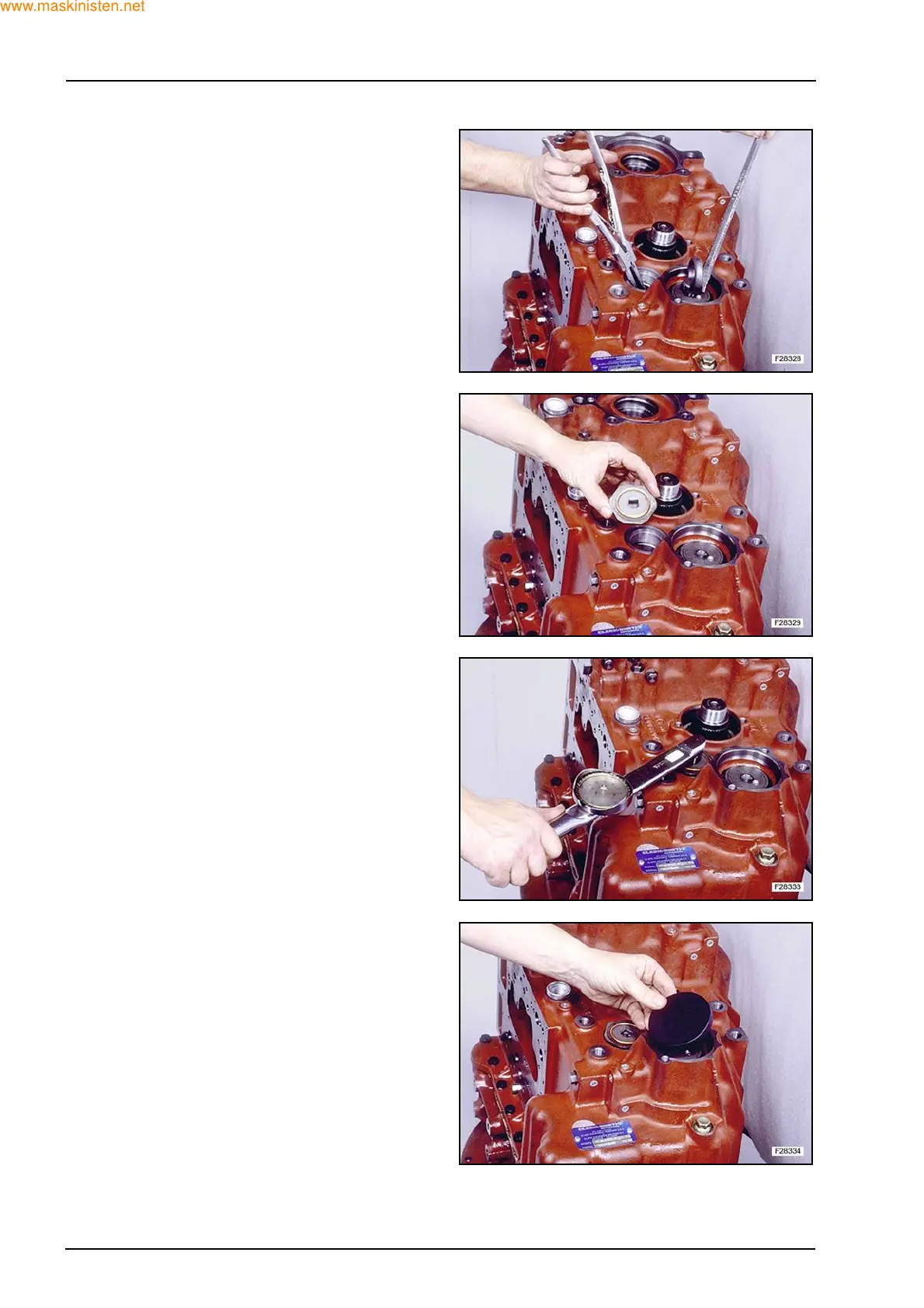

Using spreading type snap ring pliers, spread ears
on output shaft rear bearing retaining ring. Hold
snap ring open, pry or lift output shaft. Be sure re-
taining ring is complete in the bearing groove. (Using
a lifting eye or screw M12).
Install the hole plug and the gasket.
Tighten the plug to 13.6 - 20.3 Nm.
Position the lower output bore plug and the tap bore
plug into the place.
