10 SECTION 25 - FRONT AXLES
Insert the thrust washer (5) into the front support
seat.
Heat the bush (4) at 110 ÷ 120 °C then assemble it
to the axle housing (6).
NOTE: if necessary assemble the bush (4) with a
pad and a hammer.
Apply sealant on the bushes (1) contact surface.
Assemble the bushes (1) to the front support (2) with
a pad and a hammer.
Assemble the bush (3) into the front support (2) with
a suitable driver and a hammer.
SWARNING
Align the bush hole with the bolt (8) hole.
Mount the bolt (8).
Insert the front support (2) on the axle housing (6).
Tighten the bolt (8) to the request torque and tighten
the lube nibble (9).

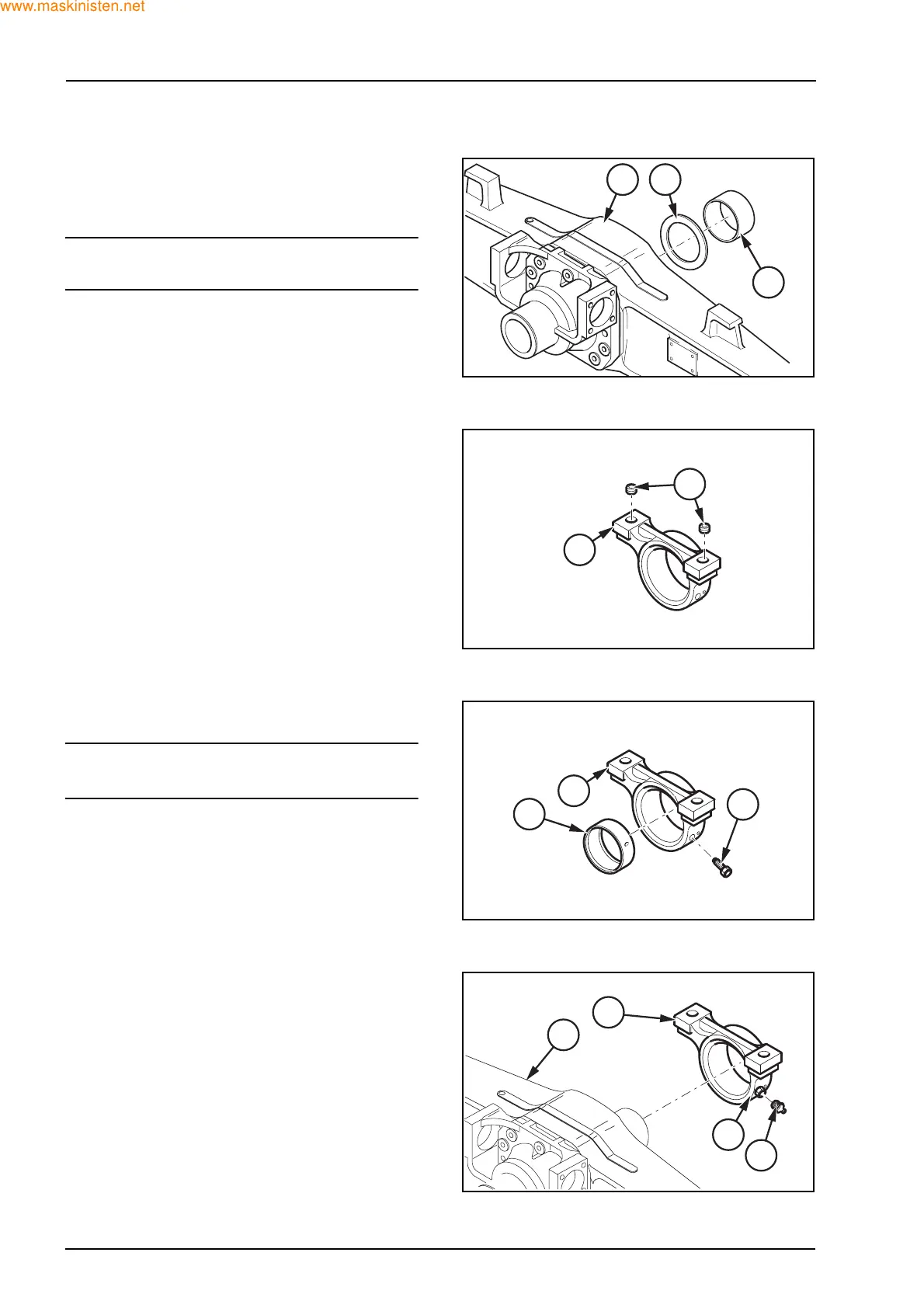

F27359
4
5
6
F27362
1
2
F27363
2
3
8
F27364
6
2
8
9
