SECTION 25 - FRONT AXLES 9
Apply sealant on the bushes (1) contact surface.
Assemble the bushes (1) to the rear support (10)
with a pad and a hammer.
Assemble the bush (12) in the rear support (10).
SWARNING
Align the bush hole with the bolt (8) hole.
Mount the bolt (8).
Lubricate with grease a new O-ring (11).
Insert the O-ring (11) in the rear support (10).
Insert the rear support (10) on the differential sup-
port.
SWARNING
Do not damage the O-ring when inserting the rear
support on the axle housing.
Tighten the bolt (8) to the request torque and tighten
the lube nibble (9).

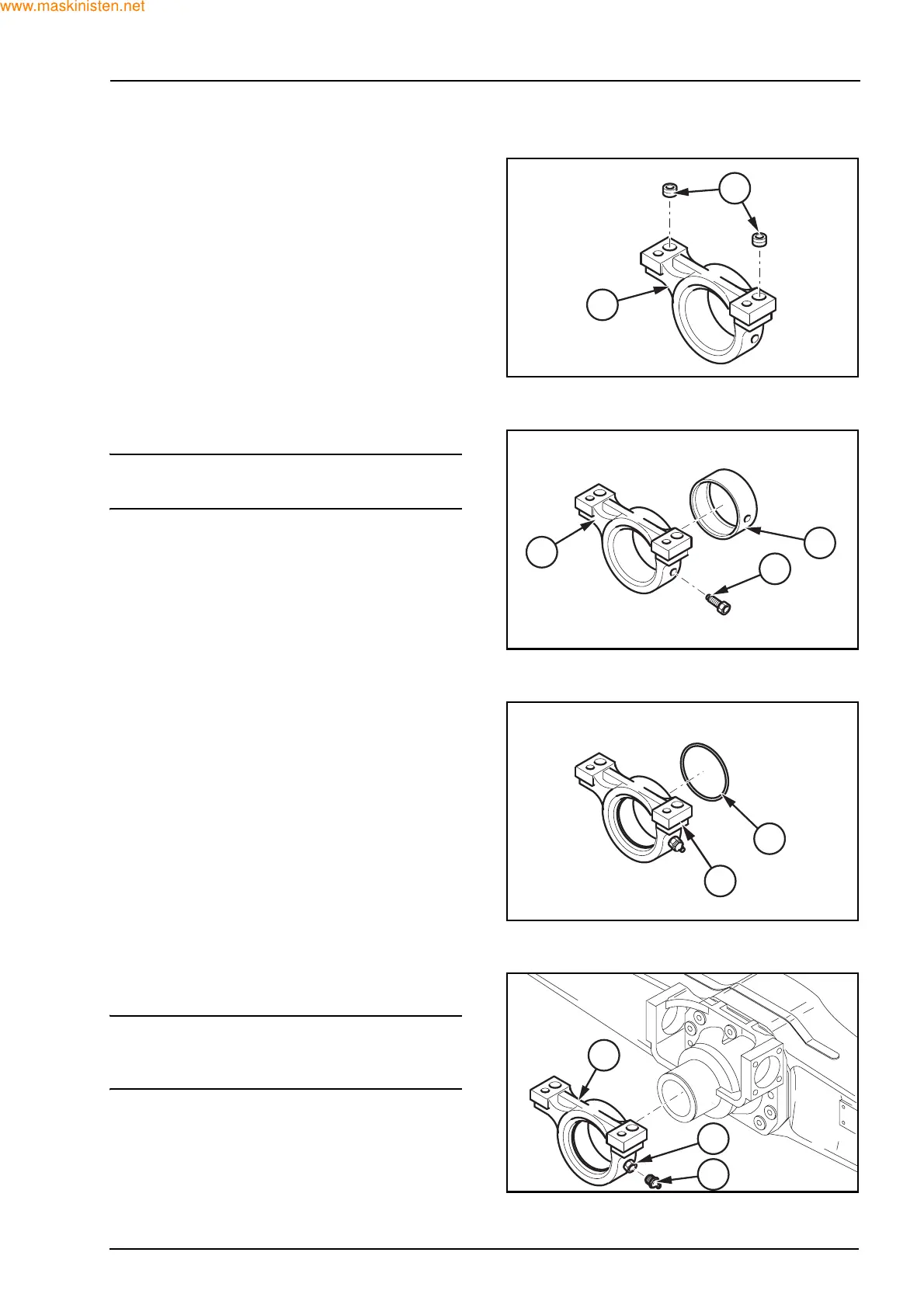

F27355
1
10
F27360
10
12
8
F27353
10
11
F27361
10
8
9
