8 SECTION 25 - FRONT AXLES
Assembly
Take the front support (2) out from the axle housing
(6).
Remove the bolt (8) with the lube nibble (9).
Remove the bush (3) from the front support (2).
Remove the bushes (1) from front support (2).
Remove the bush (4) and the thrust washer (5) from
axle housing (6) only if necessary.
NOTE: it is advisable to heat the bush (4) to make
easy this operation; this is a destructive operation
for the bush.
Insert the thrust washer (14) into the differential sup-
port.
Heat the bush (13) at 110 ÷ 120 °C then assemble it
to the differential support.
NOTE: if necessary assemble the bush (13) with a
pad and a hammer.

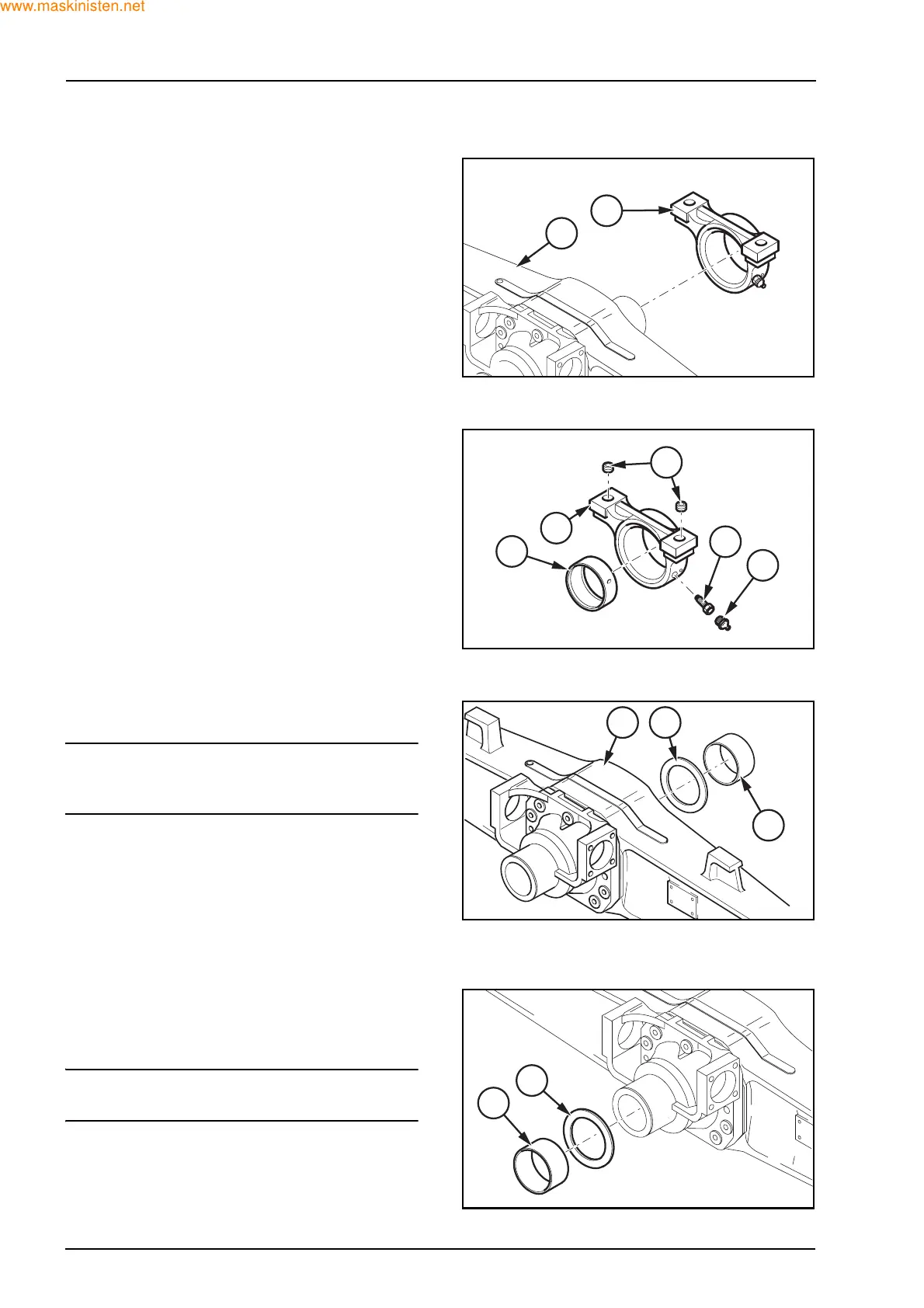

F27357
6
2
F27358
1
2
3
8
9
F27359
4
5
6
F27356
13
14
