12 SECTION 25 - FRONT AXLES

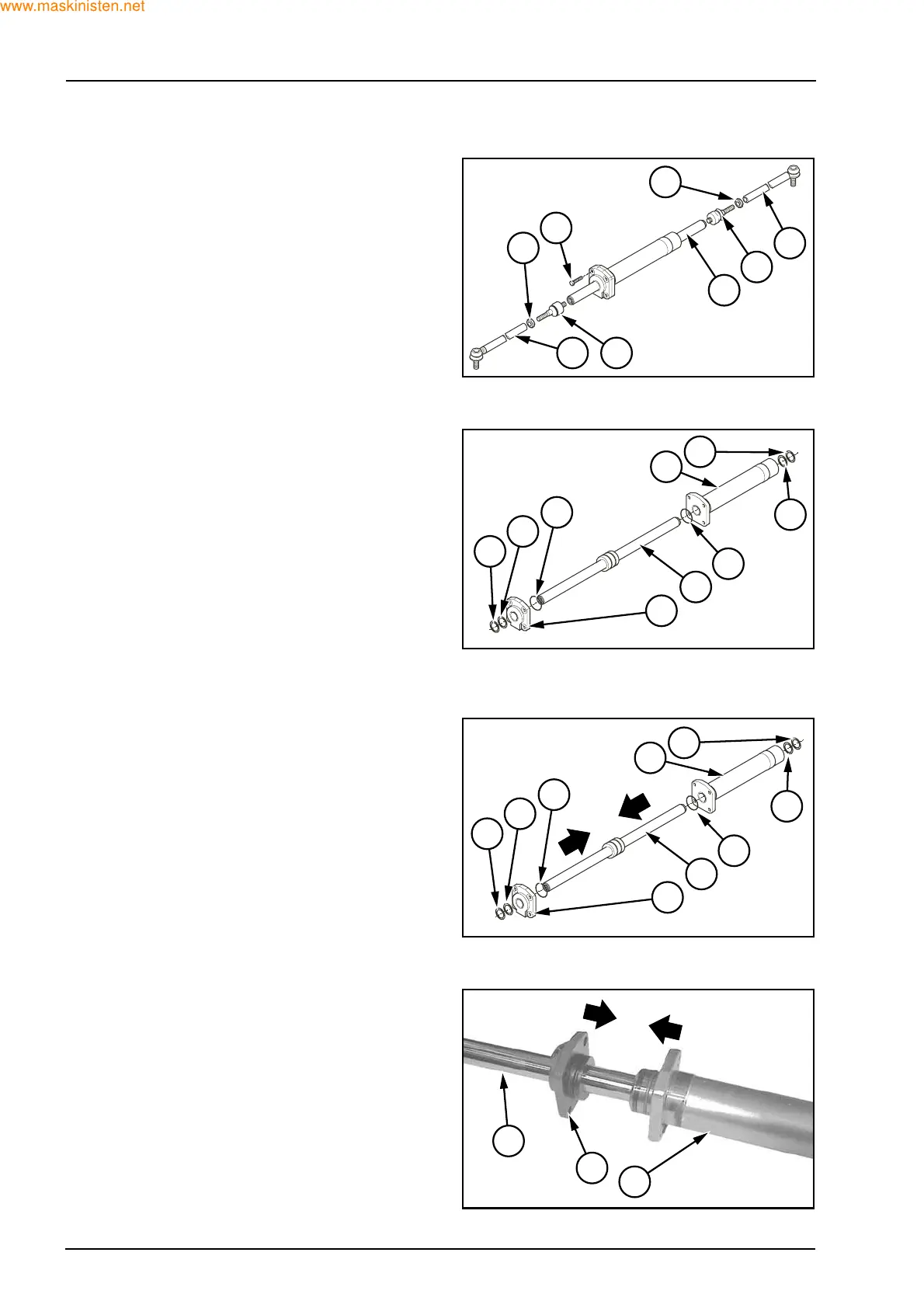

Assembly
Remove the tie rods (3) and (12) by loosening the
nuts (4) and (11) with a suitable wrench, then check
their conditions.
Unscrew the fastening screws (6) and take the
steering cylinder (7) out of its housing; if necessary,
use a rubber hammer.
Remove only parts that need to be overhauled and/
or replaced.
Remove the cylinder head (15) from the cylinder
body (19) and remove it from the rod (17).
Remove the rod (17) from the cylinder body (19).
Remove all the seals and O-rings (13, 14, 16, 18, 20
and 21) from the cylinder body (19), the cylinder
head (15), and the rod (17).
Assemble new seals and O-rings (13, 14, 16, 18, 20
and 21) on the cylinder head (15), on the piston rod
(17) and on the cylinder body (19).
Assemble the cylinder head (15) on the rod (17).
Slide the pre-assembled rod (17) into the cylinder
body (19).
4
6
11
3 5
7
10
12
F27229
13
14
16
21
19
15
17
18
20
F27230
13
14
16
21
19
15
17
18
20
F27231
17
15
19
F27232
