SECTION 25 - FRONT AXLES 13

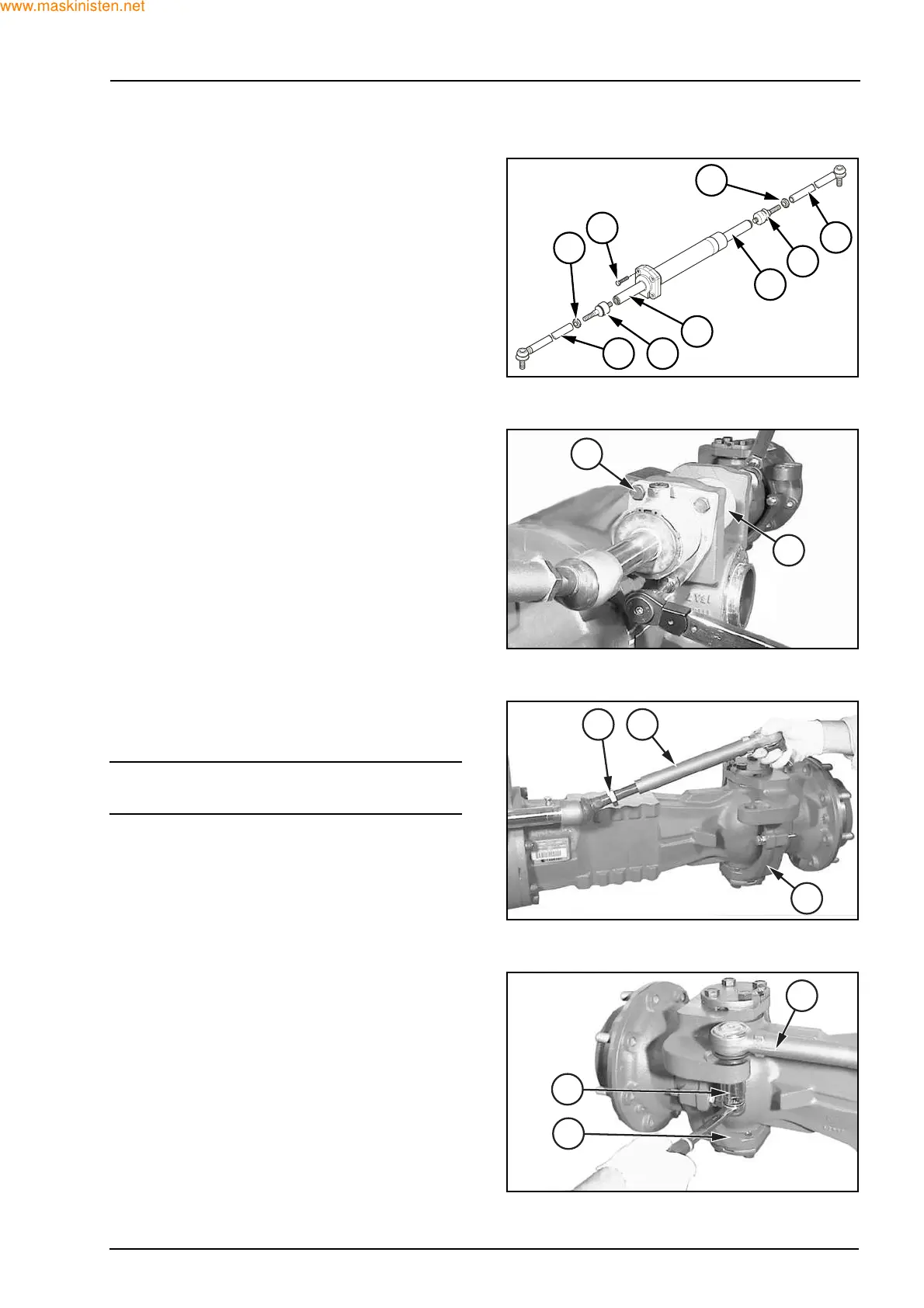

Assemble the tie rods (3) and (12), the ball joints (5)
and (10), the nuts (4) and (11) to the ends of the rod
(17), then tighten to the requested torque.
Install the steering cylinder (7) already assembled
on the central body.
Assemble and tighten the screws (6) to the specified
torque.
Align the swivel housing (8) with the axle.
Screw the tie rod (12) so that its ball joint can be in-
serted into the swivel housing (8).
NOTE: it is important to unscrew the locknut (11) to
carry out this operation.
Repeat the whole sequence of the mentioned oper-
ations to the other side.
Assemble the ball joint of the tie rod (3) into its hous-
ing in the swivel housing (2).
Assemble and tighten the locknut (1) to the specified
torque.
Repeat the whole sequence of the mentioned oper-
ations to the other side.
4
6
11
3 5
17
7
10
12
F27233
F27504
6
7
F27235
1211
8
F27236
1
2
3
