20 SECTION 25 - FRONT AXLES
TOE-IN / STEERING ANGLE

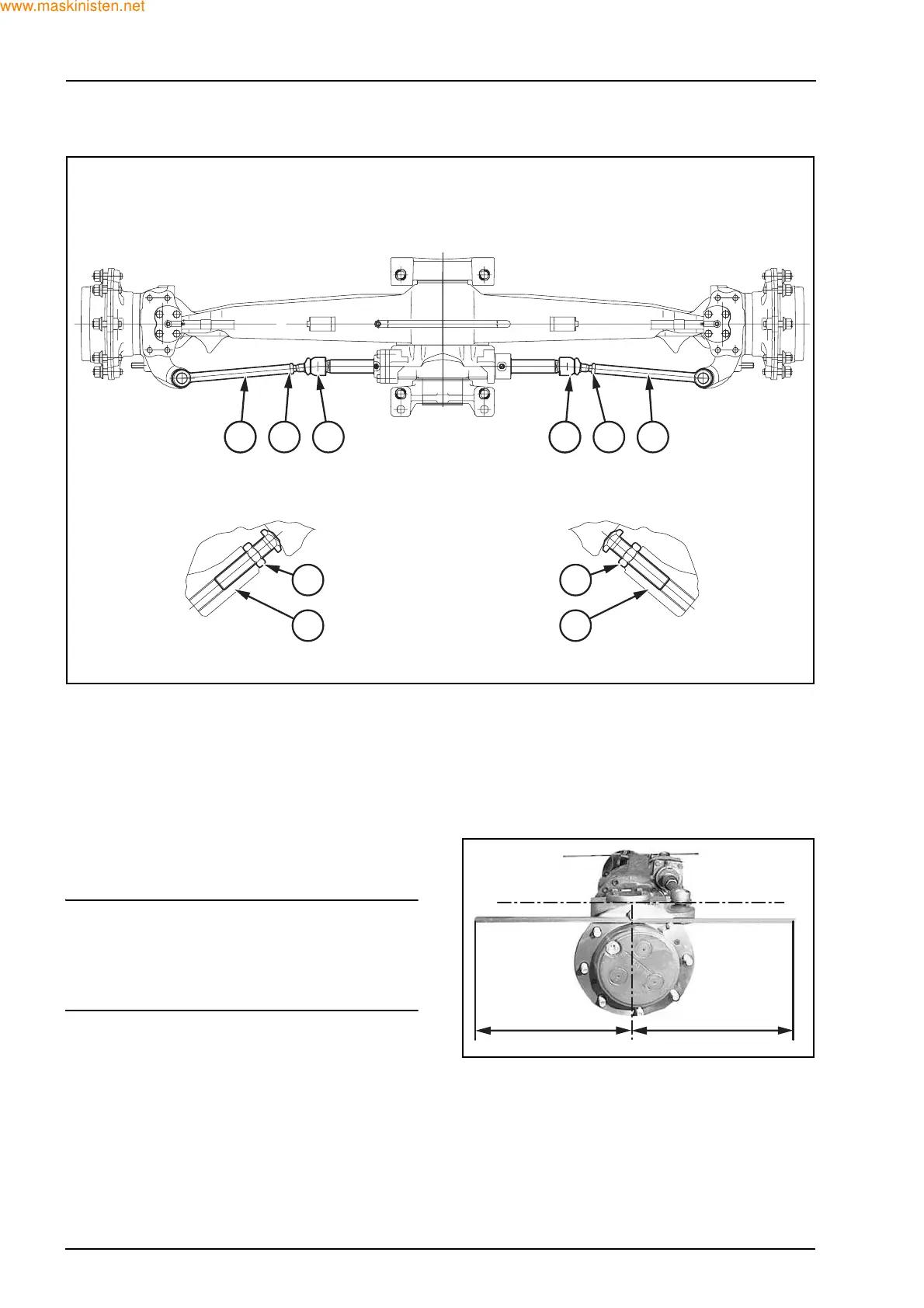

Toe-in
Put two equal 1 m long linear bars on the wheel
sides and lock them with two nuts on the wheel hub
stud bolt.
SWARNING
The two bars should be fixed on their middle so that
they are perpendicular to the supporting surface
and parallel to the pinion shaft axis; align the two
bars.
111 2 3 113 2 1
5
4
5
4
F27339
F27340
500 mm500 mm
