Case 580SR+ - Page 383

SECTION 25 - FRONT AXLES 31
2.2 DISASSEMBLY AND ASSEMBLY
FRONT AND REAR SUPPORT
Disassembly
Remove the nut (3) and the bolt (2) and extract the
flange (1) from the pinion shaft end (14).

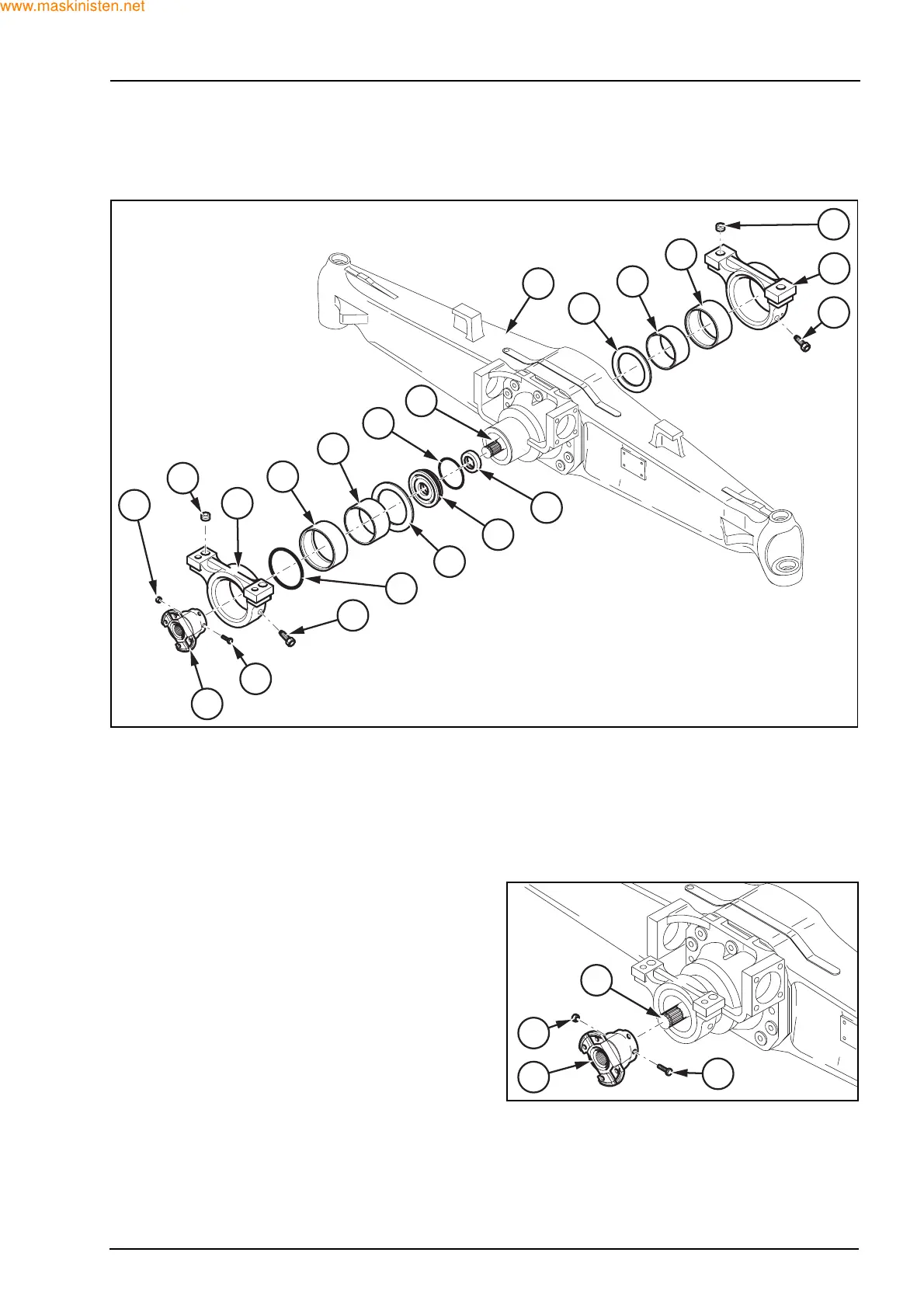

F27212
20
21
18
17
16
15
12
9
14
8
5
6
3
19
13
11
10
7
4
2
1
2
1
3
14
F27213
