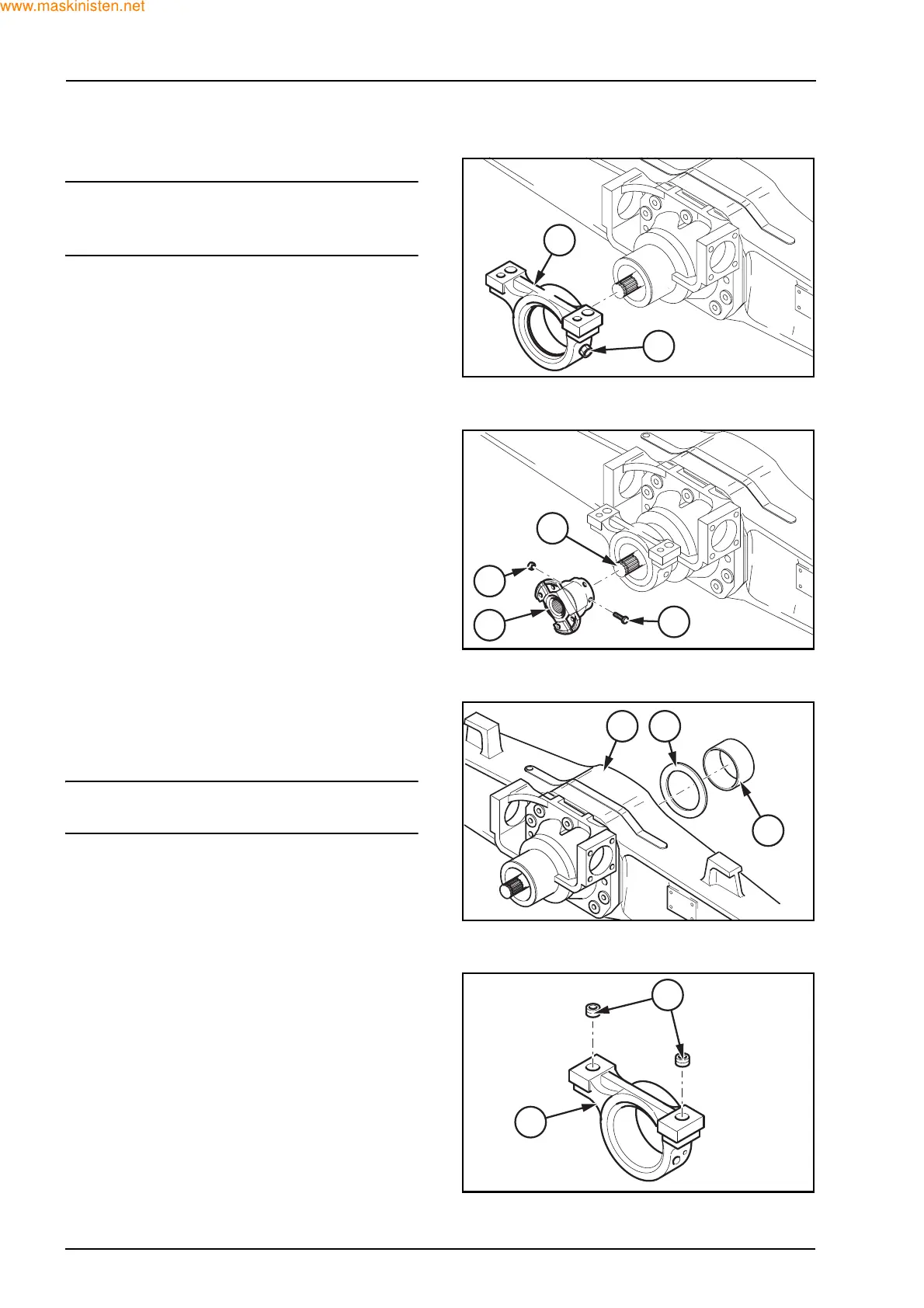

36 SECTION 25 - FRONT AXLES
Insert the rear support (5) on the differential support.
SWARNING
Do not damage the O-ring when inserting the rear
support on the central body.
Tighten the bolt (4) to the requested torque.
Assemble the flange (2) to the pinion shaft end (14).
Lock the flange (1) with the bolt (2) and the nut (3).
Tighten the nut (3) to the requested torque.
Insert the thrust washer (16) into the front support
seat.
Heat the bush (17) at 110÷120 °C then assemble it
to the axle housing (15).
NOTE: if necessary assemble the bush (17) with a
pad and a hammer.
Apply sealant on the bushes (21) contact surface.
Assemble the bushes (21) into the front support (20)
with a pad and a hammer.
F27214
4
5
2
1
3
14
F27213
F27223
17
16
15
F27224
21
20
