SECTION 25 - FRONT AXLES 69
Assembly

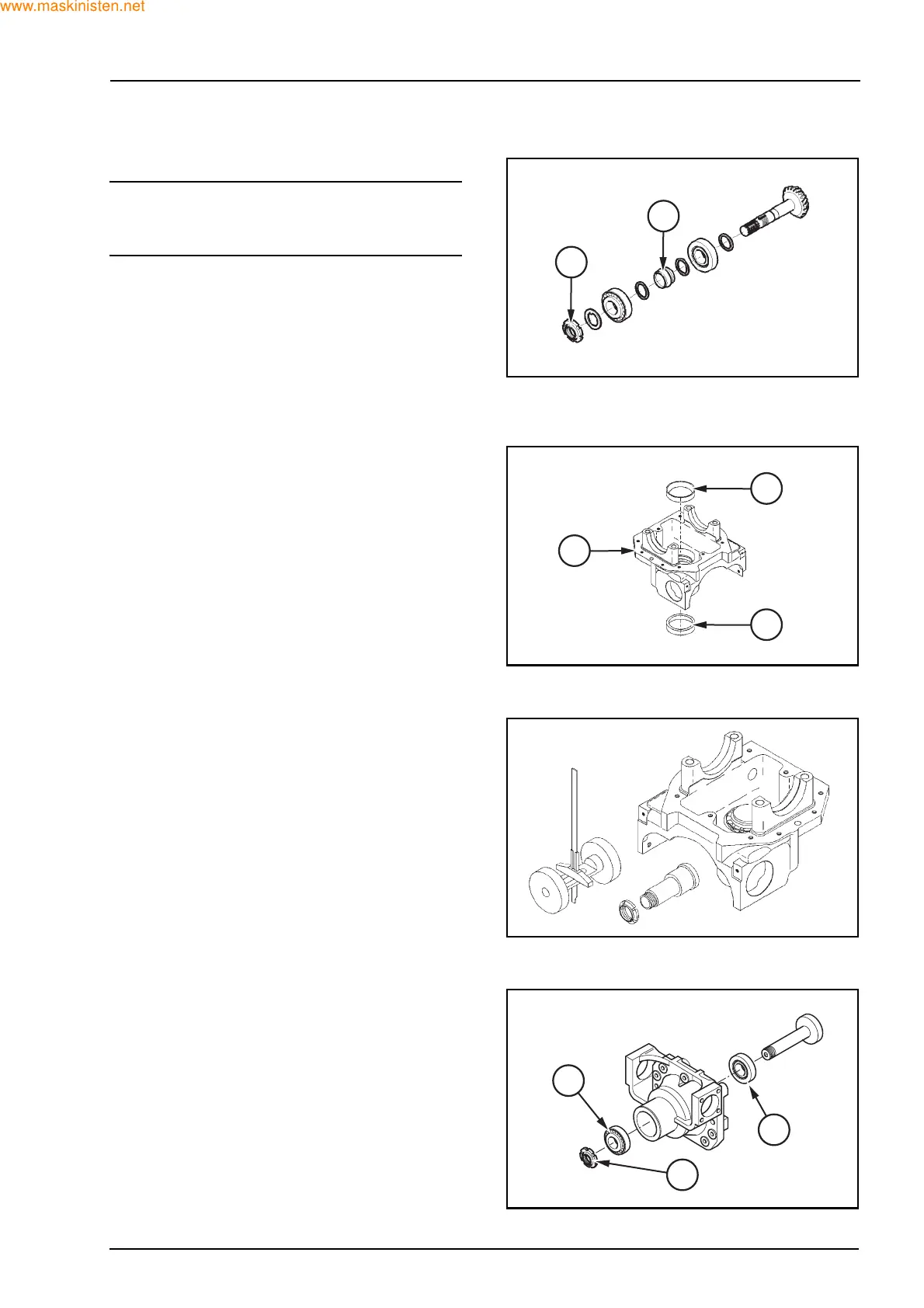

Check all pinion components for wear.
SWARNING
The ring nut (10) and the spacer (5) must be re-
placed when reassembling the unit.
Place the differential support (7) on a workbench.
Assemble the bearing cups (3) and (8).
Prepare the kit consisting of the special tools called
“false pinion” 380002219 and “false differential box”
380000407 + 380000440 and a depth gauge.
Insert the bearing (3) and (8) in their housings.
Assemble the “false pinion” 380002219 and its ring
nut (10).
Tighten without exceeding the ring nut, till the back-
lash is eliminated.
F27325
5
10
F27326
3
8
7
F27327
F27328
10
3
8
