70 SECTION 25 - FRONT AXLES

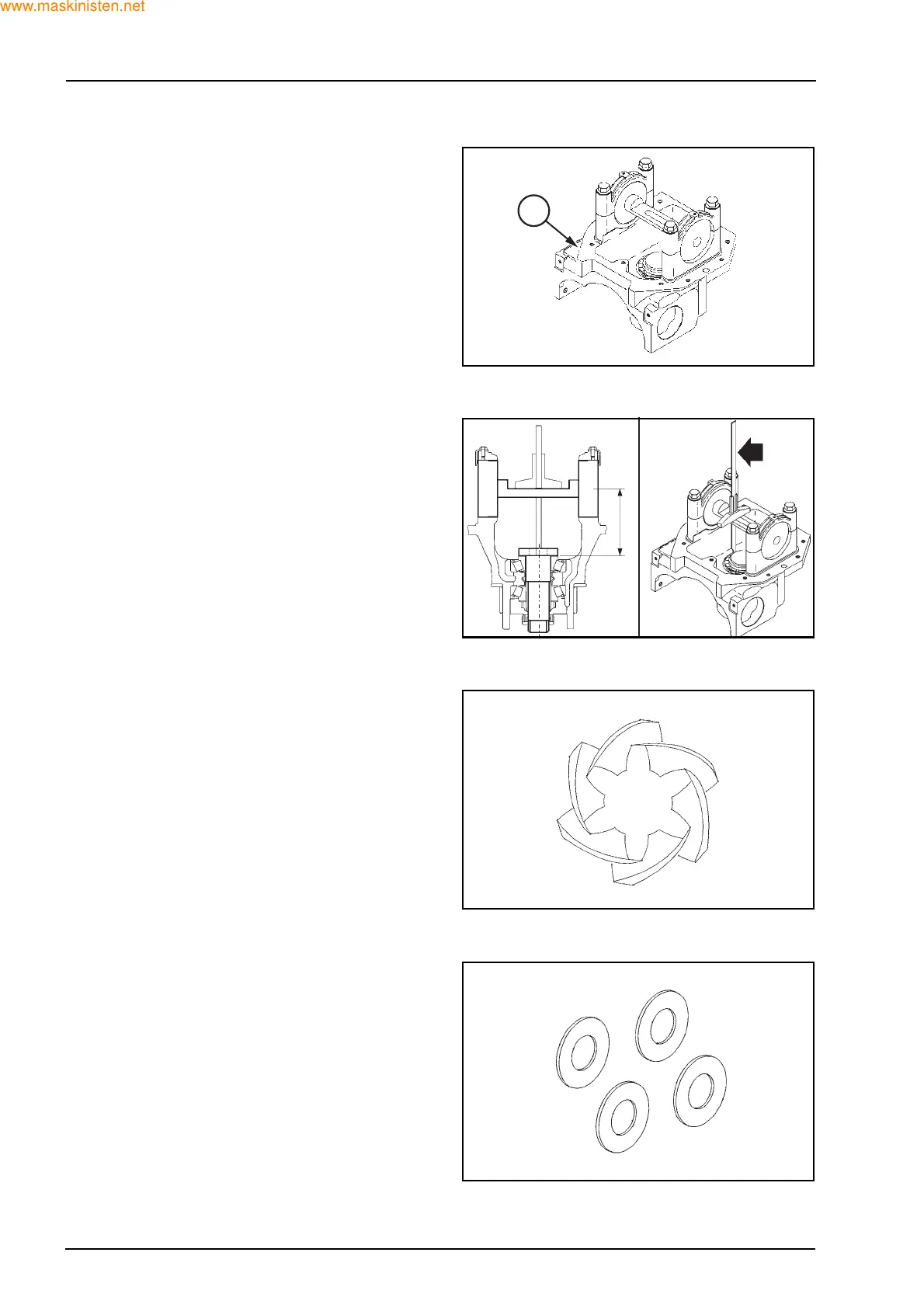

Install “false differential box” special tools
380000407 + 380000440 to the differential group
supports (7) and lock it with the half collar bolts.
Assembly diagram of the “false differential box”
tools 380000407 + 380000440 on the bearing differ-
ential support seats.
Use a depth gauge to measure distance “X” (dis-
tance between the axis of the differential bearings
and the point at which the pinion head is supported,
or base of the bearing).
In order to determine the necessary thickness value
(S) between the pinion and the bearing, subtract the
value (V), stamped on the pinion head (V = request-
ed conical distance), from the measured value (X).
S = X-V mm
Select the shim (2) of thickness value (S) among the
range of available shims.
F27329
7
F27330
X
X
F27331
V
F27332
