SECTION 25 - FRONT AXLES 87
Assembly

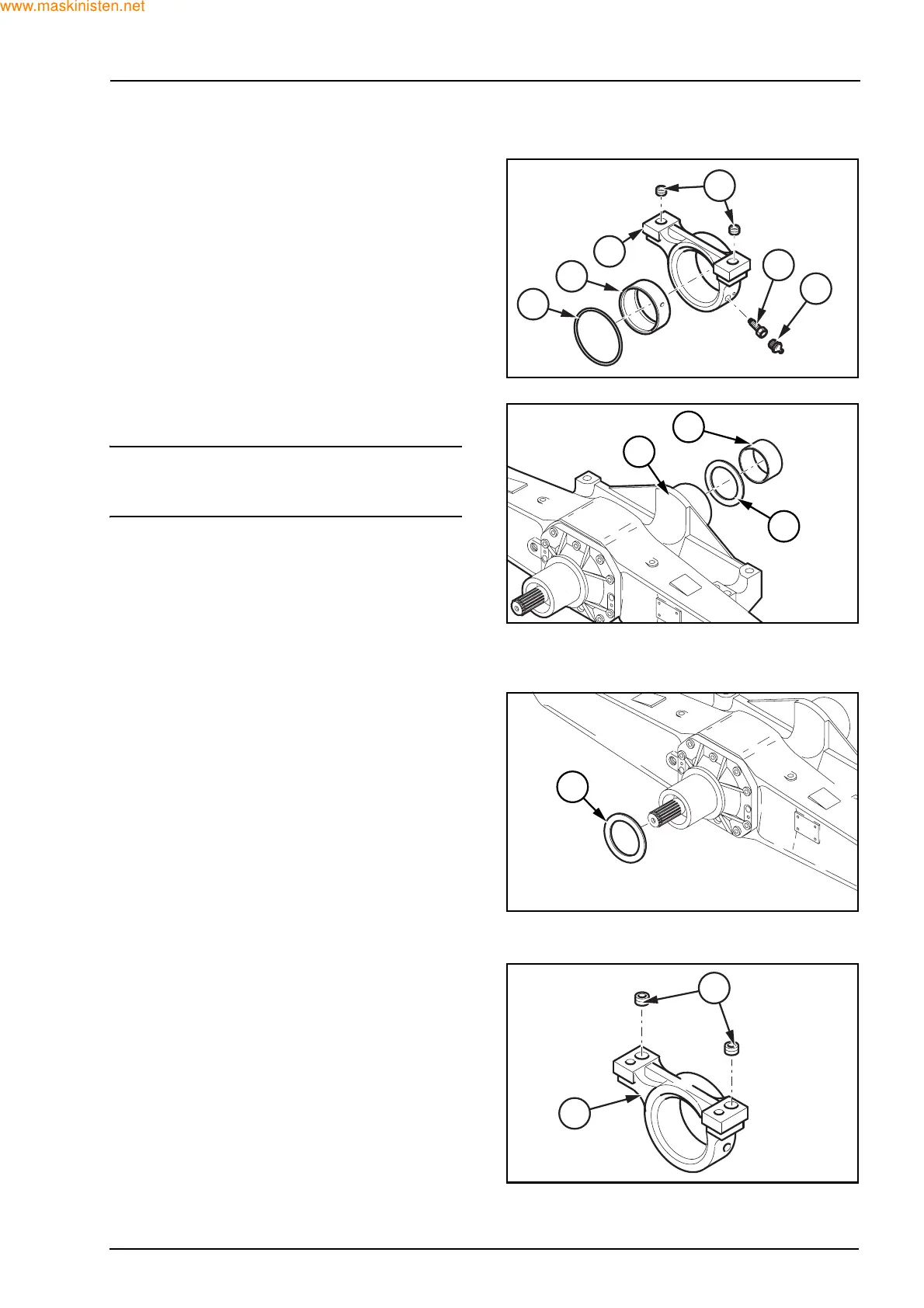

Remove the O-ring (22).
Remove the bolt (19) and the lube nibble (23).
Remove the bush (18) from the front support (20).
Remove the bushes (21) from front support (20).
Remove the bush (17) and the washer (16) from the
axle housing (15) only if necessary.
NOTE: it is advisable to heat the bush (17) to make
easy this operation; this is a destructive operation
for the bush.
Insert the washer (10) into the differential support.
Apply sealant on the bushes (6) contact surface.
Assemble the bushes (6) to the rear support (5) with
a pad and a hammer.
F27389
21
20
18
22
19
23
F27390
15
17
16
F27387
10
F27217
6
5
