88 SECTION 25 - FRONT AXLES
Assemble the bush (8) in the rear support (5).
SWARNING
Align the bush hole with the bolt (4) hole.
Mount the bolt (4).
Lubricate with grease a new O-ring (7).
Insert the O-ring (7) in the rear support (5).
Insert the rear support (5) on the differential support.
SWARNING
Do not damage the O-ring when inserting the rear
support on the central body.
Tighten the bolt (4) to the specified torque.
Assemble the lube nibble (9).
Insert the washer (16) into the front support seat.
Heat the bush (17) at 110÷120 °C then assemble it
to the axle housing (20).
NOTE: if necessary assemble the bush (17) with a
pad and a hammer.

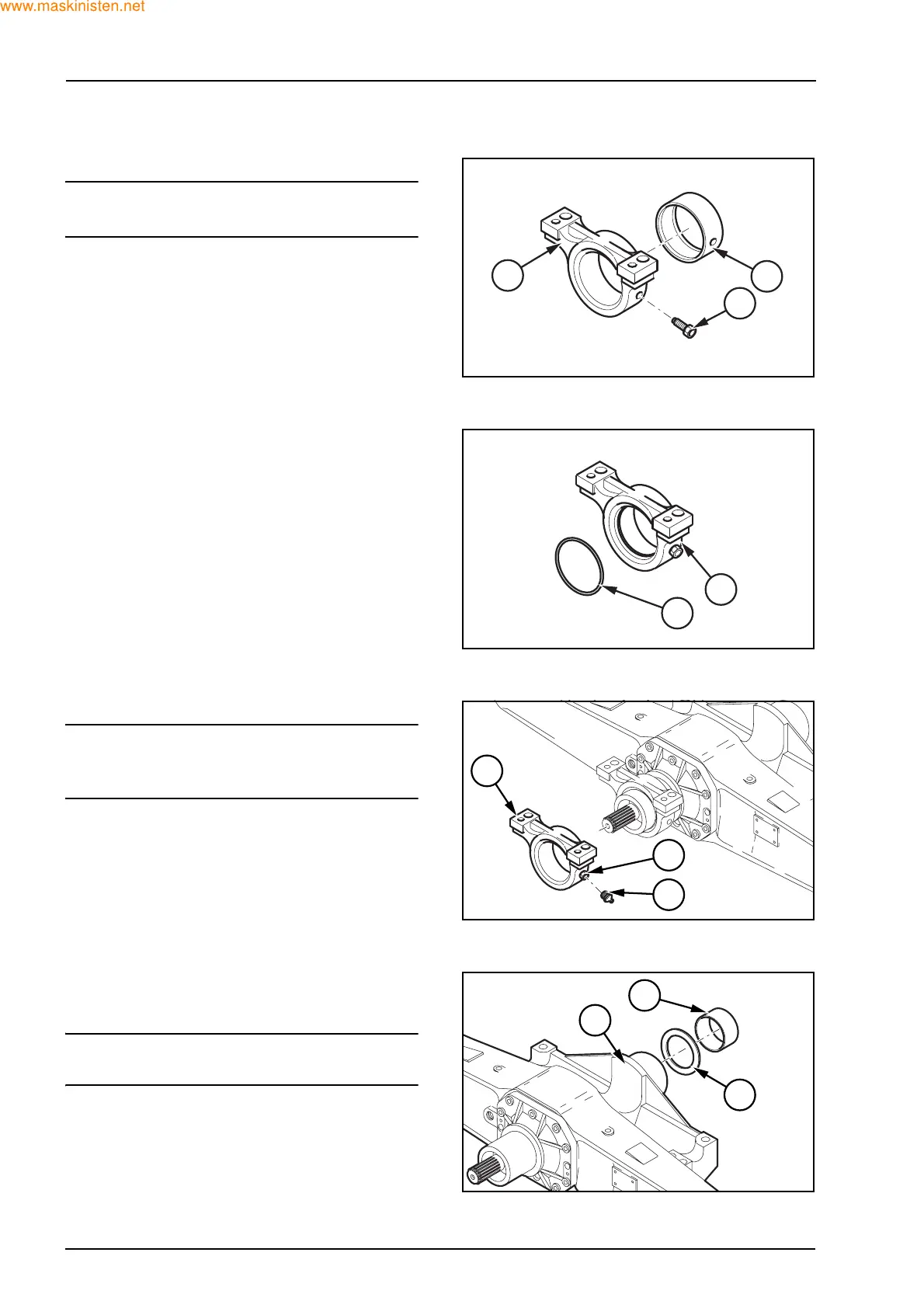

F27216
5
8
4
F27215
5
7
F27391
5
4
9
F27390
15
17
16
