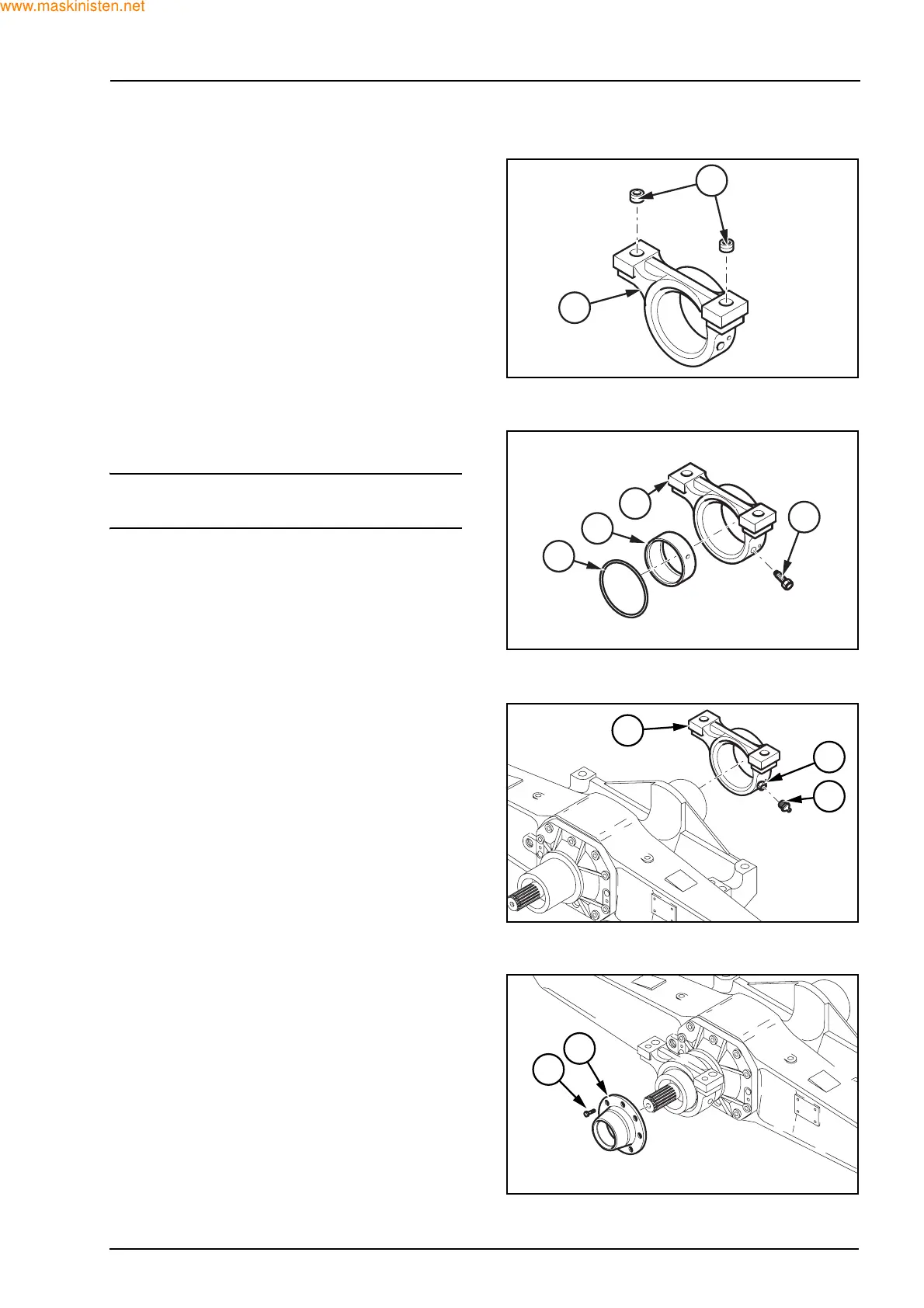

SECTION 25 - FRONT AXLES 89
Apply sealant on the bushes (21) contact surface.
Assemble the bushes (21) to the front support (20)
with a pad and a hammer.
Assemble the bush (18) into the front support (20)
with a suitable driver and a hammer.
SWARNING
Align the bush hole with the bolt (19) hole.
Mount the bolt (19).
Assemble O-ring (22).
Insert the front support (20) on the axle housing.
Tighten the bolt (19) to the specified torque.
Assemble the lube nibble (23).
Assemble the flange (12) and fasten by tightening
the screws (11).
F27224
21
20
F27393
20
18
22
19
F27394
20
19
23
F27383
12
11
