SECTION 25 - FRONT AXLES 101
Assembly

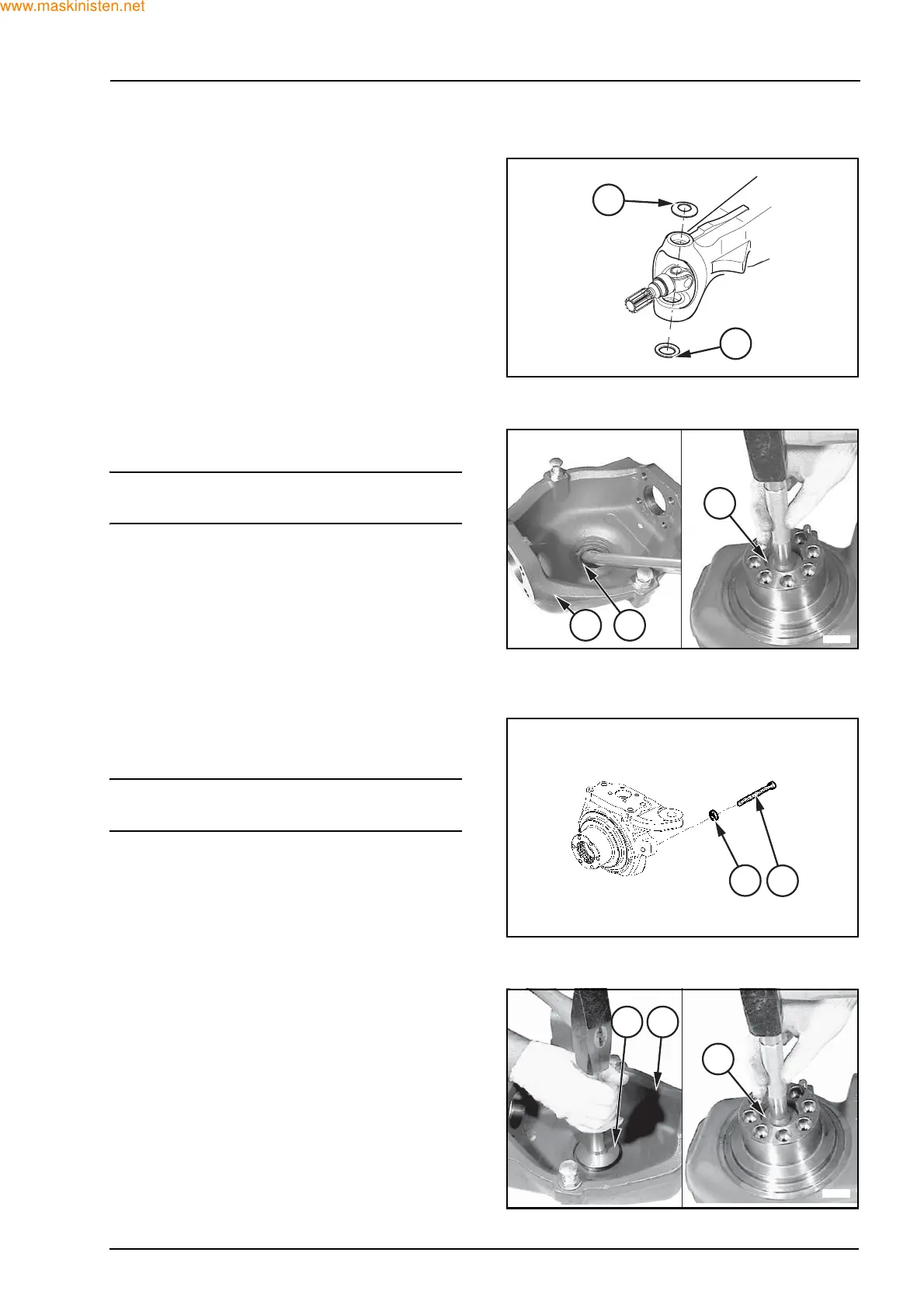

Collect the belleville washers (25) and (26).
Position the swivel housing (14) on a flat surface
and extract the seal ring (23) with a lever.
NOTE: this is a destructive operation for the seal
ring.
Turn the swivel housing and extract the bush (22)
using a suitable drift and a hammer.
If it has been previously removed, reassemble the
steering stop composed by the screw (21) and nut
(20).
NOTE: do not tighten the nut (20) until the steering
angle adjustment has been done.
Insert the bush into the swivel housing (14) with the
special tool 380002668 and a hammer or a press.
Insert the seal ring (23) into the swivel housing (14)
with the special tool 380002669 and a hammer.
Grease carefully the seal ring (23).
F27413
25
26
F27259
22
2314
F27260
20
21
F27261
1423
22
