102 SECTION 25 - FRONT AXLES

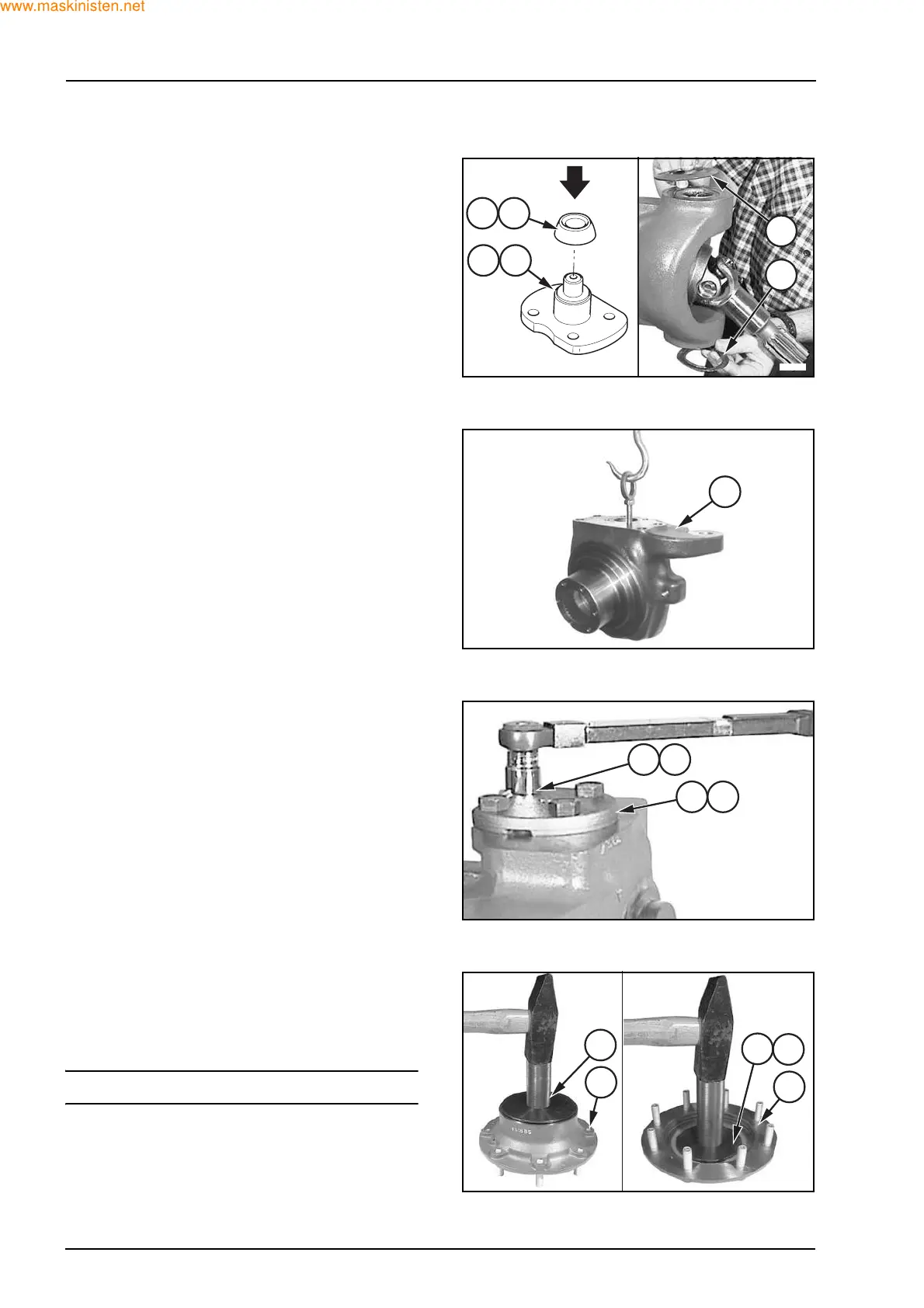

If ball joints (15) and (27) have been previously re-
moved, reassemble them on the lower (16) and up-
per king pin (18).
Grease carefully the seats of king pin (16) and (18)
with specific grease.
Position the Belleville washers (25) and (28) on the
king pin housings.
Secure the swivel housing (14) with a belt or a rope
to a hoist or to any other supporting device.
Protect the splined end of the axle shaft by winding
it with an adhesive tape to avoid damage to the seal
ring.
Assemble the king pins, the lower (16) and the up-
per (18), and tighten the retaining screws (17) and
(19) to the requested torque.
Assemble both bearing cups (9) and (12) to their
wheel hub (11) housings using the special tool
380002222 under a press or with a hammer.
Insert the seal ring (13) into the wheel hub (11) with
the special tool 380002213 and a hammer.
NOTE: do not lubricate the seal ring (13).
F27414
1618
15
26
25
27
F27257
14
F27263
16
17
18
19
F27525
13
11
9
11
12
