SECTION 25 - FRONT AXLES 103

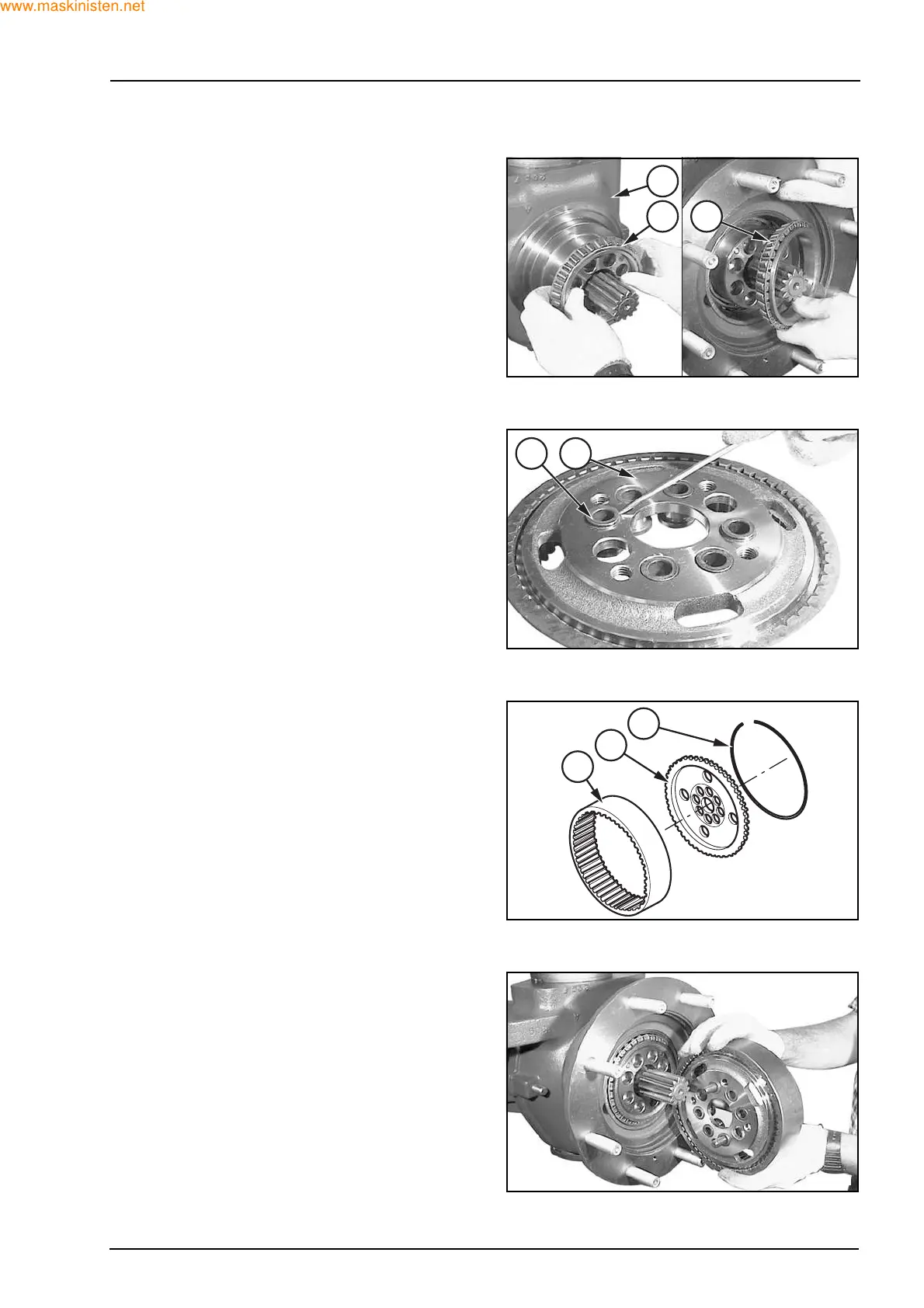

Assemble the bearing (12) onto the swivel housing
end (14).
Assemble the wheel hub (11) on the swivel housing
(14) and fit the bearing (9).
Position the ring gear carrier (7) on a workbench
and force the bushes (6) to the carrier (7) surface
level with the special tool 380002667.
At least two bushes (diametrically-opposed) should
be set slightly higher than the carrier surface level to
be used as dowel pins.
Preassemble the ring gear carrier (7) and the ring
gear (4) with the retaining ring (8).
Assemble the ring gear carrier assy on the wheel
hub using the two projecting bushes as dowel pins
and screw in the relevant screws in order to put the
ring gear in contact with the wheel hub.
F27265
12 9
14
F37835
6 7
F27267
7
4
8
F27268
