104 SECTION 25 - FRONT AXLES

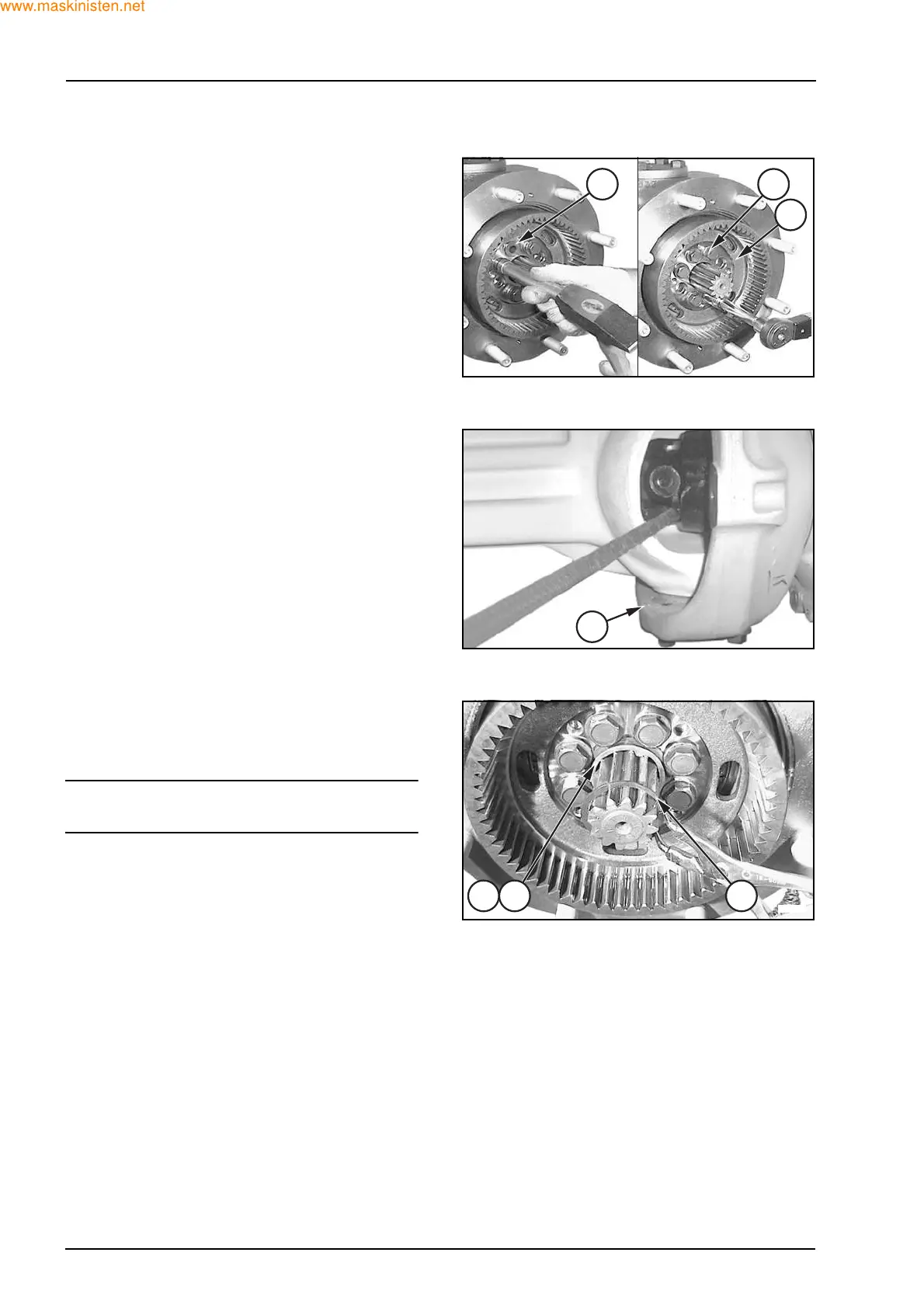

Completely insert all bushes (6) using the special
tool 380002667 and a hammer.
Apply sealant on fastening bolts (5) thread.
Assemble the screws (5) fastening the ring gear car-
rier (7) and tighten to the specified torque.
Insert a lever between the swivel housing (14) and
the axle shaft and fit into the cardan shaft.
With the lever, push the cardan shaft in the direction
of the wheel hub to allow an easier fitting of the snap
ring.
Assemble the thrust washers (2) and (3) on the end
of the cardan shaft.
Insert the snap ring (1) on the end of the splined hub
and push it into its seat.
NOTE: check that the snap ring (1) is correctly fitted
in its seat.
