106 SECTION 25 - FRONT AXLES
Assembly

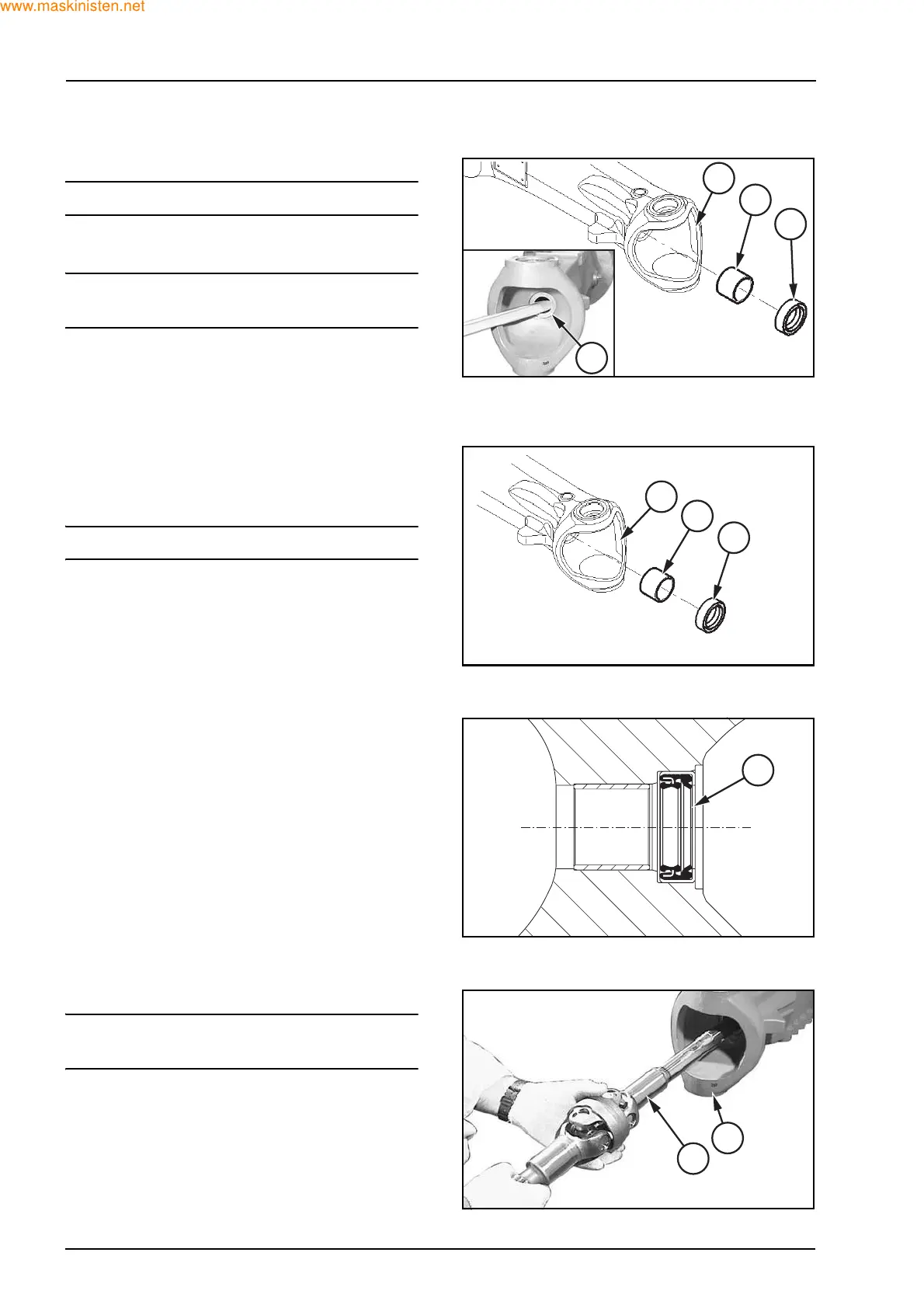

Remove the seal rings (3) from the axle beam (1).
NOTE: destructive operation for the seal rings (3).
Remove the bush (2) from the axle beam (1) only if
the wear conditions require this.
SWARNING
Be careful not to damage the bush seat.
Assemble the bush (2) on the axle beam (1) with the
special tool 380002226 and a hammer.
Assemble the seal ring (3) on the axle beam with the
special tool 380002670 and a hammer.
NOTE: grease carefully the seal rings.
Assemble the seal ring (3).
Insert the cardan shaft (4) into the axle shaft (1).
SWARNING
Be careful not to damage the seal ring.
1
3
2
3
F27419
2
1
3
F27420
F27421
3
6
1
F27273
