SECTION 25 - FRONT AXLES 109

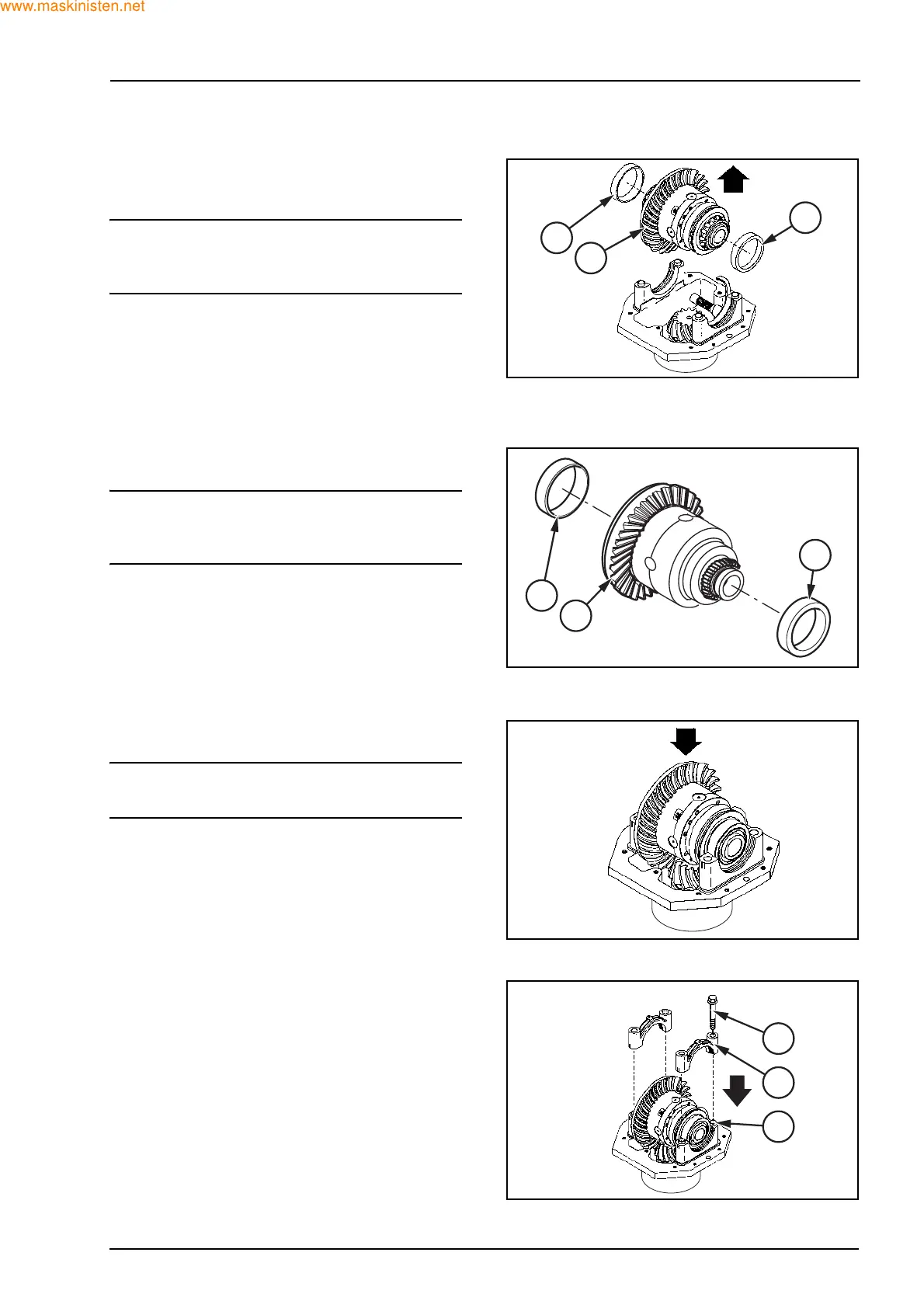

Assembly
Remove differential unit (5).
Remove the bearing (4) and (6) together with the dif-
ferential assy.
SWARNING
Do not invert the bearing cone if the bearings are not
replaced.
Assemble the bearings (4) and (6) on the differential
assy (5).
SWARNING
Do not invert the bearing cones if the bearings are
not replaced.
Assemble the differential assy complete with bear-
ings on the differential carrier.
SWARNING
Check the correct assembly side of the ring gear.
Move the differential assy so that the ring gear is
placed against the pinion.
Check that all bushes (10) are in their housings and
position both half collars (11) on their seats using
the previously traced reference marks.
Lock both half collars with their fastening screws
(12).
F27425
4
6
5
F27289
4
6
5
F27427
F27428
12
11
10
