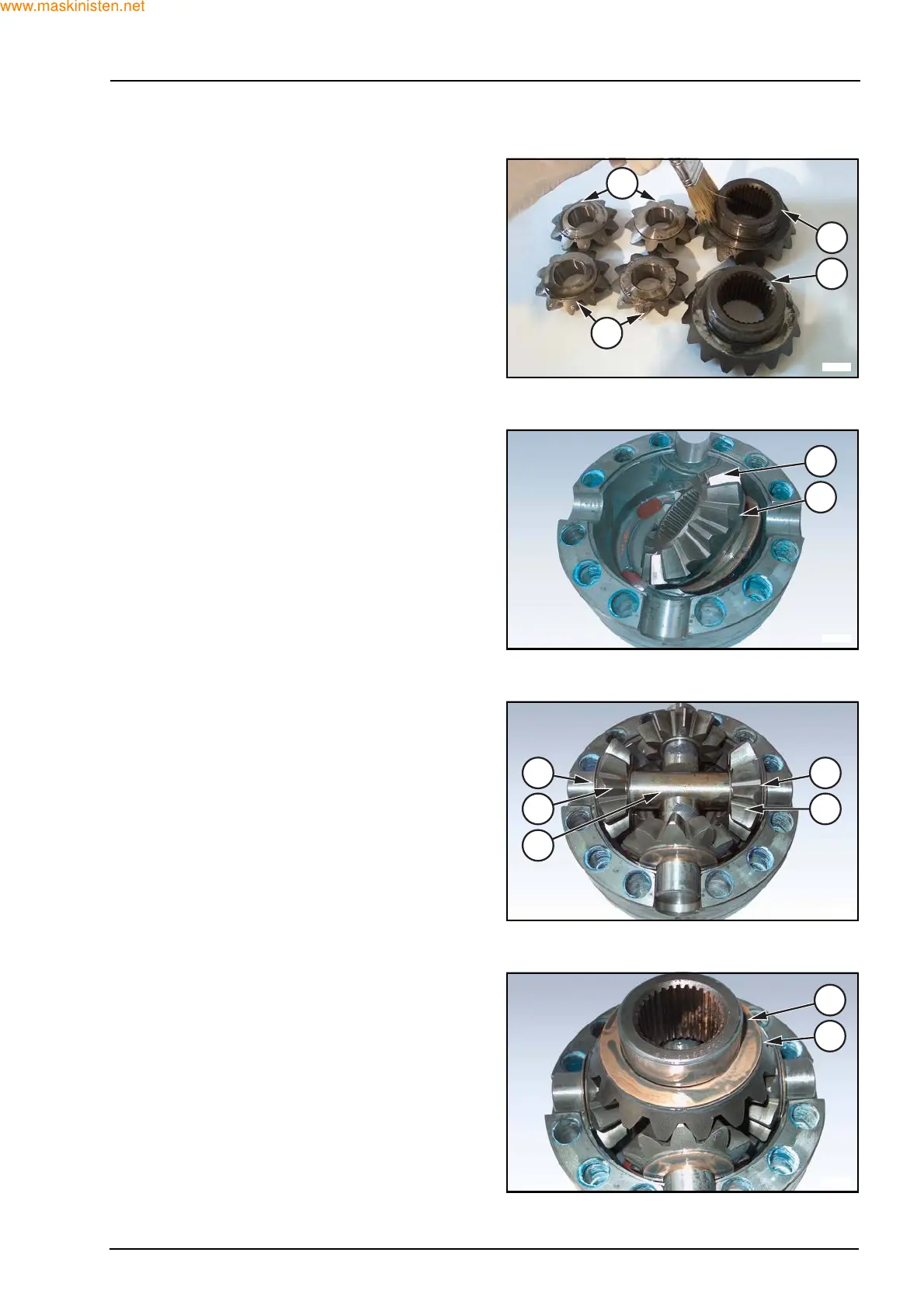

Apply a thin layer of Molicote G-n plus on the gears
(5) and (12) and on the gears (7).
Assemble the gear (12) and the shim (13).
Position the shaft (8), the gears (7) and the spherical
washers (6).
Assemble the gear (5) and the shim (4).
