SECTION 02 - TECHNICAL SPECIFICATIONS 27
695SR (SIDESHIFT)
Lifting capacity in normal operating mode - SAE
rated

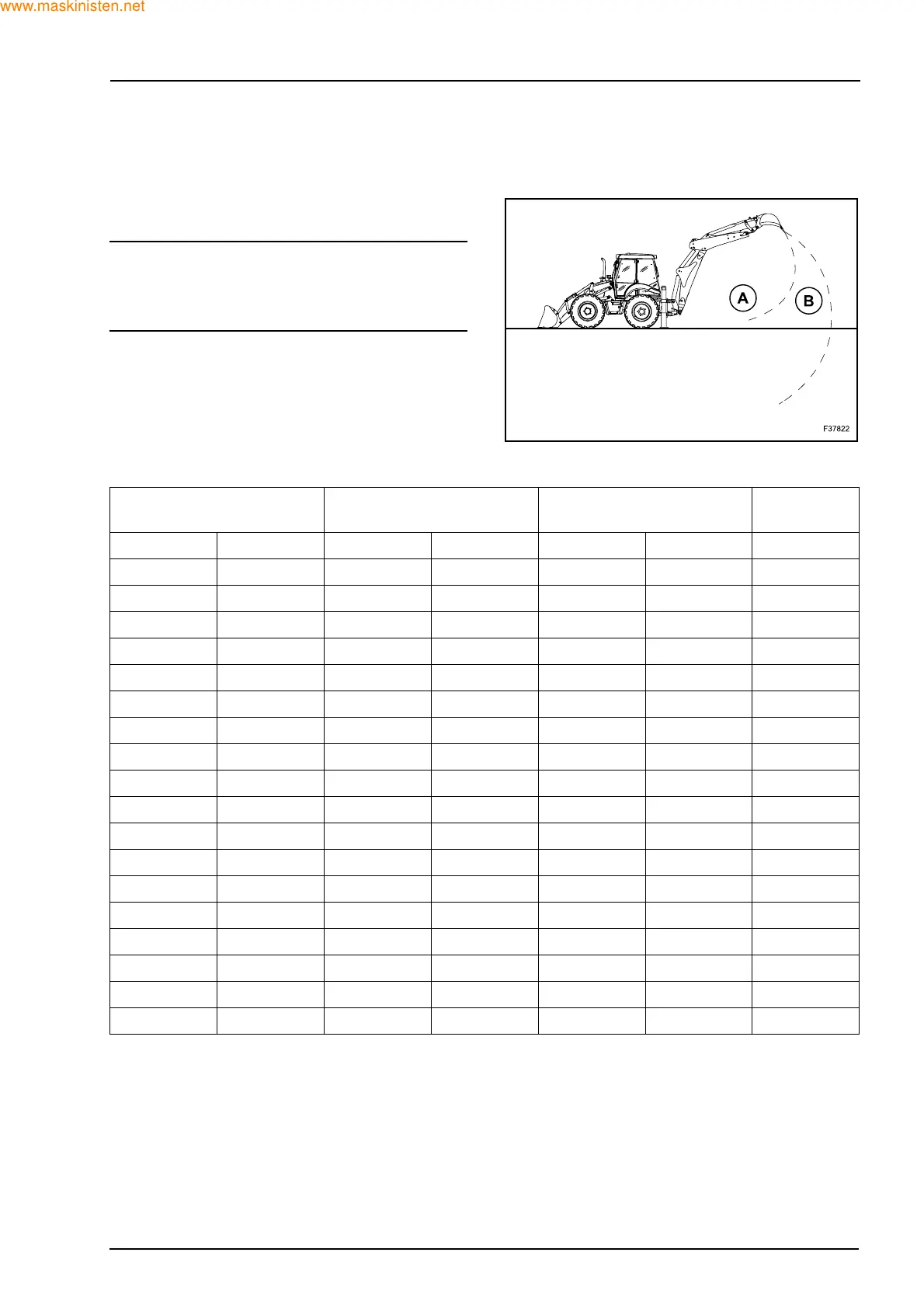

The following table reports the lifting capacities of the
dipper (A) and the boom (B).
NOTE: the capacities indicated may slightly vary
from one machine to another, according to the ac-
cessories mounted, the pressure settings and the
market requirements.
Lifting capacities are given in kg for a standard dip-
per and a telescopic dipper.
Standard dipper
Telescopic dipper
(retracted)
Telescopic dipper
(extended)
Height/Depth
Dipper - A Boom - B Dipper - A Boom - B Dipper - A Boom - B m
570 +5.4
1120 1040 865 +4.9
1520 1415 1510 1000 +4.3
2325 1650 2215 1535 1610 1070 +3.6
2260 1680 2150 1560 1645 1105 +3.0
2300 1675 2190 1550 1670 1120 +2.4
2480 1660 2360 1530 1760 1125 +1.8
3015 1630 2885 1500 1885 1130 +1.2
4400 1605 4230 1470 2135 1125 +0.6
1580 1440 3250 1125 0 (ground)
1560 1415 4420 1120 -0.6
1550 1400 1125 -1.2
1550 1400 1130 -1.8
1575 1415 1145 -2.4
1660 1490 1180 -3.0
2025 1815 1245 -3.6
1420 -4.2
2155 -4.8
