28 SECTION 02 - TECHNICAL SPECIFICATIONS
695SR (CENTER PIVOT)
Lifting capacity in normal operating mode - SAE
rated

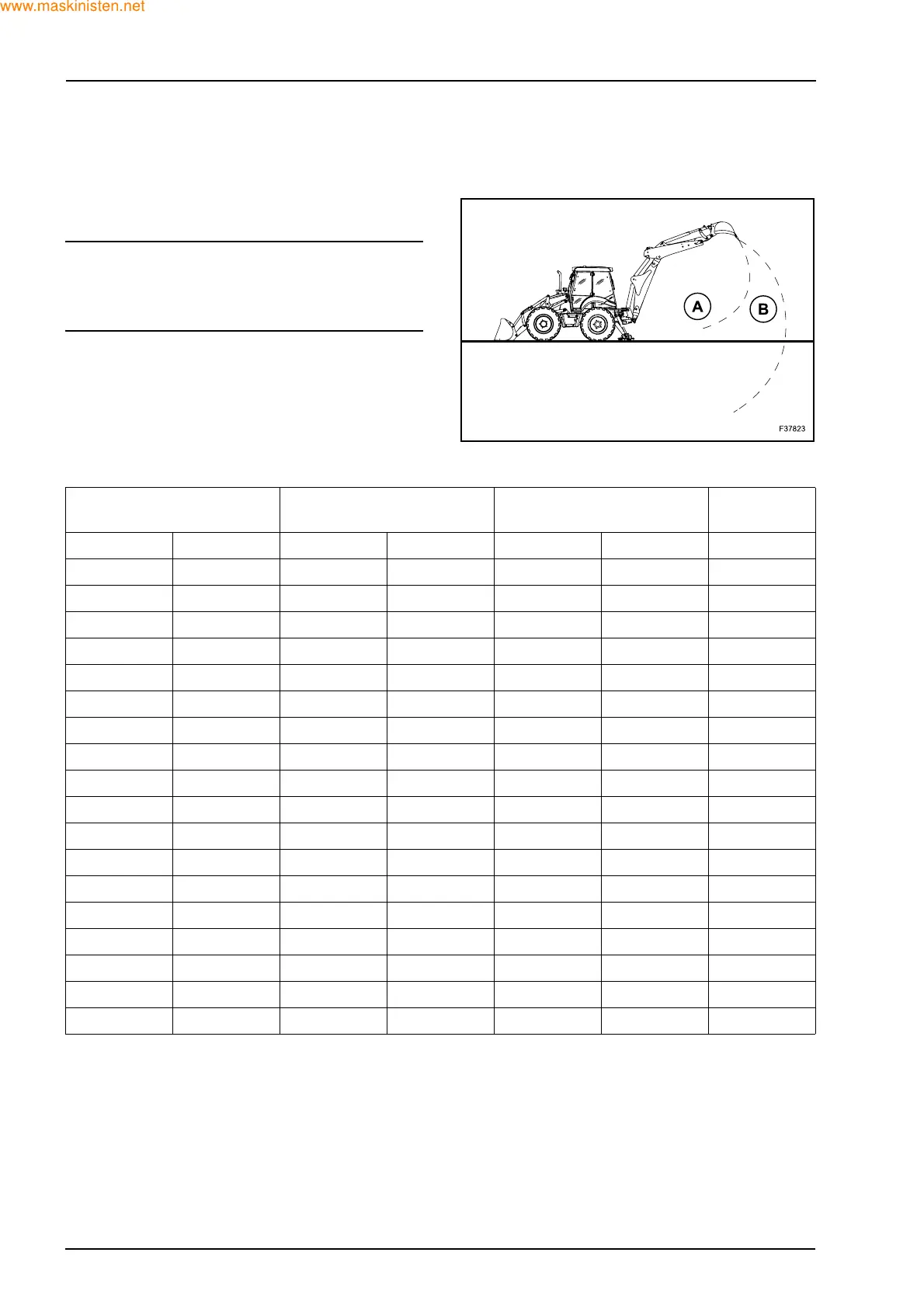

The following table reports the lifting capacities of the
dipper (A) and the boom (B).
NOTE: the capacities indicated may slightly vary
from one machine to another, according to the ac-
cessories mounted, the pressure settings and the
market requirements.
Lifting capacities are given in kg for a standard dip-
per and a telescopic dipper.
Standard dipper
Telescopic dipper
(retracted)
Telescopic dipper
(extended)
Height/Depth
Dipper - A Boom - B Dipper - A Boom - B Dipper - A Boom - B m
605 +5.4
1075 990 905 +4.9
1470 1365 1460 950 +4.3
2270 1600 2165 1485 1560 1020 +3.6
2195 1630 2090 1510 1595 1055 +3.0
2240 1625 2135 1500 1620 1070 +2.4
2445 1610 2330 1480 1700 1075 +1.8
3090 1580 2960 1450 1835 1080 +1.2
4960 1555 4790 1420 2080 1075 +0.6
1530 1390 3425 1075 0 (ground)
1510 1365 5065 1070 -0.6
1500 1350 1075 -1.2
1500 1345 1080 -1.8
1525 1365 1090 -2.4
1610 1440 1130 -3.0
1970 1760 1195 -3.6
1370 -4.2
2105 -4.8
