SECTION 27 - REAR AXLE 9
DIFFERENTIAL REMOVAL

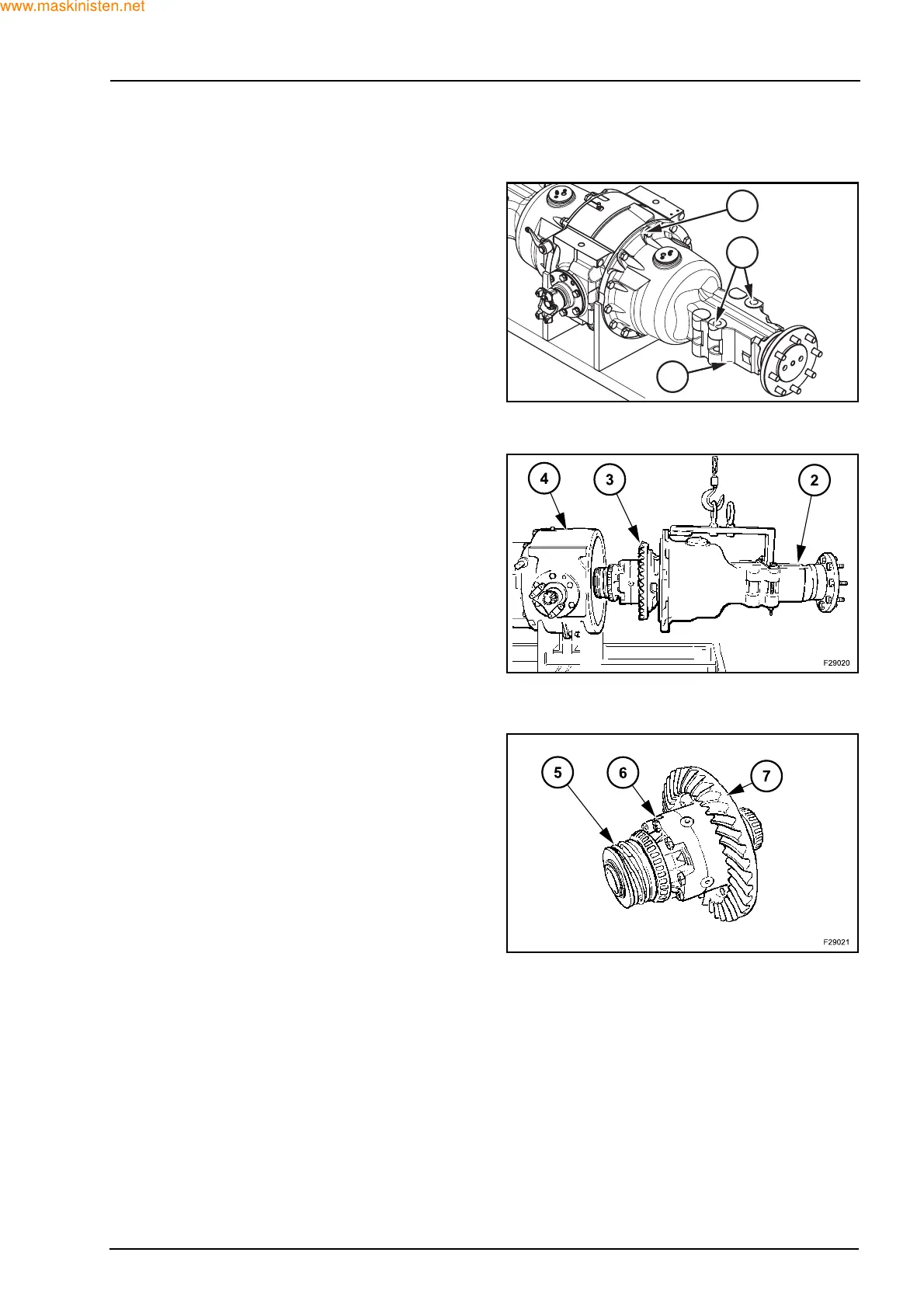

Unscrew the upper screw (1). Use the hole of this
screw and holes (A) to install tool 380000990 for the
lifting of half-beam housing (2).
Unscrew and remove the remaining screws (1).
Remove the left housing of the half-beam (2) with
the differential (3) using the tool 380000990, from
the axle central body (4).
At this point it is possible to remove from the left
housing of the half-beam the differential group assy.
The differential consists of:
Z differential lock spring (5);
Z differential housing (6);
Z crown wheel (7).
1
A
2
F29552
