10 SECTION 27 - REAR AXLE

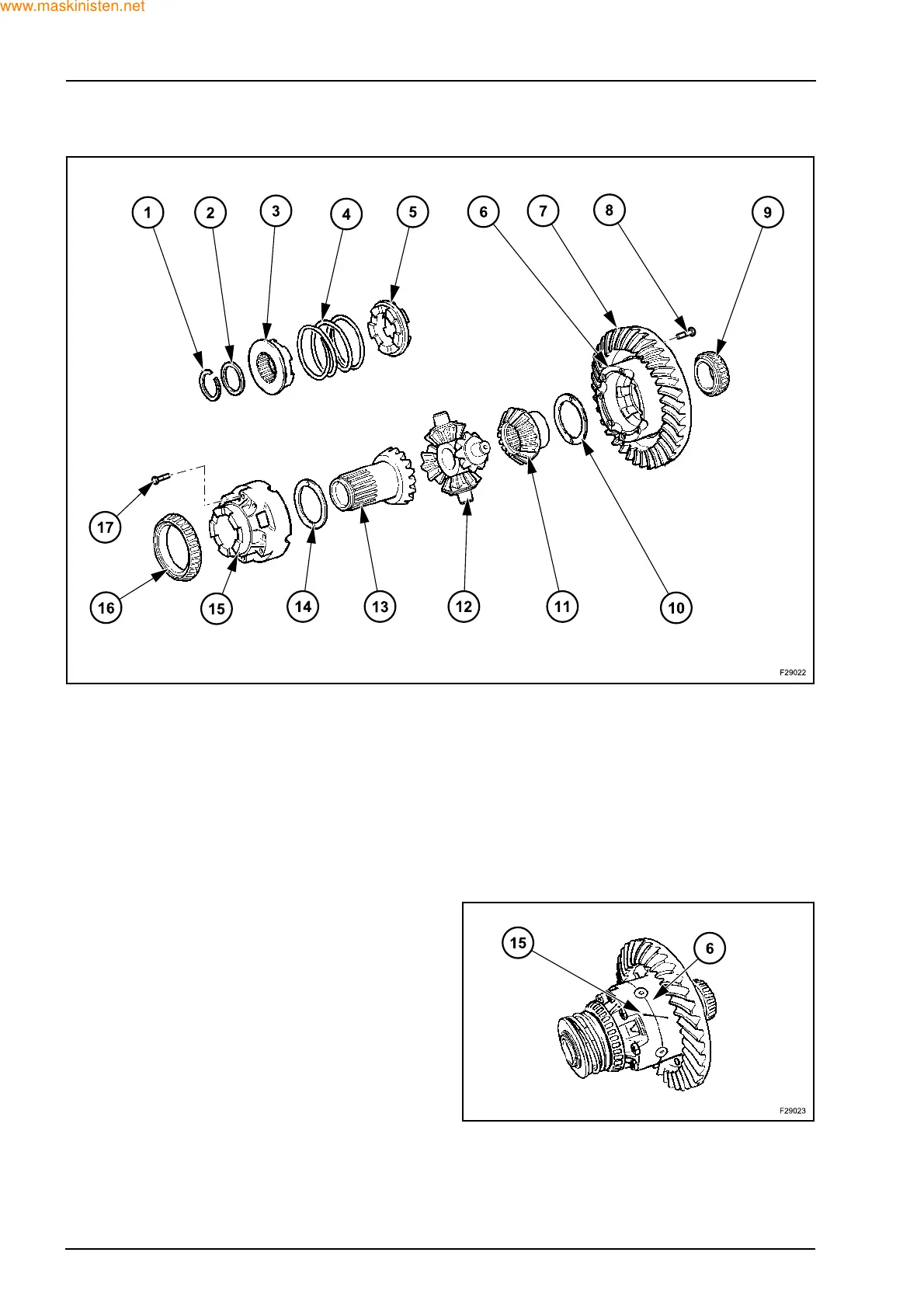

DIFFERENTIAL DISASSEMBLY
1. Safety ring
2. Washer
3. Dog gear
4. Spring
5. Dog
6. Differential half housing
7. Crown wheel
8. Screw
9. Bearing
10. Thrust washer
11. Side gear
12. Spider assembly
13. Side gear
14. Thrust washer
15. Differential half housing
16. Bearing screw
Prior to separating the differential, mark the two half
housings (6) and (15) to ensure correct reassembly.
Replace the differential lock coupling and adaptor if
worn or damaged.
