12 SECTION 27 - REAR AXLE

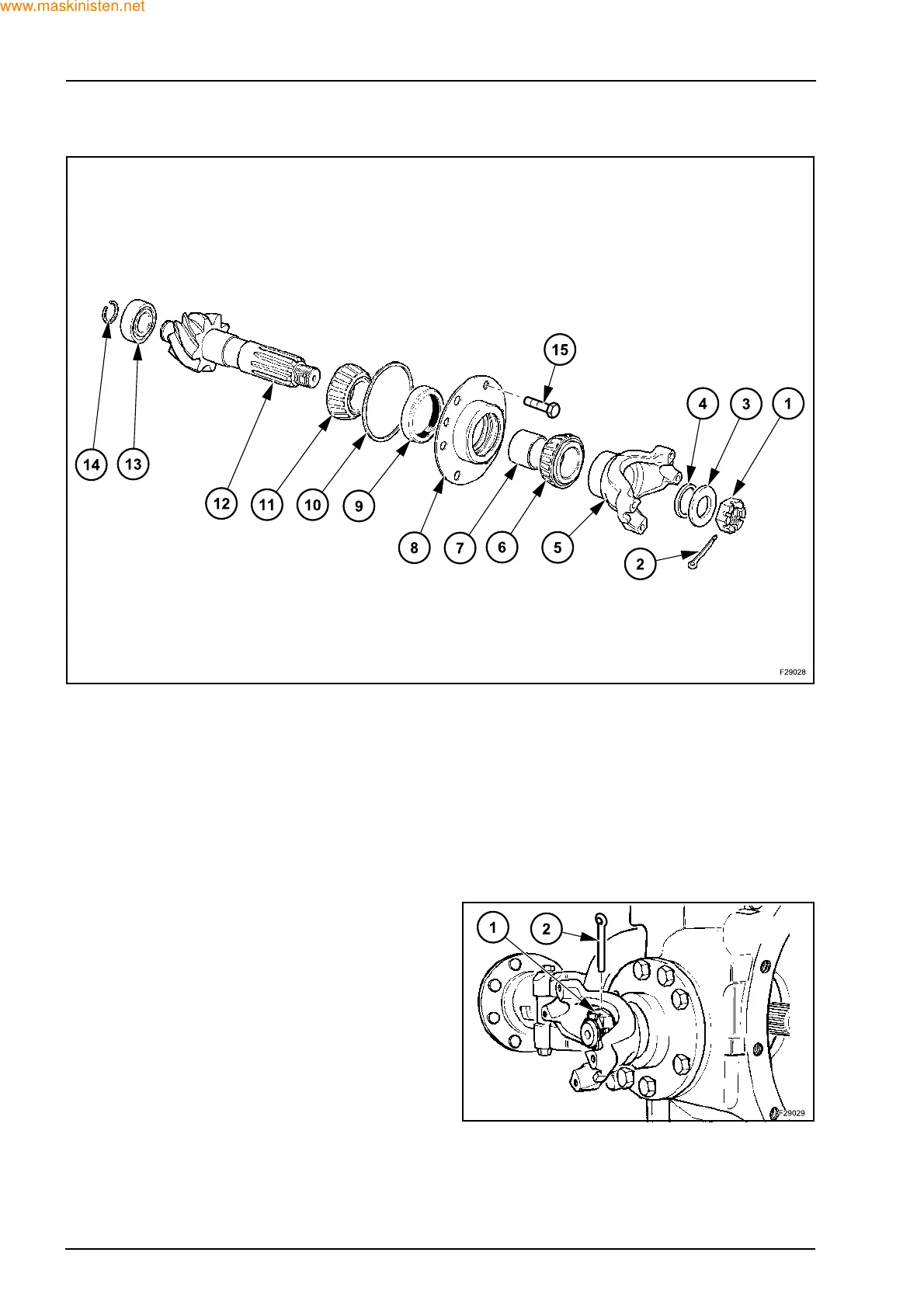

PINION REMOVAL
1. Ring nut
2. Lock pin
3. Washer
4. Seal
5. Coupling
6. Bearing
7. Spacer
8. Flange
9. Disc
10. Seal
11. Bearing
12. Pinion
13. Bearing
14. Safety ring
15. Screw
Remove the lock pin (2) to unlock the ring nut (1).
