SECTION 27 - REAR AXLE 13

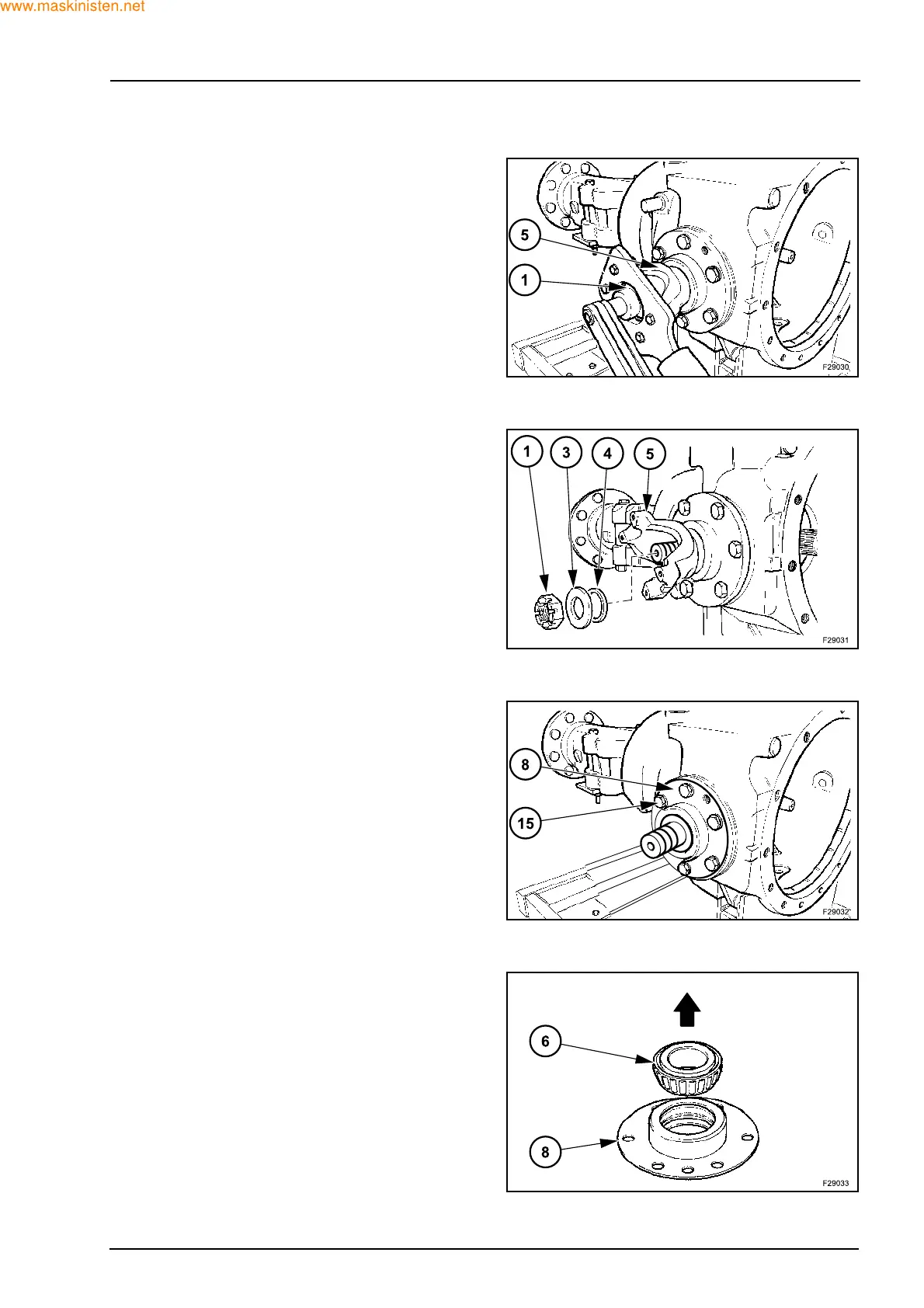

Using the special tool 380002675 hold the coupling
(5) steady while loosening the ring nut (1).
Remove the ring nut (1), the washer (3) and the gas-
ket (4).
Remove the coupling (5).
Loosen and remove the screws (15).
Remove flange (8).
Remove the bearing (6) from the flange (8).
