16 SECTION 27 - REAR AXLE

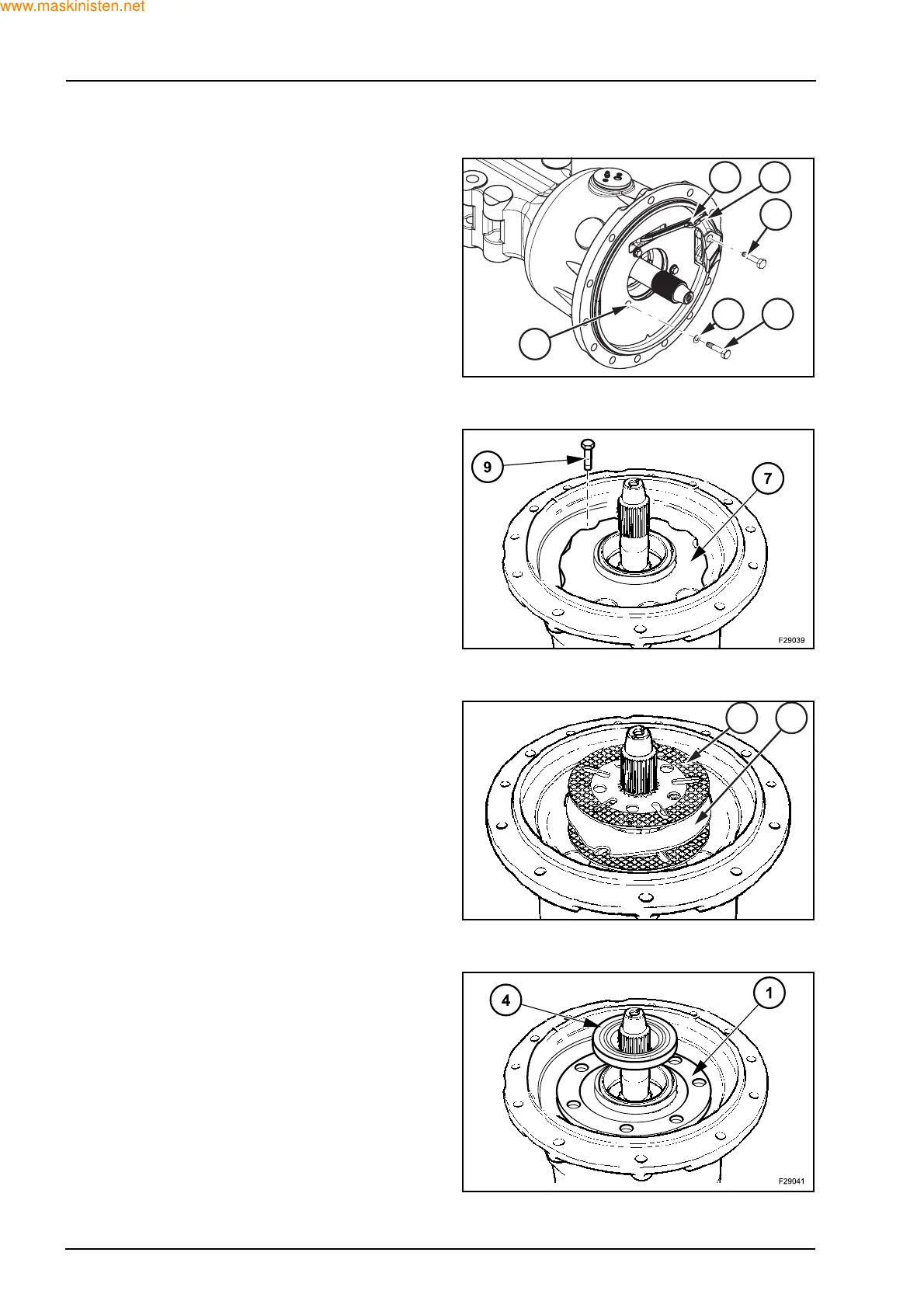

Unscrew and remove the screws (17) then disas-
semble the block (11) with the shims (10).
Loosen and remove the screws (9). Remove the
housing brake inner (7).
Remove the brake pads (6) and the intermediate
disks (5).
Remove the brake piston (4) and the outer housing
brake (1).
10 11
17
1312
8
F29556
6 5
F29557
