Case 580SR+ - Page 507

SECTION 27 - REAR AXLE 15

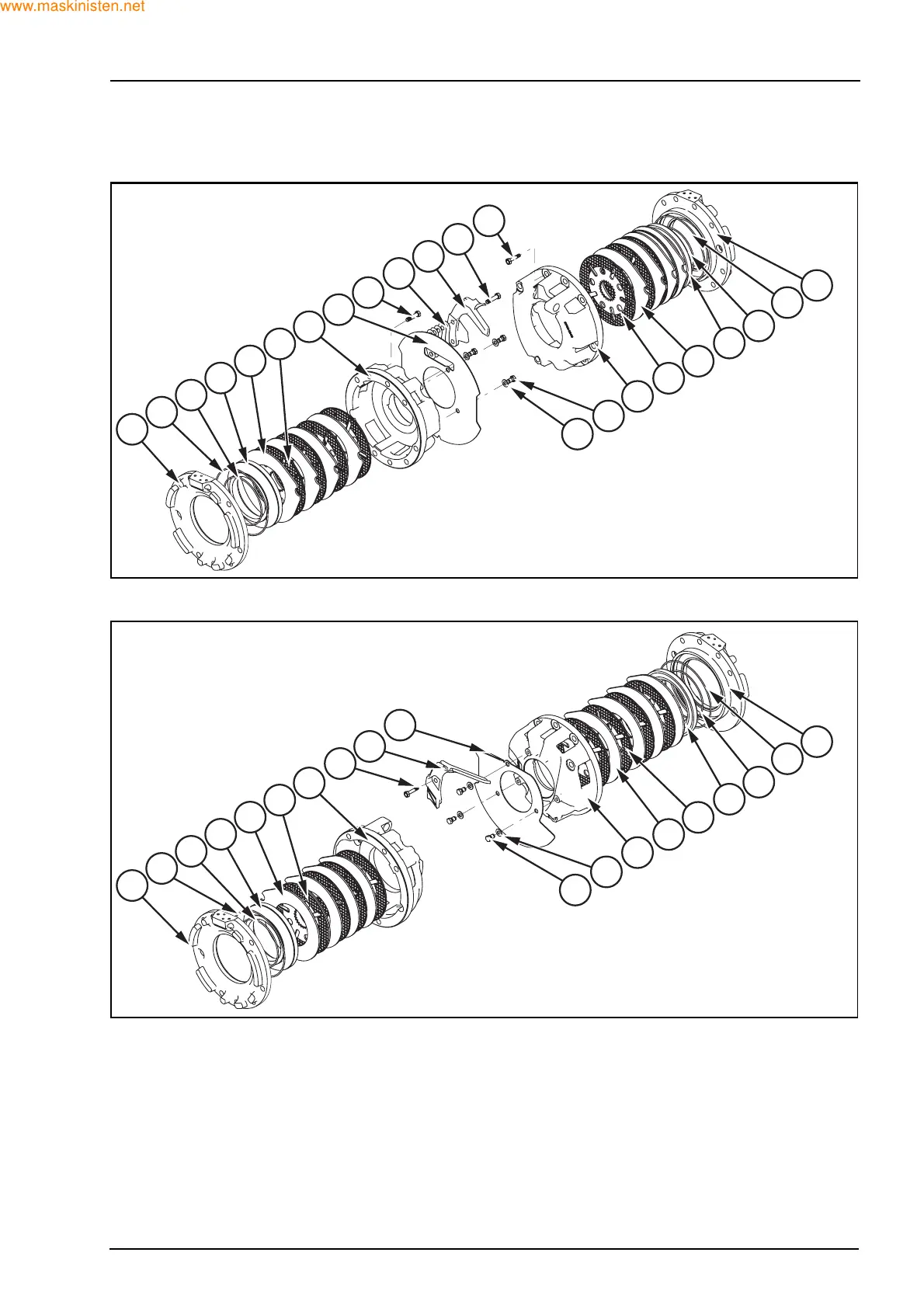

BRAKE GROUP DISASSEMBLY
Powershuttle
Powershift
1. Housing brake outer
2. O-ring
3. O-ring
4. Piston brake
5. Disc brake intermediate
6. Disc brake
7. Housing brake inner
8. Baffle oil (powershuttle)
9. Screw
10. Shim
11. Block (powershuttle)
12. Washer
13. Screw
14. Screw
15. Housing brake inner
16. Housing brake outer
17. Screw
18. Baffle oil (powershift)
19. Block (powershift)
20. Screw
F29554
1
2
3
4
5
6
7
LH
RH
8
9
10
11
17
14
15
6
12
13
5
4
3
2
16
F29555
16
2
3
4
5
6
15
LH
RH
20
19
18
7
5
13
12
6
4
3
2
1
