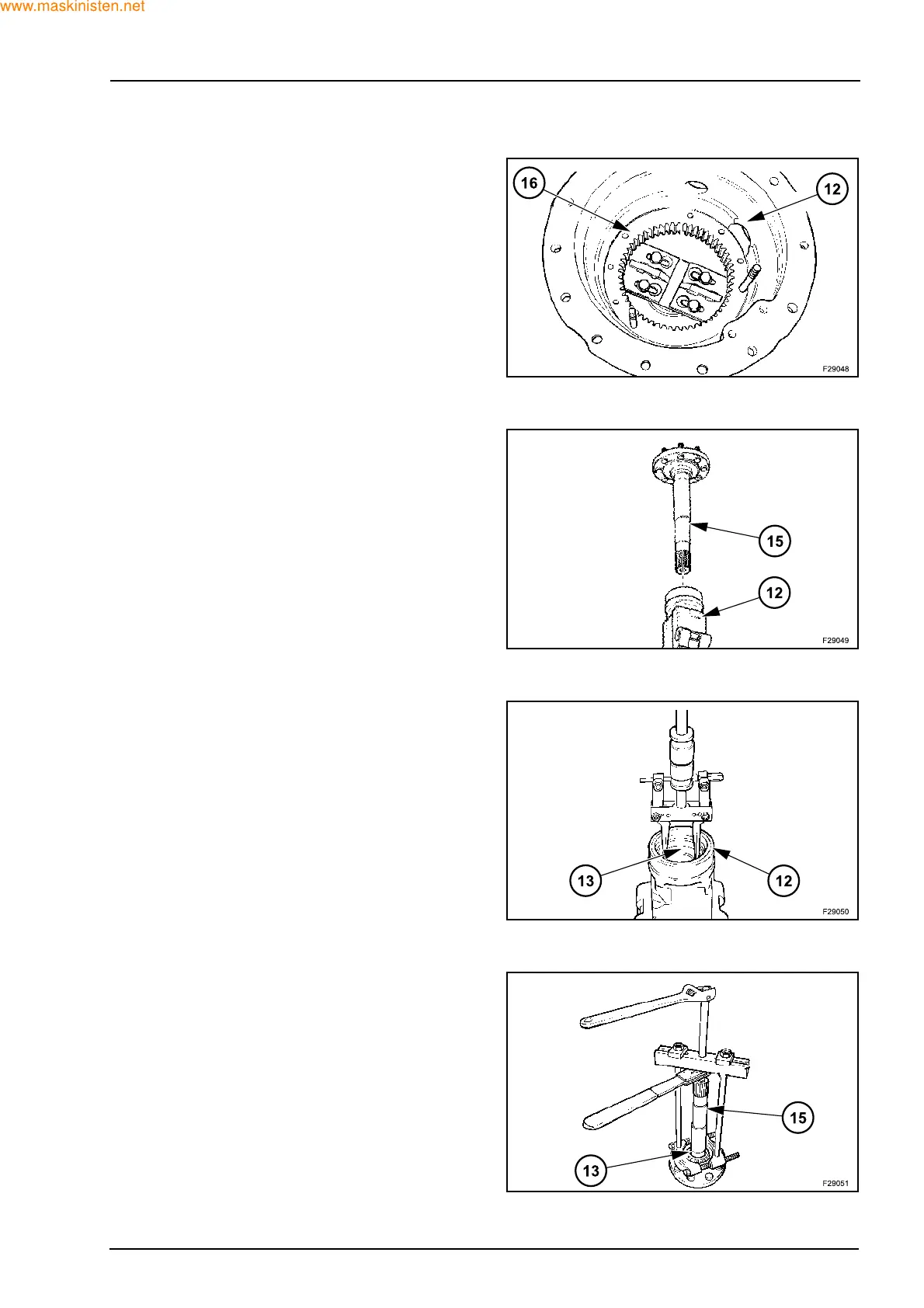

SECTION 27 - REAR AXLE 19
The ring gear (16) can be removed from the axle
(12) with the aid of tool 380000816. Position the tool
beneath the ring gear, expand the plates and tighten
the screws. Invert the axle and press out the gear
from the wheel hub side.
Inspect the gear for wear, scoring or damage and
repair or replace.
Position the axle housing (12) to allow removal of
the shaft with wheel hub (15).
Using the puller tool 380000986 and the slide ham-
mer 380000987, remove the bearing cups (13) from
the axle housing (12).
By means of extractor 380002676 remove the bear-
ing (13) from the axle shaft (15).
Applying gradual pressure to the tool, the bearing
will separate from the half axle.
Inspect the bearing for wear, scoring or damage and
replace if in any doubt.
