36 SECTION 27 - REAR AXLE
Assembly

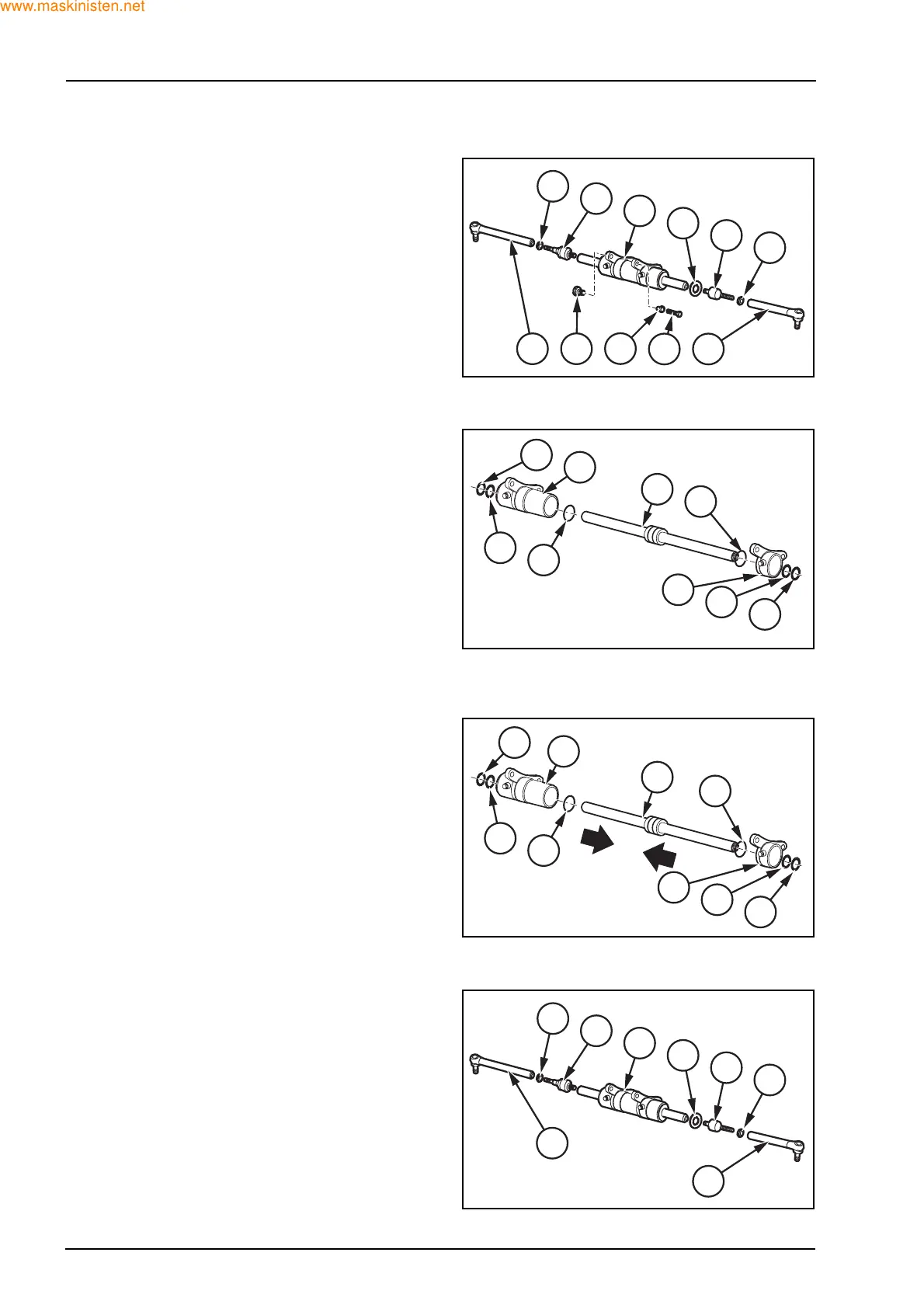

Remove the tie rods (3) and (13) by loosening the
nuts (4) and (12) with a suitable wrench, then check
their conditions.
Unscrew the fastening screws (6) and (9) and take
the steering cylinder (7) out of its housing, if neces-
sary use a rubber hammer.
Remove only parts that need to be overhauled and/
or replaced.
Remove the cylinder head (22) from the cylinder
body (18) and remove it from the rod (20).
Remove the rod (20) from the cylinder body (18).
Remove all the seals and O-rings (16, 17, 19, 21, 23
and 24) from the cylinder body (18), the cylinder
head (22), and the rod (20).
Assemble new seals and O-rings (16, 17, 19, 21, 23
and 24) on the cylinder head (22), on the rod (20)
and on the cylinder body (18).
Assemble the tie rods (3) and (13), the ball joints (5)
and (11), the nuts (4) and (12) to the ends of the rod,
then tighten with a dynamometric wrench to the re-
quested torque.
F28014
3
4
5
7
10
11
12
6
8
9
13
F28015
16
18
20
21
17
19
22
23
24
F28016
16
18
20
21
17
19
22
23
24
F28017
3
4
5
7
10
11
12
13
