SECTION 27 - REAR AXLE 37

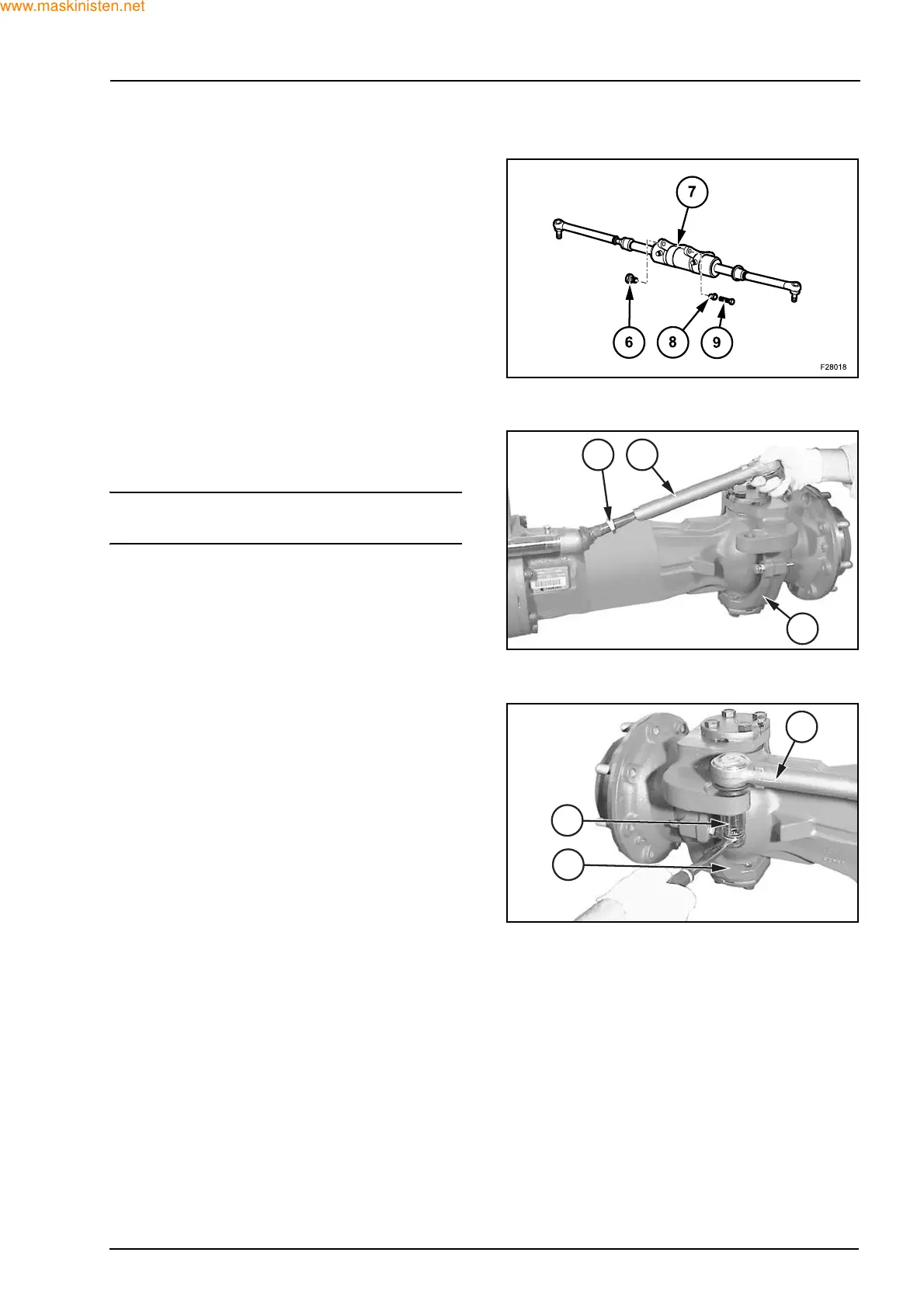

Install the steering cylinder (7) already assembled
on the central body.
Assemble and tighten the screws (6) and (9) to the
specified torque.
Align the swivel housing (14) with the axle.
Screw in the tie rod (13) so that its ball joint can be
inserted into the swivel housing arm (14).
NOTE: it is important to unscrew the locknut (12) to
carry out this operation.
Repeat the whole sequence of the mentioned oper-
ations to the other side.
Insert the ball joint of the tie rod (3) into its housing
in the swivel housing (2).
Assemble and tighten the locknut (1) to the specified
torque.
Repeat the whole sequence of the mentioned oper-
ations to the other side.
F28020
1312
14
F27236
1
2
3
