46 SECTION 27 - REAR AXLE

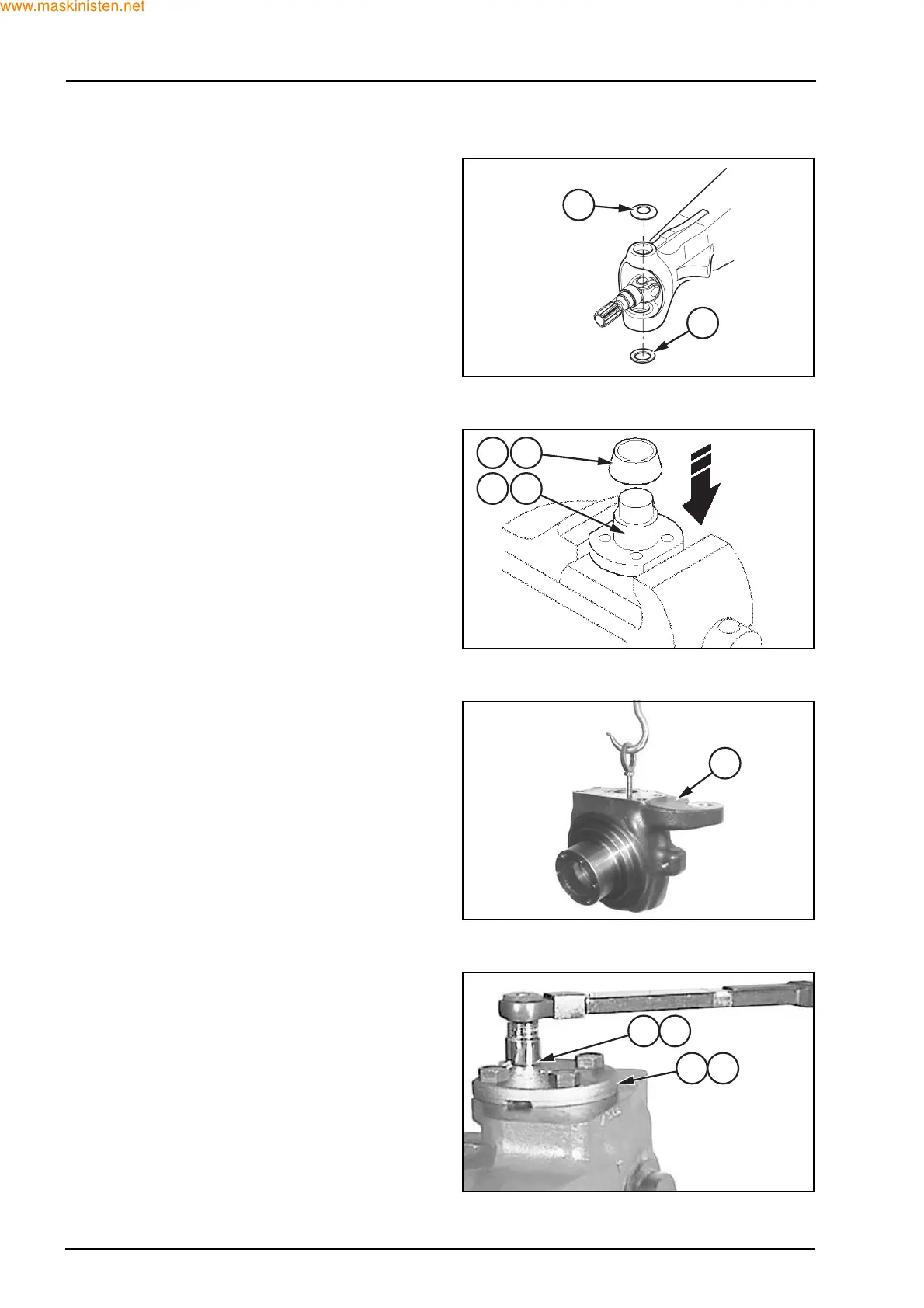

Grease well the king pin housings with specific
grease.
Position the belleville washers (23) and (29).
If previously removed, assemble the king pins (24)
and (27) onto the king pins (16) and (18).
Secure the swivel housing (14) with a belt or a rope
to a hoist or to any other supporting device.
Protect the splined end of the axle shaft by winding
it with an adhesive tape to avoid damage to the seal
ring.
Assemble the king pins, the lower (16) and the up-
per (18), and tighten the retaining screws (17) and
(19) to the requested torque.
F28046
23
28
F28027
27
16
24
18
F27257
14
F27263
16
17
18
19
